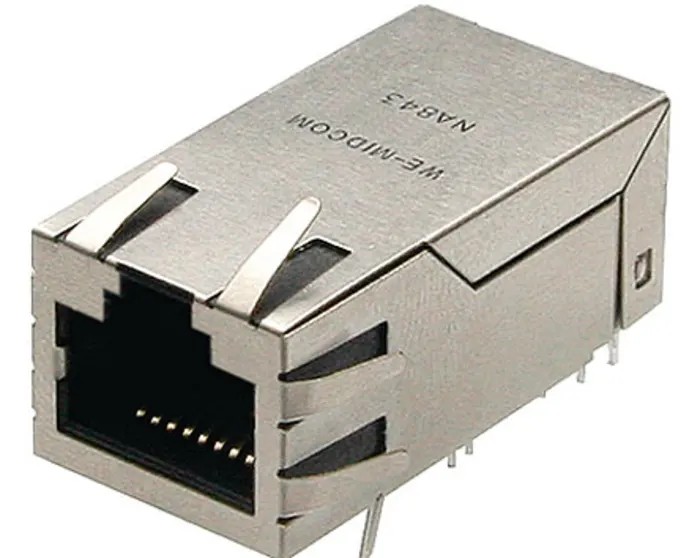

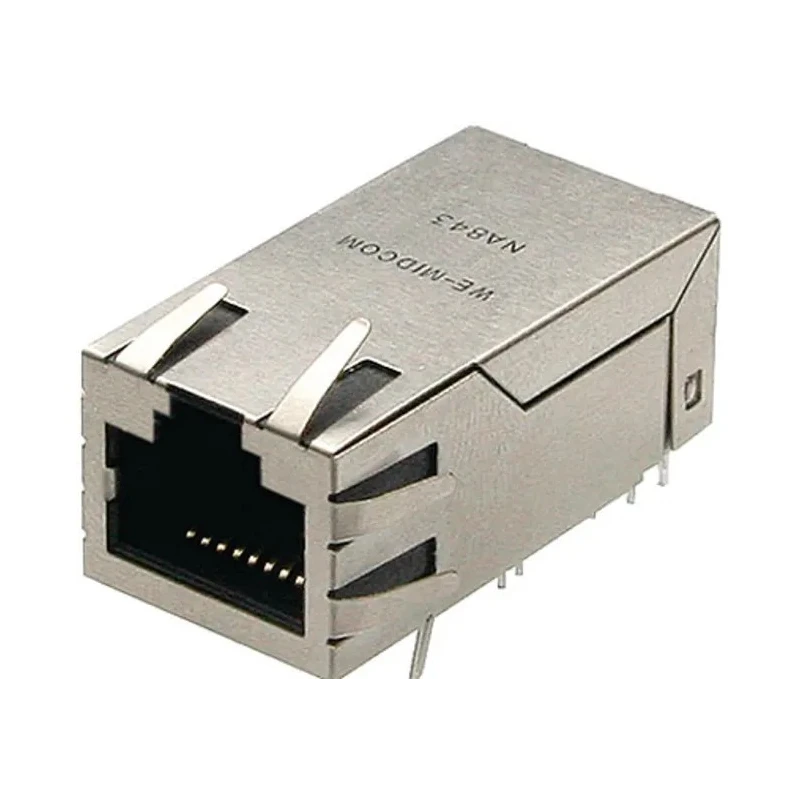

Wurth Elektronik LAN Ethernet Transformer PCB Mount 1 Output 350μH 1:1 Turns Ratio 17.02mm Length 13.87mm Width 7499511002A

Wurth Elektronik 7499511002A LAN Ethernet Transformer is a specialized PCB-mounted component designed to provide high-quality signal transformation for Ethernet network interfaces. It features a single output and an inductance value of 350μH combined with a precise 1:1 turns ratio, ensuring optimal signal fidelity and minimal insertion loss of -1dB. The component is engineered for professional embedded computing, modem, hub, router, and switch applications, supporting frequencies from 1MHz to 100MHz, making it suitable for high-speed data communication systems.

This transformer operates reliably within a temperature range of -40°C to 85°C, accommodating challenging industrial and commercial environments. Its compact dimensions of 17.02mm in length and 13.87mm in width enable efficient PCB real estate utilization without sacrificing performance. Solder termination type facilitates secure mounting and electrical contact on PCBs.

Conforming to the IEEE 802.3ab standard, this transformer supports 1000BASE-T gigabit Ethernet networks, ensuring compatibility across a variety of LAN Ethernet applications. Wurth Elektronik’s focus on quality manufacturing, as reflected by the production in China, reinforces the component’s suitability for industrial, telecommunications, automotive, and IoT device integration.

Designed with a robust and compact structure, the WE-RJ45 transformer family is intended for embedded computing solutions including modems, hubs, routers, switches, M2M communication devices, Internet of Things (IoT) applications, and industrial Ethernet protocols such as EtherCAT.

Ideal for embedded computing systems and network communication devices. Features solder termination for reliable PCB mounting. Operating temperature range from -40°C to 85°C ensures durability. Supports frequency from 1MHz up to 100MHz suitable for various Ethernet standards.

Complies with IEEE 802.3ab standard for LAN Ethernet applications. Compact length of 17.02mm and width of 13.87mm for space-efficient PCB layouts. Insertion loss of -1dB maintains signal integrity in Ethernet transmissions.

Manufactured in China with high quality and consistency.

This transformer is essential for industrial, laboratory, telecommunications, manufacturing, and commercial Ethernet applications that demand reliable data transmission and compliance with modern networking standards. Explore the extensive range of transformers available on EnvMart for superior connectivity solutions.
