RS PRO 3 Pole Straight Standard DIN Connector Male Panel Mount Screw Lock 4A 100V IP40 210-0250

Free Delivery in India | Lowest Global Shipping Charges

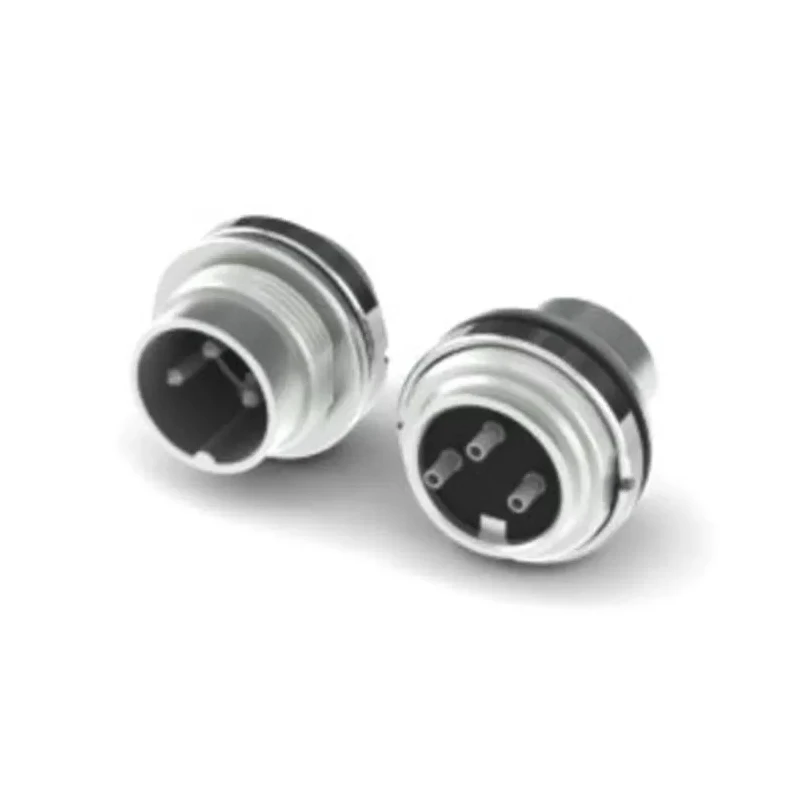

RS PRO 3 Pole Straight Standard DIN Connector Male Panel Mount Screw Lock 4A 100V IP40 210-0250

Name: RS PRO 3 Pole Straight Standard DIN Connector Male Panel Mount Screw Lock 4A 100V IP40 210-0250
Brand: RS PRO
SKU: 167705



Category DIN Connectors Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Voltage	100V
Brand	RS PRO
Orientation	Straight
Current	4A
Model	210-0250
IP Rating	IP40
Connector Type	Male DIN
Mounting Type	Panel Rear Mount
Mount Type	Panel Mount
Housing Material	ABS
Contact Material	Brass
Series	RS PRO
Termination Type	Solder
Number of Poles	3
Pole Format	3
Contact Plating	Silver
Number of Contacts	3
Contact Gender	Male
Connector Gender	Male
Mating Type	Screw Lock
Connector Size	Standard
Termination Method	Solder

Key Features

Designed for panel mount applications with rear mounting capability.
Standard size connector with 3 poles for versatile connectivity.
Rated for 4A current and 100V voltage applications.
Constructed with ABS housing and brass contacts plated with silver for durability.
IP40 rated protection suitable for indoor electronic equipment.
Termination type is solder, ensuring reliable electrical contact.
Connector orientation is straight for ease of installation.
Male connector with screw lock mating to prevent accidental disconnections.

Product Description

RS PRO 210-0250 is a high-quality 3 pole straight standard DIN connector, designed specifically for male panel mount applications. With a screw lock mechanism, it provides secure and reliable electrical connections with a current rating of 4A and voltage rating of 100V. The connector is constructed with an ABS housing and brass contacts plated with silver to ensure durability and excellent conductivity. It complies with screw lock mating type and is oriented straight for ease of installation in various electrical and electronic devices.

This DIN connector holds an IP40 rating, providing protection against solid objects larger than 1mm, making it suitable for indoor industrial, laboratory, automation, and control equipment environments. The solder termination method facilitates secure wiring connections during assembly. RS PRO’s dedicated engineering ensures the connector withstands demanding use cases such as electrical test equipment, medical devices, and industrial automation setups.

The connector body is male type and panel mounted with a rear mount approach, secured firmly with a ring nut to prevent accidental disconnections. It is designed to replace old or damaged connectors or customize audio and electronic systems requiring robust circular DIN Connectors. The product is made in Taiwan, Province Of China, reflecting quality manufacturing standards.

Durable ABS housing with brass, silver-plated contacts for effective performance. Screw lock mating prevents accidental disconnection for consistent operation. Standard size panel mount connector suits a broad range of applications.

Rated at 4A and 100V for demanding power and signal uses. Straight orientation allows easy installation and maintenance access.

RS PRO is a trusted brand globally, providing rigorously tested electronic components that meet industry standards. This 210-0250 DIN connector is a reliable choice for engineers and technical professionals looking for high-quality, panel mount male connectors. Explore the full range of RS PRO connectors and electronic components at EnvMart to find products matching your industrial and commercial needs.
