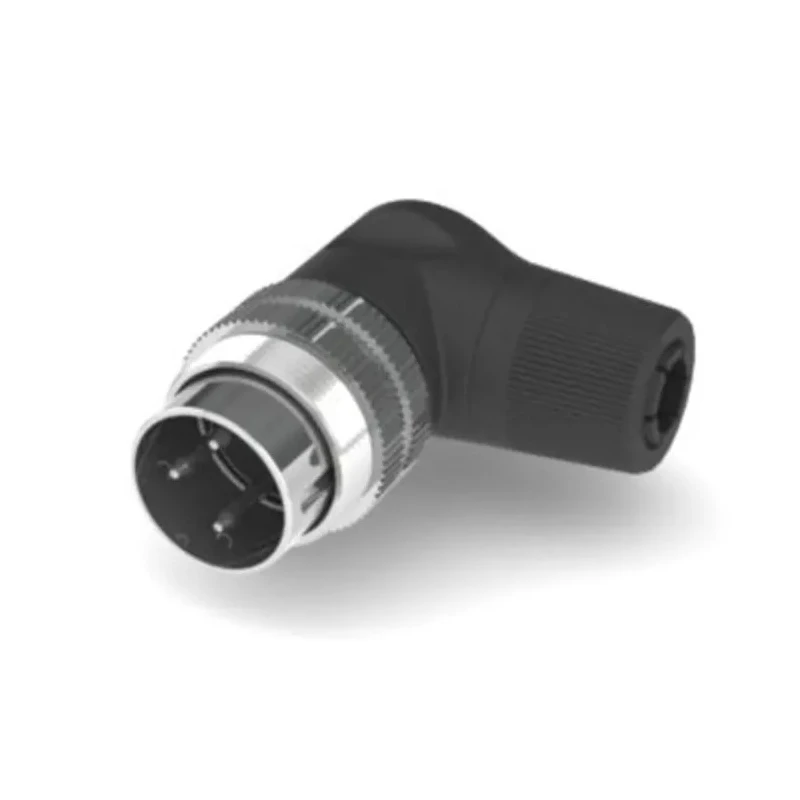

RS PRO 3 Pole Right Angle M16 DIN Connector 100V 4A Screw Lock Cable Male 210-0237
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 100V |
| Brand | RS PRO |
| Orientation | Right Angle |
| Current | 4A |
| Model | 210-0237 |
| IP Rating | IP40 |
| Connector Type | Male DIN connector plug |
| Mounting Type | Cable Mount |
| Mount Type | Cable |
| Housing Material | ABS |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Solder |
| Insulation resistance | 100MΩ at 500V DC min |
| Terminals | Brass, silver plated |
| Shield Type | Shielded |
| Contact Resistance | Pins 30 mΩ max., Shell 50 mΩ max |
| Number of Poles | 3 |
| Pole Format | 3 |
| Contact Plating | Silver |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Connector Gender | Male |
| Mating Type | Screw Lock |
| Connector Size | M16 |
| Termination Method | Solder |
| Shield Cover | Steel nickel-plated |
| Shell Cover | PA6 |
| Screw Cap | PA6 |
| O ring | Brass nickel plated |
Key Features
- The connector features a right angle orientation for compact installations.
- It has a screw lock mechanism ensuring reliable mating with female connectors.
- The termination type is solder, providing durable electrical contacts.
- The housing is made from ABS material with brass silver-plated contacts to enhance conductivity.
- Provides shielded protection with a steel nickel-plated shield cover for improved signal integrity.
- Rated for industrial applications including control engineering, automation, and medical instrumentation.
- IP40 rating offers protection against solid objects larger than 1 mm, suitable for indoor use.
- Manufactured in Taiwan and meets RS PRO quality standards for dependable use.
Product Description
RS PRO 210-0237 3 Pole Right Angle M16 DIN Connector is a high-quality cable mount male connector designed for industrial and electronic applications. With a rated current of 4A and voltage of 100V, this connector accommodates secure and stable connections in compact spaces thanks to its right angle orientation.
The connector features a screw lock system which ensures that once mated with a female panel or chassis mount socket, the connection remains securely in place and resistant to accidental disconnection, making it ideal for custom wiring assemblies and audio or data signal applications.
Assembly involves disassembling the connector to access terminal pins, soldering cables, securing the cable to protect against bending stress, and reassembling the parts. This design allows users to create custom cable lengths and configurations tailored to their installation needs.
Constructed with a robust ABS housing, brass silver-plated contacts, and a shielded steel nickel-plated cover, the connector offers durable performance and effective shielding to minimize interference. It features an IP40 rating providing protection from solid particles over 1 mm but is intended for indoor use conditions.
Typical industrial use cases include control engineering, automation technology, medical instrumentation, and electronic audio equipment where reliable signal transmission and secure mechanical connections are required.
The connector supports 3 contacts and uses solder termination for strong electrical connections. The mounting type is cable mount with a male connector orientation. Materials include ABS housing, PA6 screw cap and shell cover, brass nickel-plated O ring, and silver-plated brass terminals.
Electrical characteristics include a contact resistance of max 30 mΩ on pins and 50 mΩ on the shell, plus insulation resistance of 100 MΩ at 500V DC minimum. Designed for applications demanding durability and precise mating reliability.
RS PRO stands as a trusted brand offering quality components rigorously tested to meet demanding standards, ensuring dependable performance across various industrial and laboratory environments.
Explore our wide selection of DIN Connectors and related components to find the perfect fit for your technical requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 100V and a current of 4A.
It uses solder termination for strong electrical connections.
The housing is made from ABS material, with brass silver-plated contacts and a steel nickel-plated shield cover.
It has an IP40 rating, providing protection against solid objects larger than 1 mm, suitable for indoor use.
This unit is designed for cable mount applications.
The connector features a right angle orientation, making it suitable for compact installations.
It is suitable for industrial applications including control engineering, automation, and medical instrumentation.
The maximum contact resistance is 30 mΩ on pins and 50 mΩ on the shell.
This connector has 3 poles.
It has an insulation resistance of 100 MΩ at 500V DC minimum.
It is manufactured in Taiwan.
