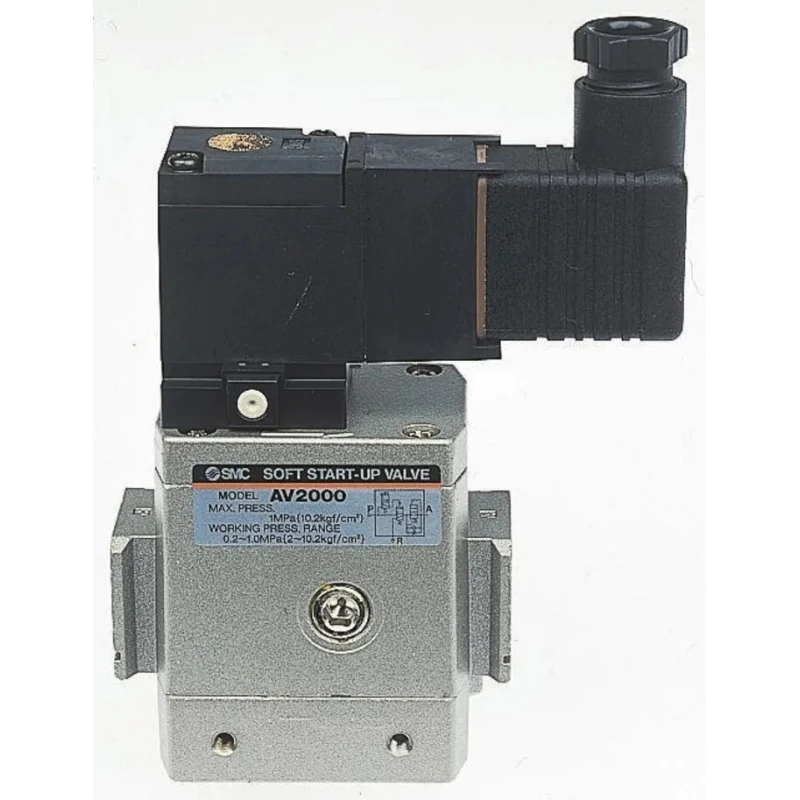

SMC Pneumatic Solenoid Valve 3 Port Residual Pressure Release Soft Start Up Pilot G 220V AC Aluminium Body EAV2000
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 220V ac |
| Brand | SMC |
| Body Material | Aluminium |
| Maximum Operating Pressure | 1 Mpa |
| Height | 125mm |
| Length | 66mm |
| Model | EAV2000 |
| Width | 40mm |
| Mount Type | Stand Alone |
| Series | EAV2000 |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 60°C |
| Port Type | Push-in |
| Port Size | 1/4 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | 0°C |
| Actuation Type | Pilot |
| Connection Thread Standard | G |
| Mount Pattern | DIN |
| Minimum Pilot Pressure | 0.2MPa |
| Valve Function | 3 Port, Residual Pressure Release, Soft Start Up |
| Electrical Connection Type | Grommet, Type D Din Terminal, Type Y Din Terminal |
Key Features
- Constructed with durable aluminium body for industrial use.
- Maximum operating pressure of 1 Mpa and maximum temperature of 60°C.
- Features a nitrile rubber (NBR) seal material suited for pneumatic applications.
- Equipped with 3 ports and push-in type port connection for easy installation.
- Operates with a pilot actuation type and has a DIN mount pattern.
- Includes electrical connection options with grommet and Type D and Y DIN terminals.
- Designed for stand-alone mounting and gradual pressurising and breaking of compressed air circuits.
- Minimum operating temperature is 0°C with a minimum pilot pressure of 0.2 MPa and maximum pilot pressure of 1 MPa.
Product Description
SMC EAV2000 Pneumatic Solenoid Valve 3 Port residual pressure release valve with soft start up pilot control operates on 220V AC voltage and is constructed with a robust aluminium body for reliable pneumatic system integration.
This valve offers gradual pressurising and breaking capabilities to protect compressed air circuits, making it ideal for industrial, manufacturing, HVAC, and fluid power applications requiring controlled pneumatic operations.
It features push-in type ports sized at 1/4 inch and a DIN mount pattern for easy installation. The valve uses nitrile rubber (NBR) sealing material to ensure tight sealing under operational pressures up to 1 Mpa and temperatures ranging from 0°C to 60°C.
Electrical connections include grommet and Type D and Y DIN terminals, ensuring compatibility with common industrial control systems. The valve function includes residual pressure release and a soft start-up pilot to improve system longevity and performance.
The compact design with dimensions of 66mm length, 40mm width, and 125mm height allows for flexible mounting options in pneumatic systems. It is designed for stand-alone mounting applications and operates effectively within a pilot pressure range of 0.2 MPa minimum to 1 MPa maximum.
This product is manufactured in France and adheres to no specific hazardous area certifications or standards but upholds industry reliability. Constructed with durable aluminium body for industrial use. Maximum operating pressure of 1 Mpa and maximum temperature of 60°C.
Features a nitrile rubber (NBR) seal material suited for pneumatic applications. Equipped with 3 ports and push-in type port connection for easy installation. Operates with a pilot actuation type and has a DIN mount pattern.
Includes electrical connection options with grommet and Type D and Y DIN terminals. Designed for stand-alone mounting and gradual pressurising and breaking of compressed air circuits. Minimum operating temperature is 0°C with a minimum pilot pressure of 0.2 MPa and maximum pilot pressure of 1 MPa.
Compact size with dimensions: Length 66mm, Width 40mm, Height 125mm for easy integration. Product is made in France and does not have hazardous area certification or additional standards approvals. Explore EnvMart's selection of premium Pneumatic Solenoid Valves and related industrial valves to support your manufacturing, fluid power, and HVAC system requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 1 MPa.
This unit operates on a voltage of 220V AC.
It is constructed with an aluminium body and features a nitrile rubber (NBR) seal material.
The dimensions of this model are 66mm in length, 40mm in width, and 125mm in height.
This valve is equipped with 3 ports that feature a push-in type connection.
The minimum pilot pressure is 0.2 MPa, and the maximum pilot pressure is 1 MPa.
The operating temperature range for this valve is from 0°C to 60°C.
It operates with a pilot actuation type.
It includes electrical connection options with grommet and Type D and Y DIN terminals.
Yes, it is designed for stand-alone mounting applications.
This product is manufactured in France.
It is suitable for industrial, manufacturing, HVAC, and fluid power applications requiring controlled pneumatic operations.
