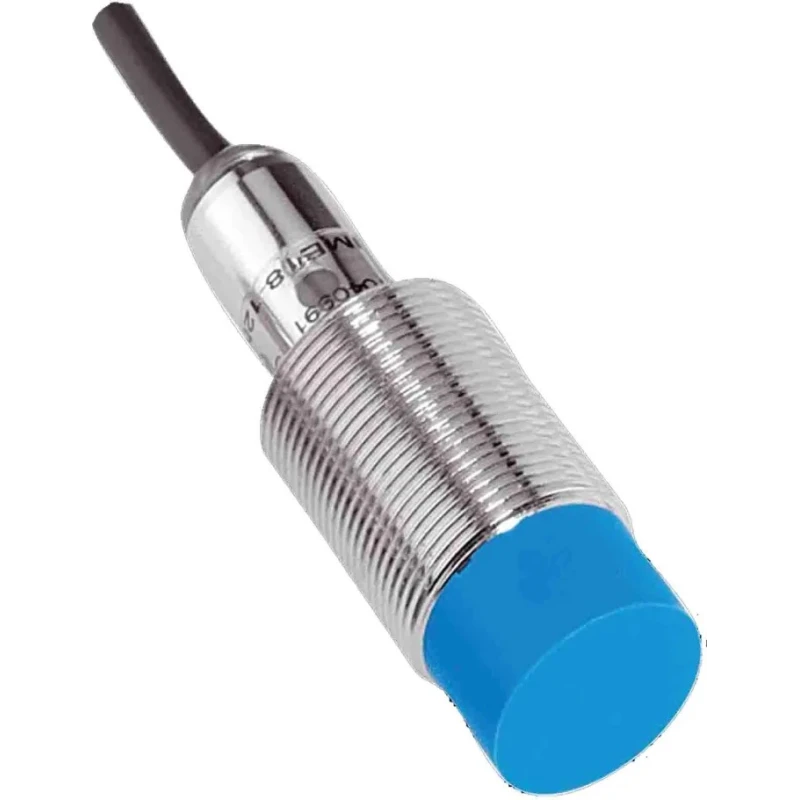

SICK Threaded Barrel Inductive Proximity Sensor M18 x 1, NPN Output, 30 V DC, 12 mm Sensing Distance IME18-12NNSZW2K

The SICK IME18-12NNSZW2K is a high-precision threaded barrel inductive proximity sensor featuring a rugged metal housing and a sensing distance of 12 mm. It operates on a 30 V DC supply with an NPN output type, providing reliable switching behavior for diverse industrial applications. The sensor's M18 x 1 thread size and 48 mm length ensure straightforward mounting and integration.

Designed for robust industrial environments, the sensor offers an IP67 rating, protecting it against dust ingress and water immersion. It works effectively across a broad temperature range from -25°C to 75°C, making it suitable for harsh operating conditions. Its unshielded design allows extended sensing ranges, enabling detection of metal objects with high positioning accuracy.

The sensor supports DC 3-wire, 4-wire, and 2-wire electrical configurations and features a maximum switching frequency of 1 kHz, allowing for fast and precise signal processing. With a maximum switching current of 200 mA and compliance with relevant safety standards like EN 60529 and EN 60947-5-2, it ensures dependable electrical and mechanical durability.

Applications include presence detection of metal components, positioning of tool carriers, monitoring of component presence in automated assembly lines, end position sensing, and non-contact detection in material handling and packaging systems. The nickel-plated brass housing coupled with a plastic sensing face enhances shock and vibration resistance for long-term usage.

This sensor is optimized for use in automation, manufacturing, conveyor control, automotive assembly, and other industrial sectors requiring rigorous position sensing and reliable operation in challenging environments.

Threaded barrel design for secure mounting and easy installation. Unshielded nickel-plated brass housing for extended sensing range. Operates in temperature range from -25°C to 75°C. IP67 protection against dust and water.

NPN output suitable for DC 3/4-wire and 2-wire configurations. Maximum switching frequency of 1 kHz for fast response. Maximum switching current 200 mA at 30 V DC supply. Compliance with EN 60529, EN 60947-5-2 standards.

Ideal for presence detection, positioning, and industrial automation. Robust design ensures long service life and high machine availability. Explore more Inductive Proximity Sensors and automation control gear on EnvMart for your industrial projects.
