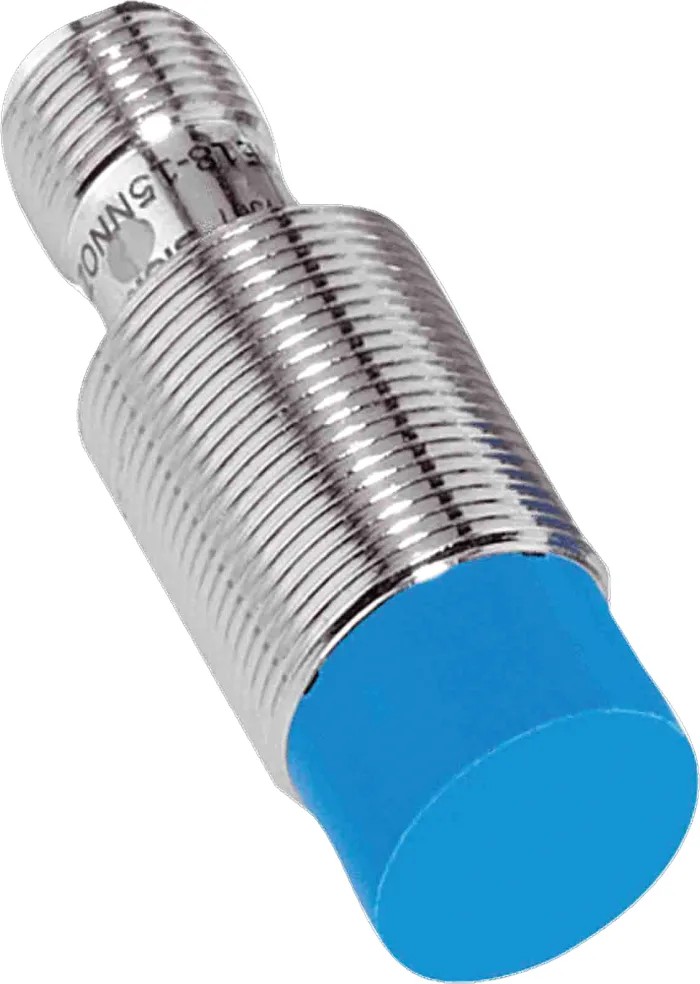

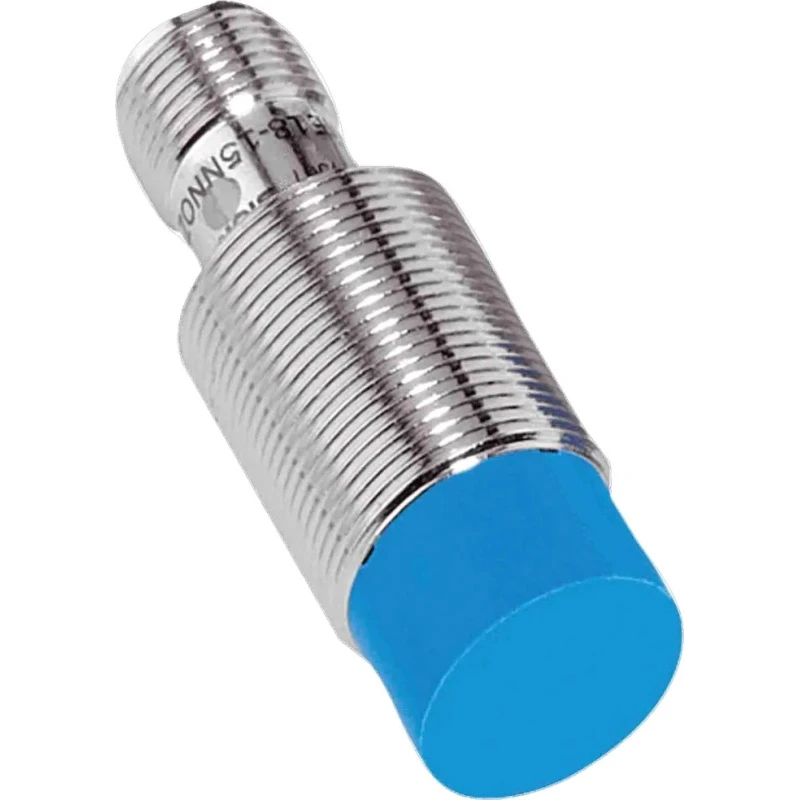

SICK Threaded Barrel Inductive Proximity Sensor M18 x 1 PNP 30 V dc 200mA IME18-08NPSZC0K

SICK IME18-08NPSZC0K Threaded Barrel Inductive Proximity Sensor is built for reliable metal detection in industrial and automation applications. Featuring an M18 x 1 thread size and a durable metal housing, this sensor operates with a PNP output at 30 V dc and 200mA switching current. Its 8 mm maximum detection range combined with an IP67 enclosure rating ensures high performance in harsh environments.

The sensor's temperature tolerance ranges from -25°C to +75°C, supporting use in a wide variety of manufacturing, monitoring, and control applications. The IME12 series sensors benefit from an integrated ASIC that enables digital adjustments after manufacturing, ensuring precise switching points and high repeatability for consistent operation.

This sensor is unshielded and intended for non-flush mounting, utilizing a 4-pin terminal configuration. Its maximum switching frequency of 1 kHz facilitates responsive detection tasks, with nickel-plated brass housing and plastic sensing face designs for durability.

Applications include presence detection of car body parts, positioning tool carriers, automated part infeed and outfeed, zone detection in elevator shafts, speed monitoring in escalators, and position monitoring of various mechanical components. These sensors contribute to increased machine availability, reduced downtime, and enhanced production accuracy.

The device complies with EN 60947-5-2 and EN 60529 standards, certifying safety and quality for industrial automation use cases. Manufactured in Hungary, it is a trusted solution for demanding environments.

The sensor features a metal housing with a robust threaded barrel design. It supports PNP output type and a switching frequency up to 1 kHz. Rated IP67 for ingress protection, suitable for harsh industrial environments. Operating temperature range from -25°C to +75°C for wide application flexibility.

The sensor is unshielded and designed for non-flush mounting using 4-pin terminals. Equipped with extended sensing ranges from 1.5 mm to 38 mm in the IME12 series. Offers excellent repeatability due to integrated ASIC technology and hotmelt encapsulation for shock resistance.

Applications include presence detection, position monitoring, and non-contact metal detection in automation systems. Explore more sensors and automation components in the Electronics & Electricals Sensors category at EnvMart for reliable industrial solutions.
