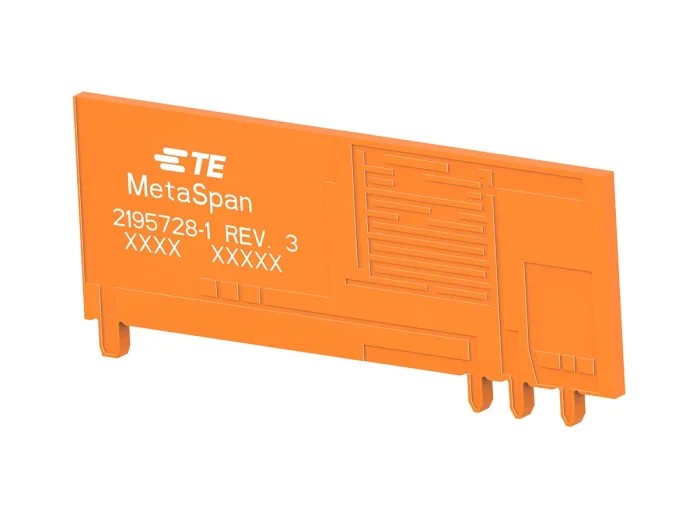

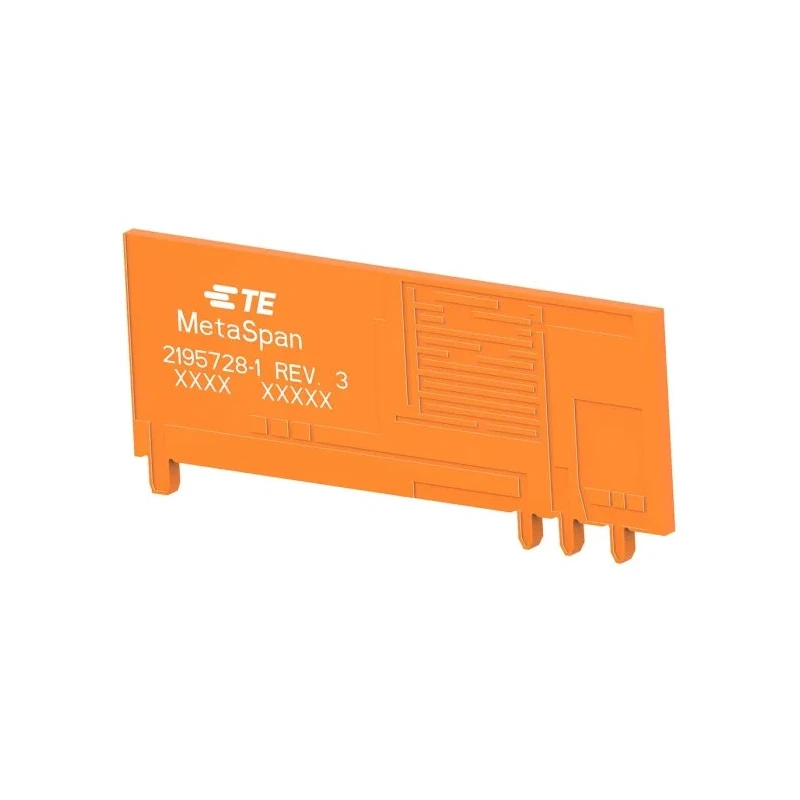

TE Connectivity PCB Multi-Band Antenna, 698 MHz to 2.7 GHz, 2G GSM/GPRS 3G UTMS 4G LTE 5G GPS 2195728-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Gain | 2.32dBi |
| Maximum Frequency | 2.7GHz |
| Minimum Frequency | 698MHz |
| Internal/External | Internal |
| RF Protocols | 2G (GSM/GPRS), 3G (UTMS), 4G (LTE), 5G, GPS |
| Antenna Physical Form | PCB |
| Antenna Mount Type | Through Hole/Bolted |
| Directivity | Omni-Directional |
| Antenna Internal Construction | PCB (Chip) |
| Number of Bands | 3 |
Key Features
- Supports 2G (GSM/GPRS), 3G (UTMS), 4G (LTE), 5G, and GPS protocols.
- Compact internal PCB chip antenna ideal for through-hole or bolted mounting.
- Offers 2.32 dBi gain with omnidirectional radiation pattern.
- Wide frequency coverage from 698 MHz to 2.7 GHz for world band capability.
- Ground plane recommended minimum length of 100 mm for optimal performance.
- Lead wires not included; separate connection accessories needed.
- Manufactured under TE Connectivity quality standards in China.
Product Description
TE Connectivity 2195728-1 PCB Multi-Band Antenna is engineered to deliver reliable omnidirectional coverage across a broad frequency spectrum ranging from 698 MHz to 2.7 GHz. This antenna supports advanced RF protocols including 2G (GSM/GPRS), 3G (UTMS), 4G (LTE), 5G cellular bands, as well as GPS for GNSS location services, making it ideal for modern wireless communication devices.
The antenna features a compact PCB physical form factor designed specifically for internal mounting applications. It is mounted using through-hole or bolted techniques, allowing secure and stable integration into various electronic assemblies. The chip construction optimizes signal integrity and reduces the profile footprint, suitable for compact device designs.
With a gain of 2.32 dBi, the antenna provides enhanced signal reception and transmission capability. Its omnidirectional directivity ensures wide-angle signal coverage, minimizing dead zones and improving network reliability. The antenna's wideband nature is especially beneficial for products requiring multi-band cellular connectivity, including NB-IoT and Cat-M applications.
Note that leads are not included with this antenna, so appropriate connection accessories must be sourced independently.
Manufactured in China, the component adheres to TE Connectivity's stringent quality and engineering standards, suitable for use in industrial, telecommunications, automotive, and consumer electronics sectors. The antenna supports a variety of applications requiring dependable multi-band wireless communication and GPS tracking functionalities.
Supports 2G (GSM/GPRS), 3G (UTMS), 4G (LTE), 5G, and GPS protocols. Compact internal PCB chip antenna ideal for through-hole or bolted mounting. Offers 2.32 dBi gain with omnidirectional radiation pattern. Wide frequency coverage from 698 MHz to 2.7 GHz for world band capability.
Ground plane recommended minimum length of 100 mm for optimal performance. Lead wires not included; separate connection accessories needed. Manufactured under TE Connectivity quality standards in China. Explore the full range of Multi-Band Antennas at EnvMart to find components tailored for your specific electronic and telecommunications projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This antenna operates across a frequency range from 698 MHz to 2.7 GHz, supporting various RF protocols.
The antenna provides a gain of 2.32 dBi, enhancing its signal reception and transmission capabilities.
It can be mounted using through-hole or bolted techniques, making it suitable for internal applications.
A minimum ground plane length of 100 mm is recommended for optimal performance of the antenna.
This model features a PCB chip construction, designed for internal mounting applications.
Lead wires are not included with this antenna; separate connection accessories are needed.
It has an omnidirectional radiation pattern, allowing for wide-angle signal coverage.
The antenna is manufactured in China under TE Connectivity quality standards.
It is suitable for a variety of applications requiring multi-band wireless communication and GPS tracking functionalities.
The antenna features a PCB chip internal construction, optimizing signal integrity and reducing footprint.
