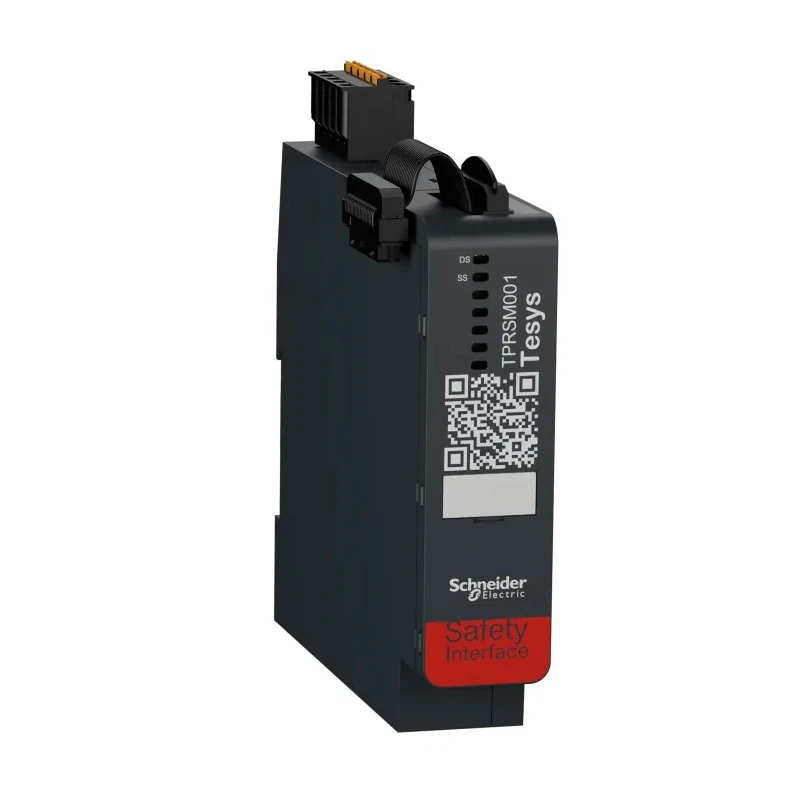

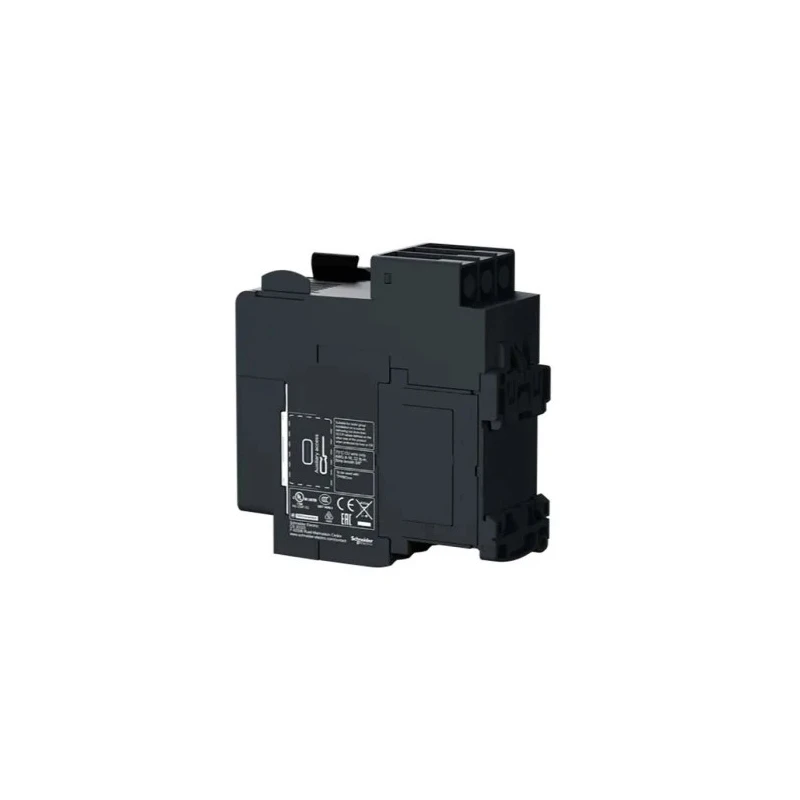

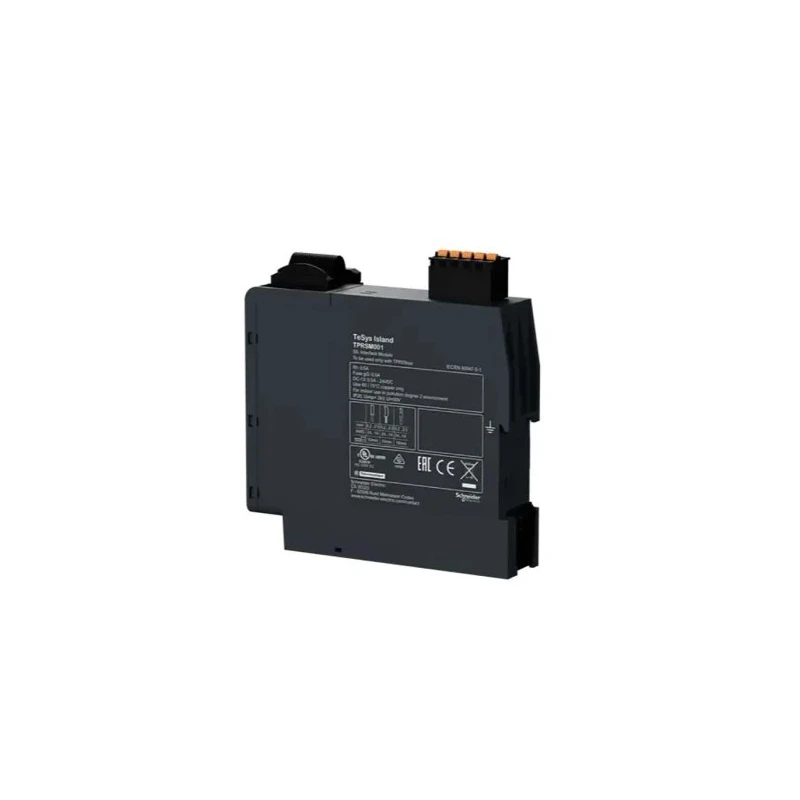

Schneider Electric TPRSM Series Safety Module, 1 Output, 24V dc, SIL Interface Module TPRSM001

Schneider Electric TPRSM001 is a Safety Module within the TPRSM series, designed as a SIL Interface Module operating at 24V dc voltage. This advanced module facilitates safe stopping functions within SIL motor starters, specifically compatible with the TeSys Island system architecture.

Its construction includes one output channel, employing 1 NC or 2 NC contacts for precise monitoring and safety assurance. The module features spring terminal type connections ensuring reliable electrical connectivity and internal electronic input protection that safeguards against irregularities.

The relay uses instantaneous opening output technology with one normally open circuit rated for an 8 Amp thermal current, making it suitable for critical safety control applications in industrial environments.

Device and safe stop statuses are visibly monitored through dual LED indicators in red and green, enhancing operational reliability and maintenance ease. The input/output circuit boasts a rated insulation voltage of 50 V and can withstand pulse voltages up to 2 kV, supporting robust durability in harsh electrical conditions.

The TPRSM001 is designed with an overvoltage category III classification and operates with low current consumption of approximately 10 mA, promoting energy efficiency.

This module integrates seamlessly into the TeSys Island platform, an industry 4.0-compliant system that allows smarter machine and process management with digitized load control and diagnostics. It supports multiple fieldbus protocols including Ethernet/IP, Modbus TCP, PROFINET, and PROFIBUS, facilitating flexible automation system integration.

Typical industrial applications include process control, machine safety systems, automation setups in manufacturing plants, electrical control panels, HVAC systems, and other safety critical installations.

The module ensures safe stop functionality with 1 NC or 2 NC contacts for monitoring. Compatible with TPRBC bus coupler and TPRSS SIL motor starter systems. Operates at a rated operational voltage of 24 V DC input/output circuit.

Includes spring terminal type connections and supports internal electronic input protection. Features relay instantaneous opening output with one NO circuit rated at 8 A thermal output current. Equipped with red and green LED indicators for device status and safe stop status.

Isolated switch input type emphasizes safety with rated insulation voltage at 50 V and pulse withstand voltage at 2 kV. Designed with an overvoltage category of III and low current consumption of 10 mA. Supports connectivity via Ethernet/IP, Modbus TCP, PROFINET, and PROFIBUS through bus coupler integration.
