Schneider Electric TeSyS Island Direct Online Starter 690V AC, 37 kW, 3 Phase, IP20 TPRST080

Free Delivery in India | Lowest Global Shipping Charges

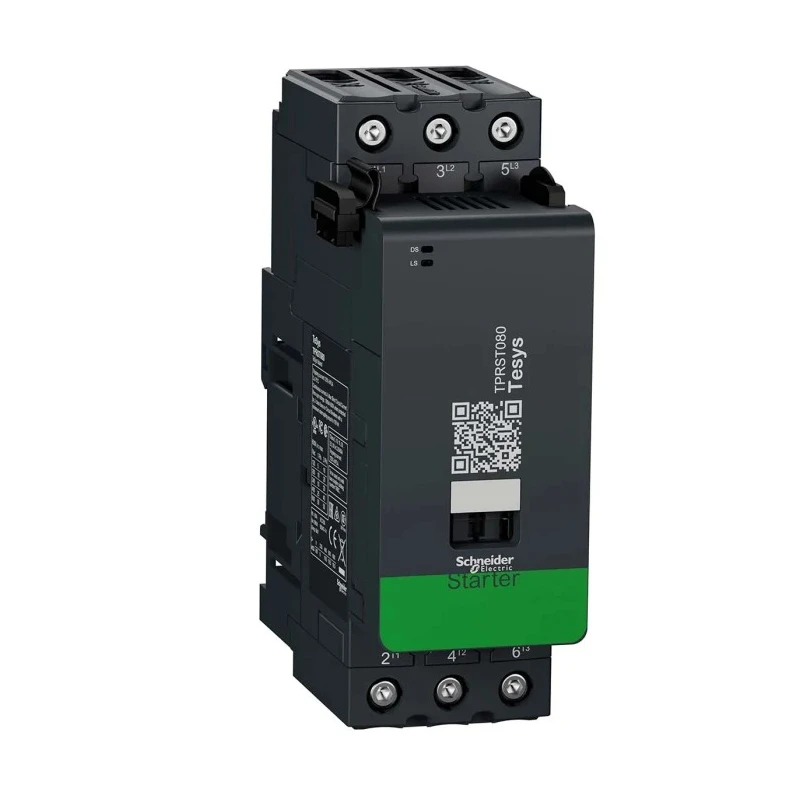

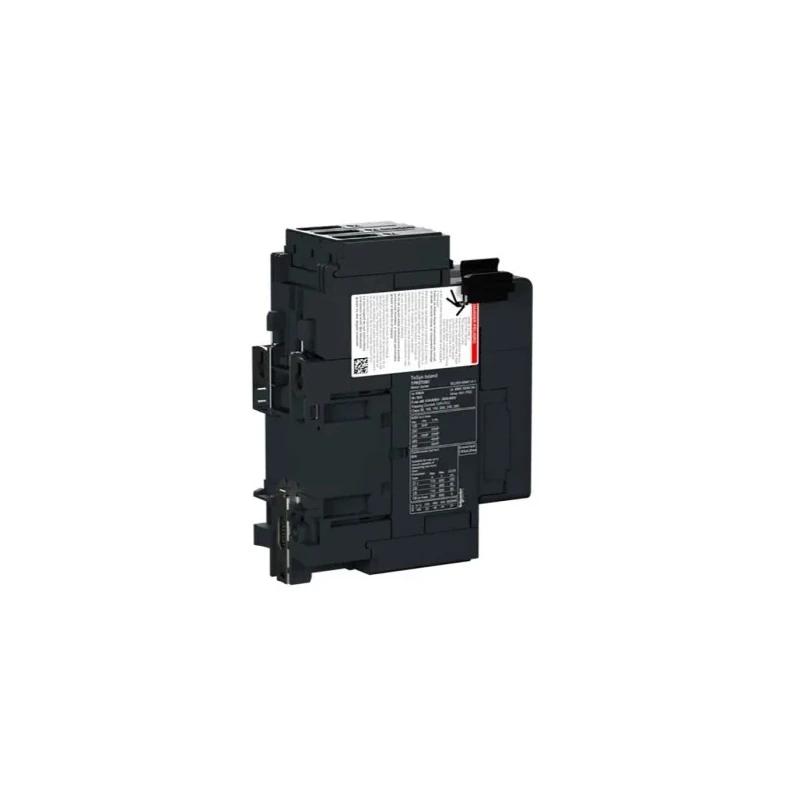

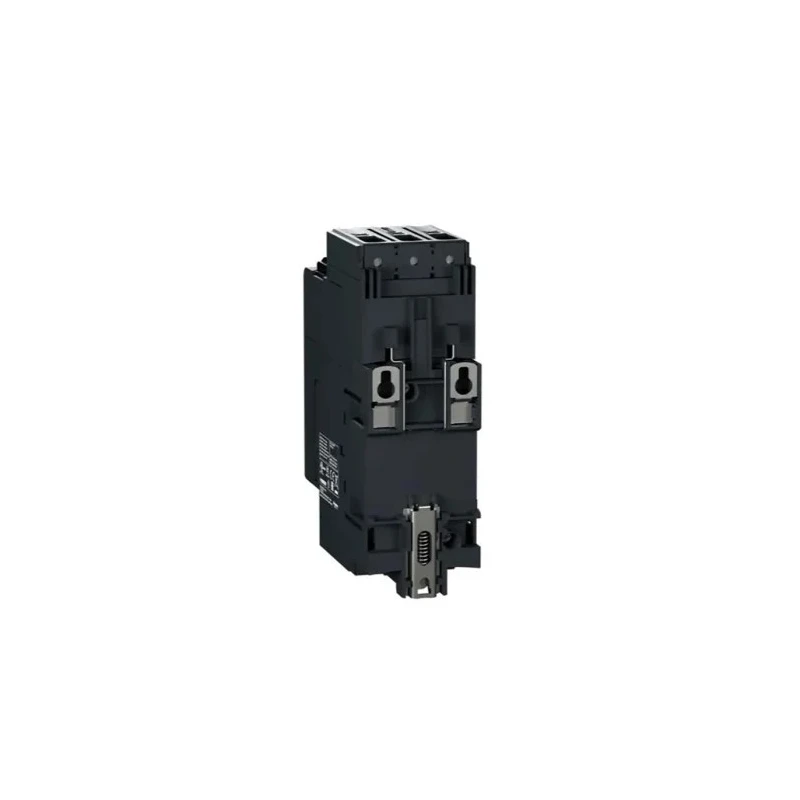

Schneider Electric TeSyS Island Direct Online Starter 690V AC, 37 kW, 3 Phase, IP20 TPRST080

Name: Schneider Electric TeSyS Island Direct Online Starter 690V AC, 37 kW, 3 Phase, IP20 TPRST080
Brand: Schneider Electric
SKU: 165191
Price: 548.98 USD
Availability: InStock



Category Motor Starters Brand Schneider Electric Condition New

Specifications

Country of Origin	France
Brand	Schneider Electric
Model	TPRST080
IP Rating	IP20
Mount Type	Horizontal, Vertical
Overall Length	167mm
Current Rating	80A
Series	TeSyS Island
Overall Width	55mm
Power Rating	37kW
Sub Type	DOL
Interfaces	EtherNet/IP, Modbus TCP, PROFINET or PROFIBUS
Number of Phases	3
Maximum Voltage	690V ac
Number of Poles	3
Overall Depth	125mm

Key Features

Compatible with TeSyS Island series for seamless automation integration.
Supports utilisation categories AC-1, AC-2, AC-3, and AC-4.
Rated current of 80A suitable for industrial motor starting applications.
Provides electrical line and load protection with power and energy monitoring capabilities when used with voltage modules.
Operates with 3 poles and supports 3 phase motors.
Equipped with interfaces such as EtherNet/IP, Modbus TCP, PROFINET, and PROFIBUS for flexible communication.
Designed and manufactured to international standards including EN/IEC 60947-4-1, UL, CCC, CSA, and EAC.

Product Description

Schneider Electric TPRST080 is a Direct Online (DOL) Starter from the TeSyS Island series, designed for 3 phase motors with a power rating of 37 kW and operational voltage up to 690V AC. Equipped with IP20 protection, it supports horizontal and vertical mounting to meet versatile industrial installation needs.

This motor starter operates only when connected to the TPRBC bus coupler, enabling integration with automation controllers for advanced motor control. It offers upstream voltage presence detection, electrical line and load protection, as well as power and energy monitoring when paired with the TPRVM voltage interface module.

The starter's utilisation covers AC-1 to AC-4 categories, making it suitable for various industrial motor starting requirements. Rated for a current of 80A with 3 poles, it is compatible with one to three phases, providing flexibility in motor control setups.

Compact in size with dimensions of 167 mm (length), 55 mm (width), and 125 mm (depth), the TPRST080 allows efficient space management in switchgear and control panels. It is manufactured in France to high-quality standards, complying with EN/IEC 60947-4-1, UL, UL 60947-4-1, CCC, CSA C22.2 No. 60947-4-1, and EAC certifications.

Compatible with TeSyS Island range and supports interfaces such as EtherNet/IP, Modbus TCP, PROFINET, or PROFIBUS for seamless automation integration. Supports motor starter applications requiring rated currents up to 80A and motor powers up to 37 kW at 690V AC.

Offers essential motor control features including voltage presence detection and load protection. Designed for horizontal and vertical mounting in industrial control panels with IP20 protection rating. Conforms to internationally recognized standards ensuring reliable and safe operation.

This direct online starter is ideally suited for industrial automation in manufacturing, process industries, HVAC systems, and electrical equipment requiring robust motor control solutions. Browse the Motor Starters category in EnvMart to explore compatible automation and control gear products.
