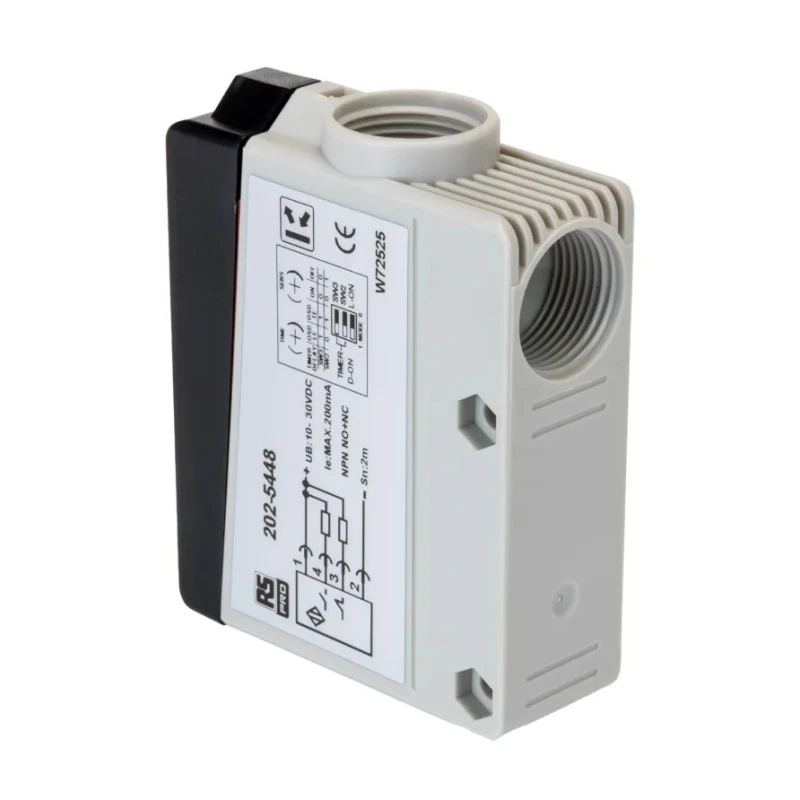

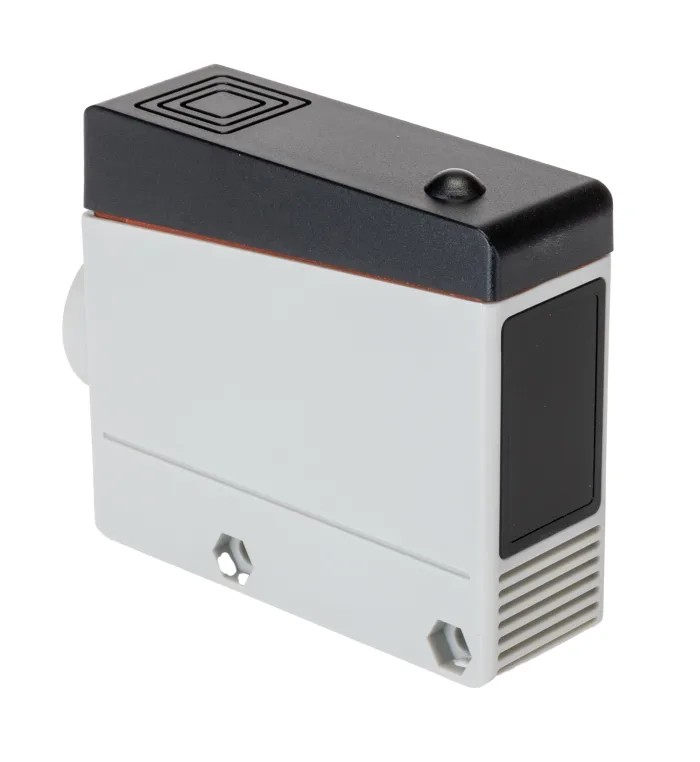

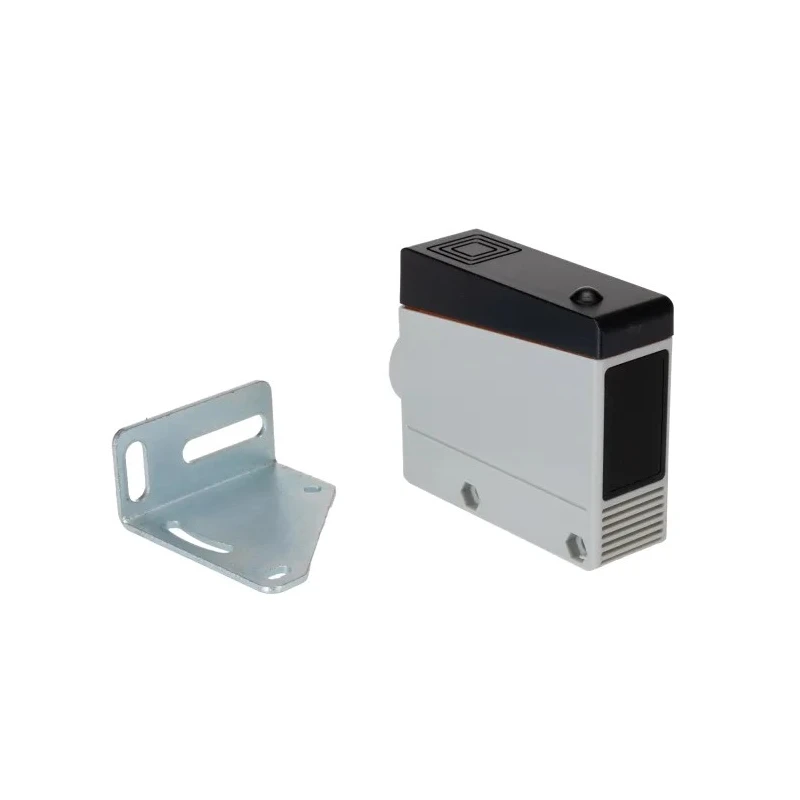

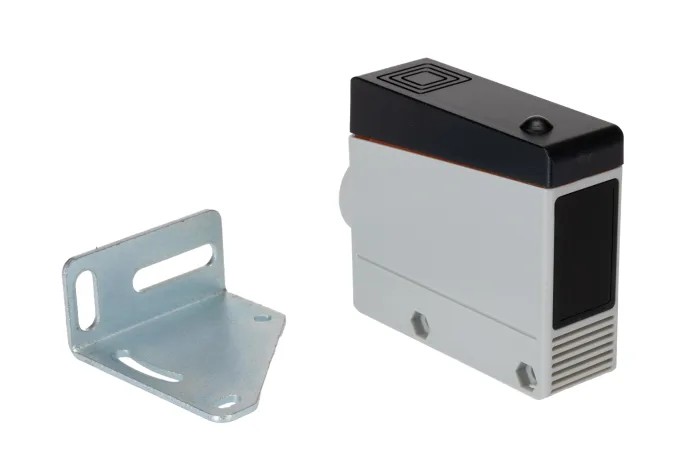

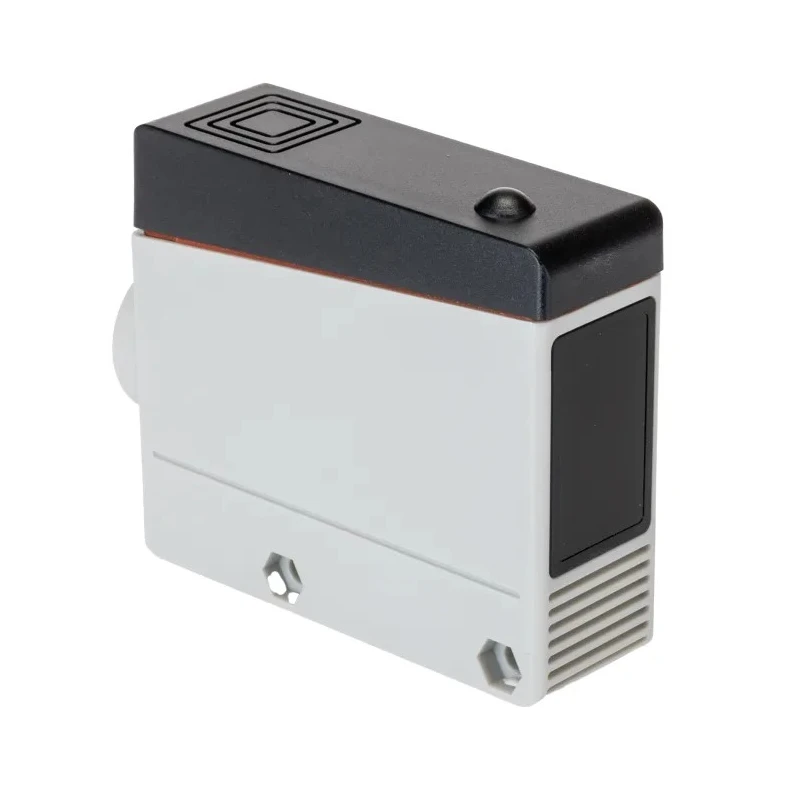

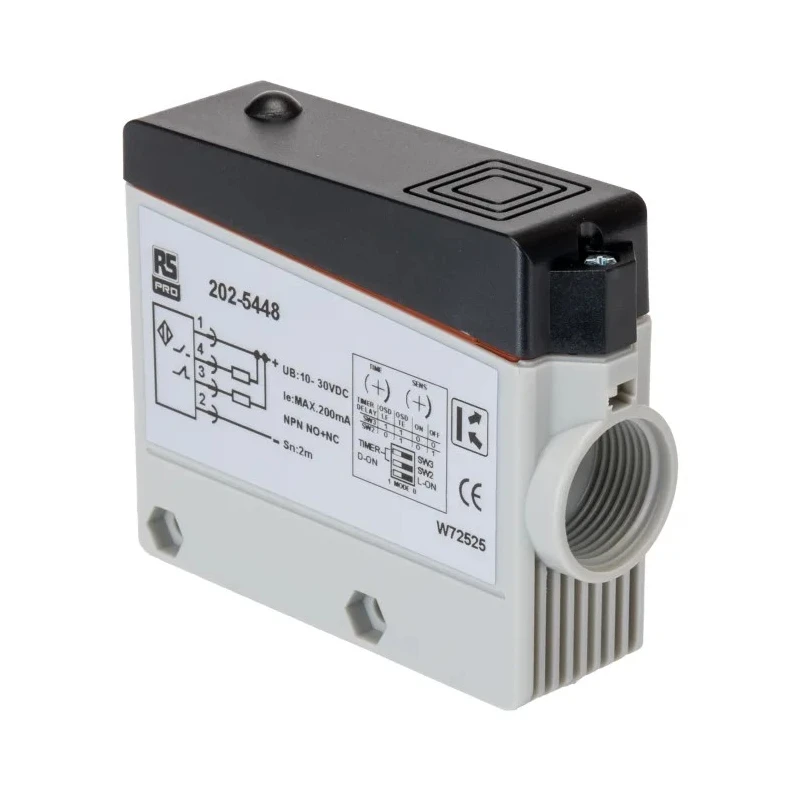

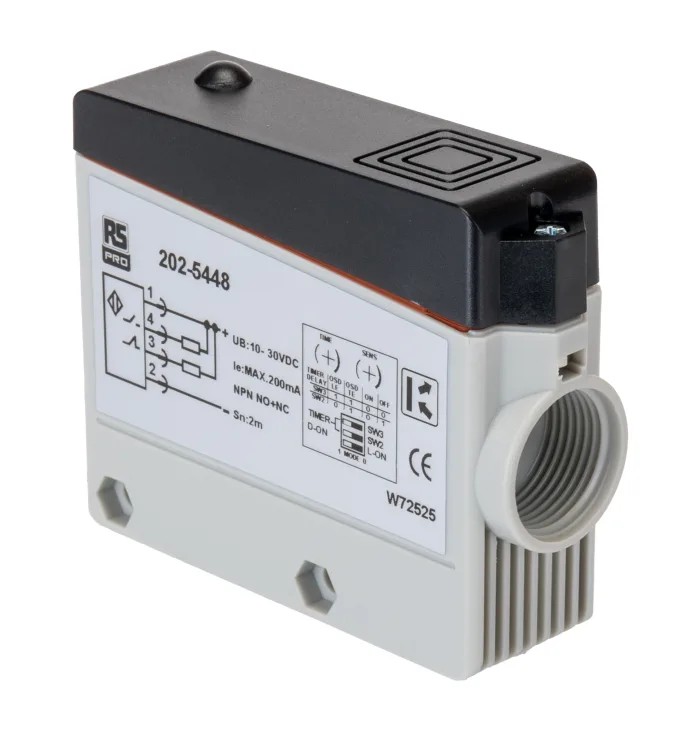

RS PRO Diffuse Reflection Photoelectric Sensor Block Sensor 2 m Detection, NPN NO/NC Output, IP67 IP67
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Light Source | Infrared LED |
| Detection range | 2 m |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Bracket, Screw |
| Housing Material | ABS/Polycarbonate |
| Output type | NPN NO/NC |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -15°C |
| Maximum Current | 200mA |
| DetectIon Type | Diffuse Reflection |
| Terminal type | Terminal Block |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE |
| Sensor Style | Block |
Key Features
- Adjustable sensing distance up to 2000 mm for versatility.
- Infrared LED light source ensures accurate detection regardless of surface color or texture.
- Robust ABS/polycarbonate housing with IP67 rating protects against dust and moisture.
- NPN normally open/normally closed output selectable by button for flexible control integration.
- Bracket and screw mount type for stable installation in industrial settings.
- Wide operating temperature range from -15°C to 55°C enables use in harsh environments.
- Maximum DC voltage of 30V dc and maximum current of 200mA suitable for diverse applications.
- Compact block sensor style with integrated emitter and receiver for cost effective design.
Product Description
RS PRO IP67 diffuse reflection photoelectric sensor block sensor model IP67 offers a high-performance sensing solution suitable for a broad range of industrial automation and control tasks. Rated IP67, this sensor provides excellent protection against dust ingress and moisture, ensuring reliable operation in demanding environments.
The sensor utilizes an infrared LED at 880nm wavelength to emit light which reflects from objects within its 2 meter adjustable sensing range. This diffused reflection detection method ensures accurate presence and position sensing of surfaces and objects regardless of their color or texture, providing attenuation-free performance and high detection accuracy.
Equipped with a NPN normally open/normally closed output selectable via a push button, the sensor can be easily integrated into various control systems requiring discrete signals. The terminal block connection type allows for secure wiring and maintenance convenience. The robust housing formed from ABS and polycarbonate materials provides mechanical strength and environmental resistance, while mounting brackets and screws facilitate stable and versatile installation configurations.
Designed to tolerate temperatures ranging from -15°C to 55°C and supporting a maximum DC voltage of 30V with a maximum current rating of 200mA, this sensor is suitable for many industrial applications such as manufacturing machinery automation, garage door openers, smoke detectors, and hand dryers.
Adjustable sensing distance up to 2000 mm for versatile detection. Infrared LED light source enables high precision and color independent sensing. Robust IP67 housing protects against dust and water ingress for durability.
NPN NO/NC output selectable for adaptable control options. Terminal block connections for secure and easy wiring. Wide operating temperature range for harsh operating conditions. Compact block style integrates emitter and receiver in one housing.
CE certified for compliance with European standards. Bracket and screw mounting facilitate flexible installation.
This Photoelectric Sensor is designed for industrial, automation, manufacturing, and commercial applications where reliable object detection is required. Its adjustable sensing range and robust protection class make it a cost-effective, easy-to-install solution for reliable presence sensing tasks in diverse environments.
Explore more sensors and industrial automation components from RS PRO and other leading brands on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO photoelectric sensor has an adjustable detection range of up to 2 meters.
It features an NPN normally open/normally closed output that can be selected via a button for flexible integration into control systems.
This sensor has an IP67 rating, providing protection against dust and moisture ingress.
The housing is made from a combination of ABS and polycarbonate, offering mechanical strength and environmental resistance.
The maximum operating temperature is 55°C, allowing it to function in harsh environments.

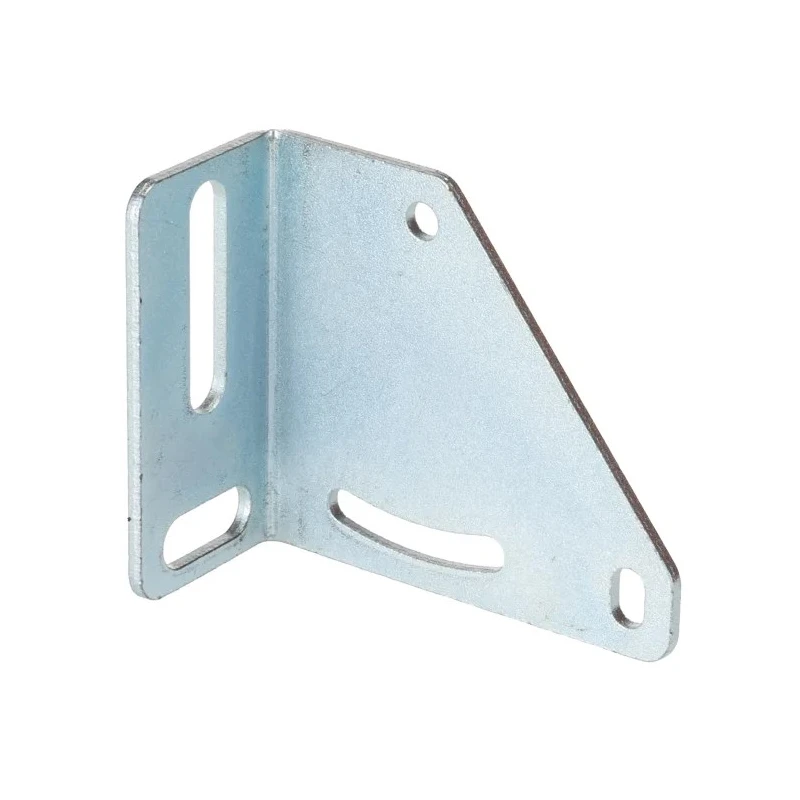

It can be mounted using brackets and screws, facilitating stable installation in various settings.
The sensor utilizes an infrared LED light source with a wavelength of 880nm for detection.
It supports a maximum DC voltage of 30V and a maximum current of 200mA.
The sensor operates effectively within a temperature range of -15°C to 55°C.
Yes, this photoelectric sensor is CE certified, indicating compliance with European standards.
It employs a diffuse reflection detection method, ensuring accurate presence and position sensing of objects regardless of their surface characteristics.
The sensor features a terminal block connection type, allowing for secure wiring and maintenance convenience.
