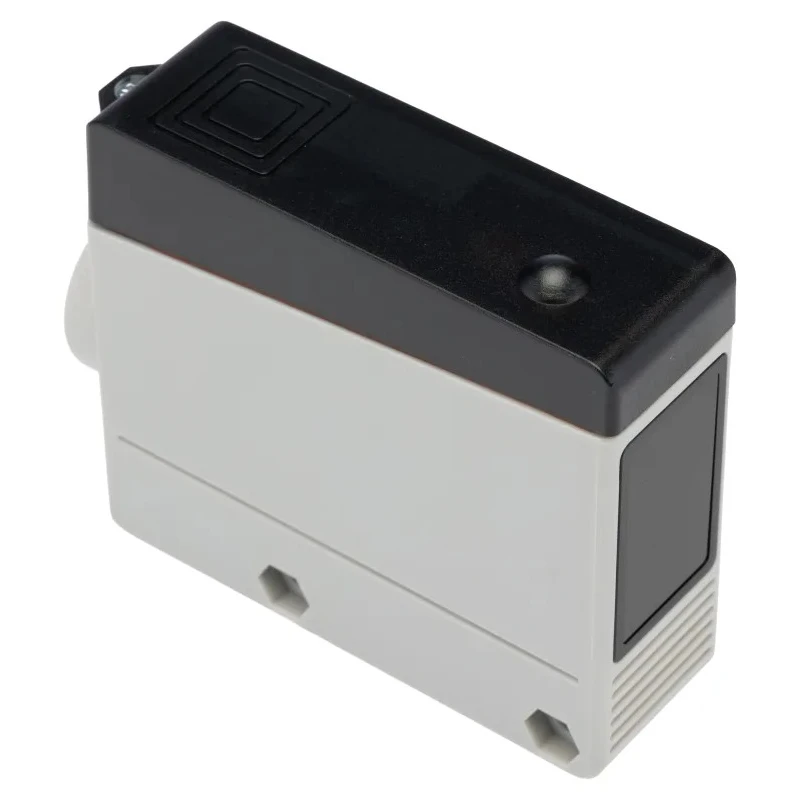

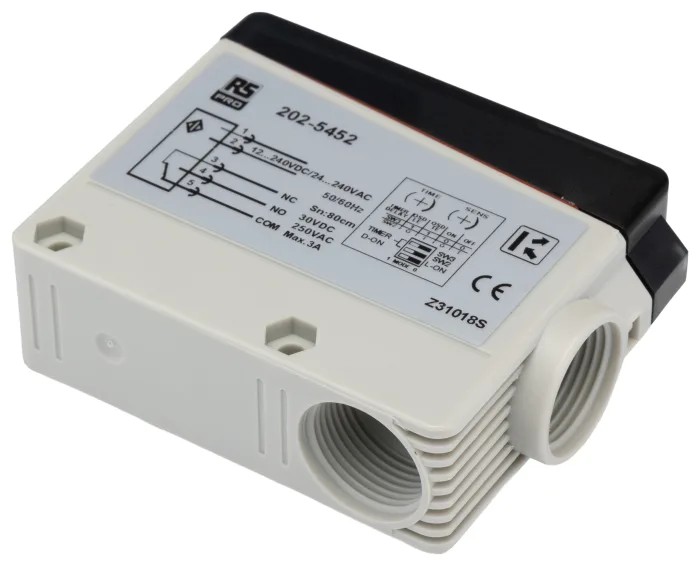

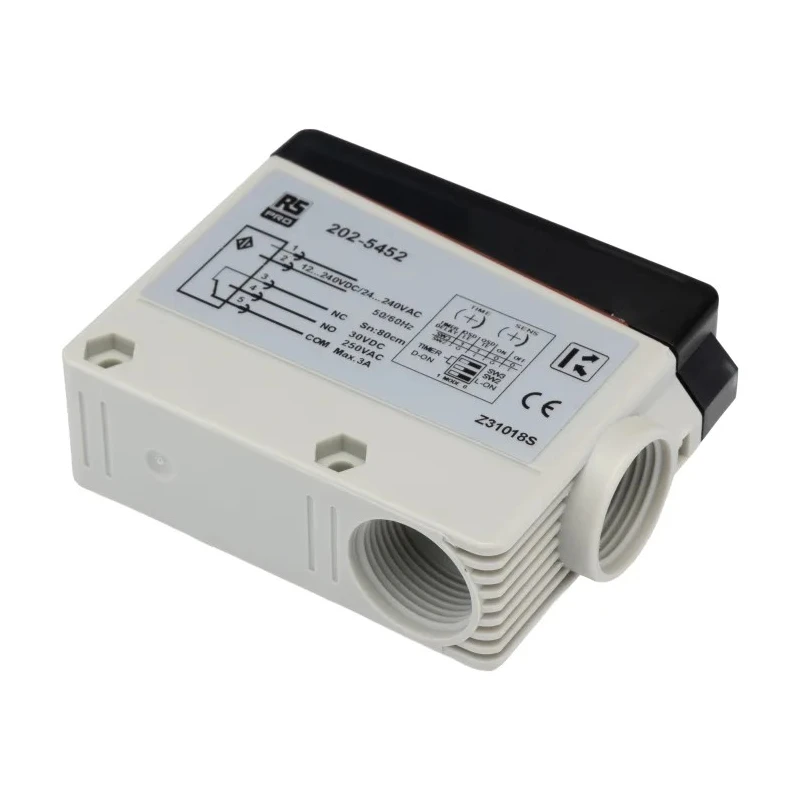

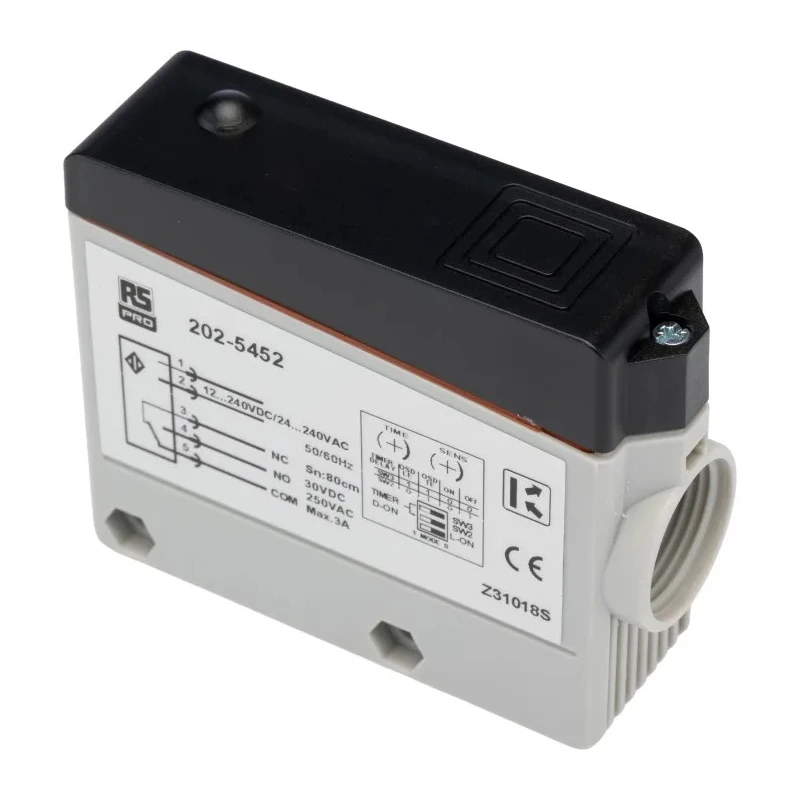

RS PRO Diffuse Reflection Photoelectric Sensor Block Sensor 0.8 m Relay IP67 202-5452
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Light Source | Infrared LED |
| Detection range | 0.8 m |
| Model | 202-5452 |
| IP Rating | IP67 |
| Mount Type | Bracket, Screw |
| Housing Material | ABS/Polycarbonate |
| Output type | Relay |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -15°C |
| Maximum Current | 3A |
| DetectIon Type | Diffuse Reflection |
| Terminal type | Terminal Block |
| Maximum dc Voltage | 240V dc |
| Standards/Approvals | CE |
| Maximum AC Voltage | 240V ac |
| Sensor Style | Block |
Key Features
- The sensor provides adjustable diffused detection up to 800 mm for versatile applications.
- It integrates emitter and receiver in a robust ABS/polycarbonate housing for durability.
- The device uses infrared LED (880nm) as a light source ensuring high detection accuracy.
- Relay output and terminal block connections enable easy integration in control systems.
- The sensor operates reliably within a temperature range from -15°C to 55°C.
- Its IP67 rating ensures protection against dust and moisture ingress in harsh environments.
- Suitable for industrial and automation applications requiring surface and object detection.
- Its bracket and screw mount type offers flexible installation options.
Product Description
RS PRO 202-5452 Diffuse Reflection Photoelectric Sensor is a block-style sensor designed for reliable surface and object detection within an adjustable sensing range of 0 to 0.8 meters. Featuring a relay output and housed in durable ABS/polycarbonate material, this sensor combines emitter and receiver elements in a compact all-in-one housing optimized for industrial automation and control applications.
Operating with an infrared LED light source at 880 nm, the sensor achieves attenuation-free detection with high accuracy across various surface colors and textures. It supports terminal block connections and provides robust mechanical mounting via bracket and screws for secure fixture.
Engineered to operate within an ambient temperature range of -15°C to 55°C and rated IP67, the device offers excellent resistance to dust and moisture, making it suitable for challenging industrial environments.
RS PRO 202-5452 complies with CE standards and is ideal for applications such as manufacturing machinery, garage door automation, smoke detection, and various automated industrial equipment. Its diffused detection enables precision and repeatability in automated measurement tasks.
The sensor provides adjustable diffused detection up to 800 mm for versatile applications. It integrates emitter and receiver in a robust ABS/polycarbonate housing for durability. The device uses infrared LED (880nm) as a light source ensuring high detection accuracy.
Relay output and terminal block connections enable easy integration in control systems. The sensor operates reliably within a temperature range from -15°C to 55°C. Its IP67 rating ensures protection against dust and moisture ingress in harsh environments.
Suitable for industrial and automation applications requiring surface and object detection. Its bracket and screw mount type offers flexible installation options. The sensor observes CE standards, assuring compliance with European safety regulations.
Detection includes multiple colors and textures with excellent anti-interference performance. Explore the RS PRO range at EnvMart for reliable, industrial-grade automation sensors designed for accuracy and durability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO Diffuse Reflection Photoelectric Sensor has a maximum detection range of 0.8 meters.
It uses an infrared LED with a wavelength of 880 nm as its light source.
This sensor has an IP67 rating, providing protection against dust and moisture ingress.
The sensor operates reliably within a temperature range of -15°C to 55°C.
It provides a relay output, allowing for easy integration into control systems.
It features a bracket and screw mount type, offering flexible installation options.
The housing is made of durable ABS/polycarbonate material.
The maximum DC voltage is 240V, and the maximum AC voltage is also 240V.
It complies with CE standards, ensuring adherence to European safety regulations.
It is suitable for applications such as manufacturing machinery, garage door automation, and smoke detection.
The maximum current rating for this model is 3A.
It utilizes diffuse reflection detection for accurate surface and object detection.
