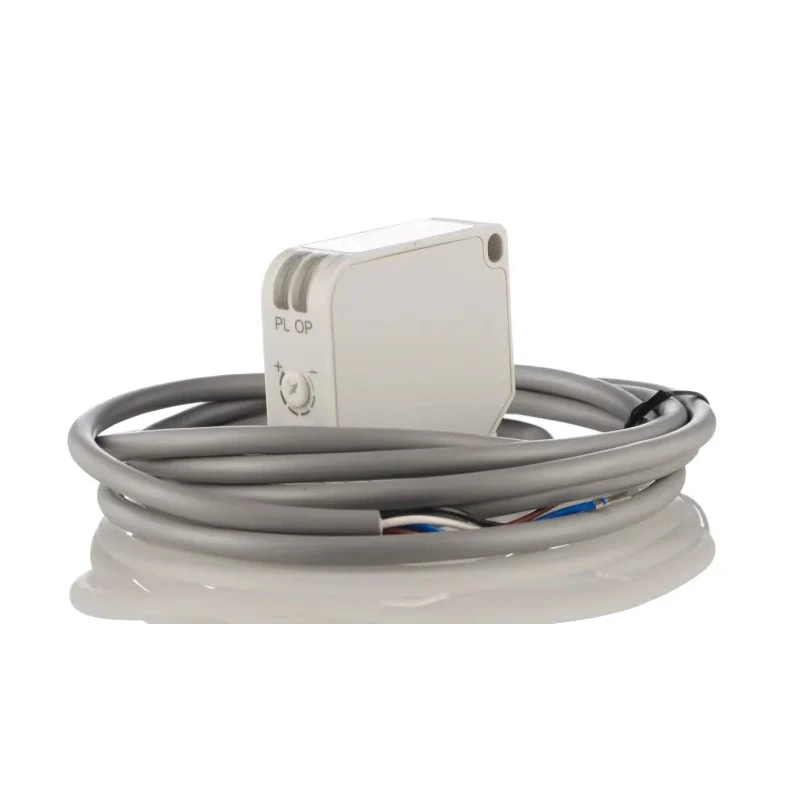

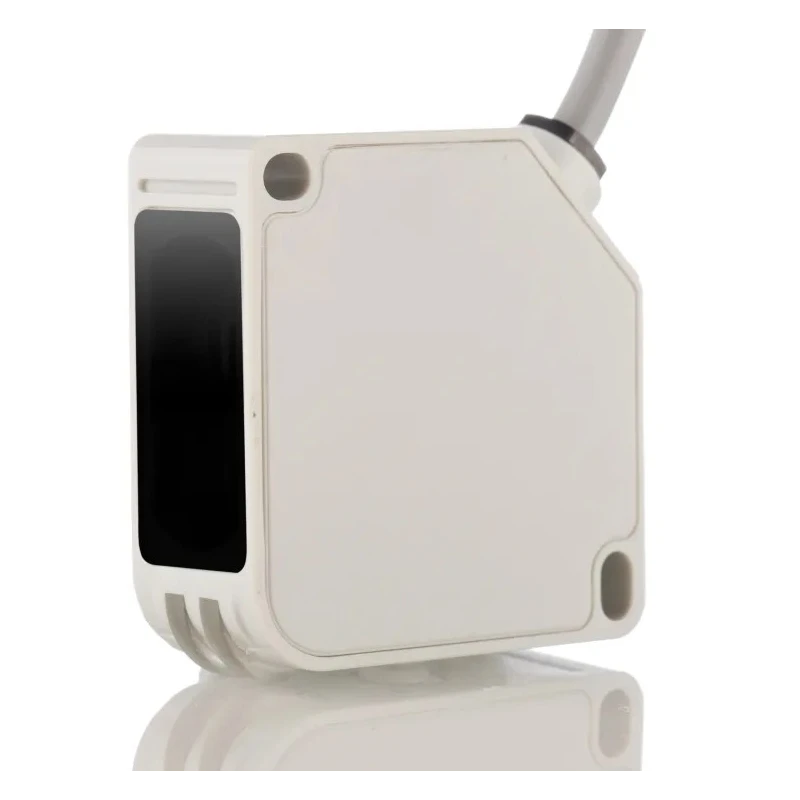

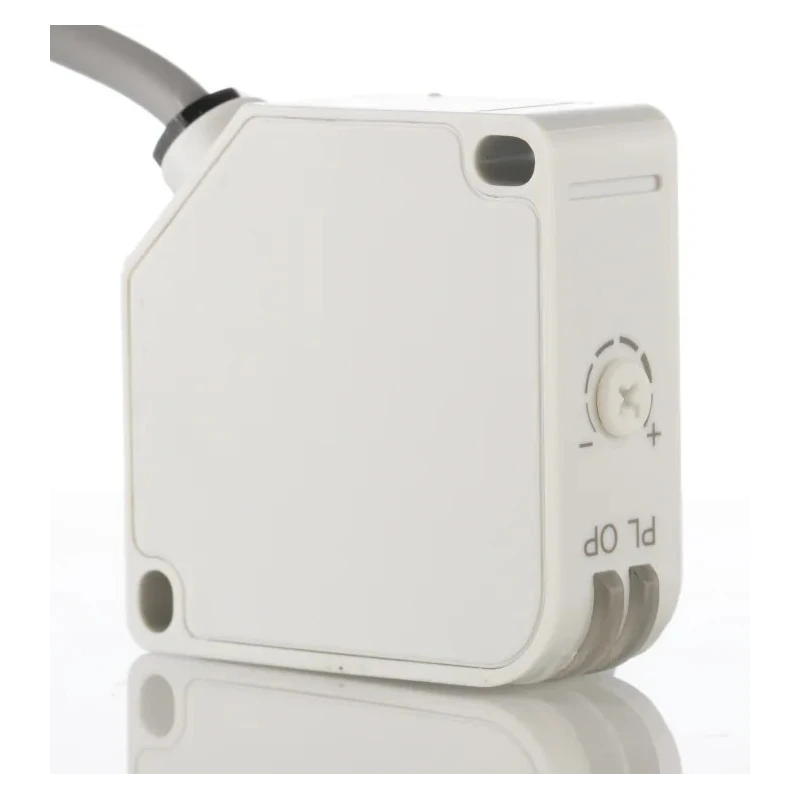

RS PRO Diffuse Reflection Photoelectric Sensor, Block Style, 2 m Detection Range, Relay Output, IP67, Model 202-4475
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Light Source | Infrared LED |
| Detection range | 2 m |
| Model | 202-4475 |
| IP Rating | IP67 |
| Mount Type | Bracket, Screw |
| Housing Material | ABS/Polycarbonate |
| Output type | Relay |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 3A |
| DetectIon Type | Diffuse Reflection |
| Terminal type | Cable |
| Maximum dc Voltage | 240V dc |
| Standards/Approvals | CE |
| Maximum AC Voltage | 240V ac |
| Sensor Style | Block |
| Emitter, PVC cable, RS stock no | 202-4482 |
| Receiver, PVC cable, RS stock no | 202-4483 |
Key Features
- Features high detection accuracy and excellent anti-interference performance.
- Constructed with ABS and polycarbonate housing for durability and IP67 protection.
- Operates within temperature range of -25°C to 55°C suitable for industrial use.
- Utilizes infrared LED light source for diffuse reflection detection.
- Provides relay output with 2 meter PVC cable connectivity.
- Supports maximum voltage of 240V AC/DC and maximum current of 3A.

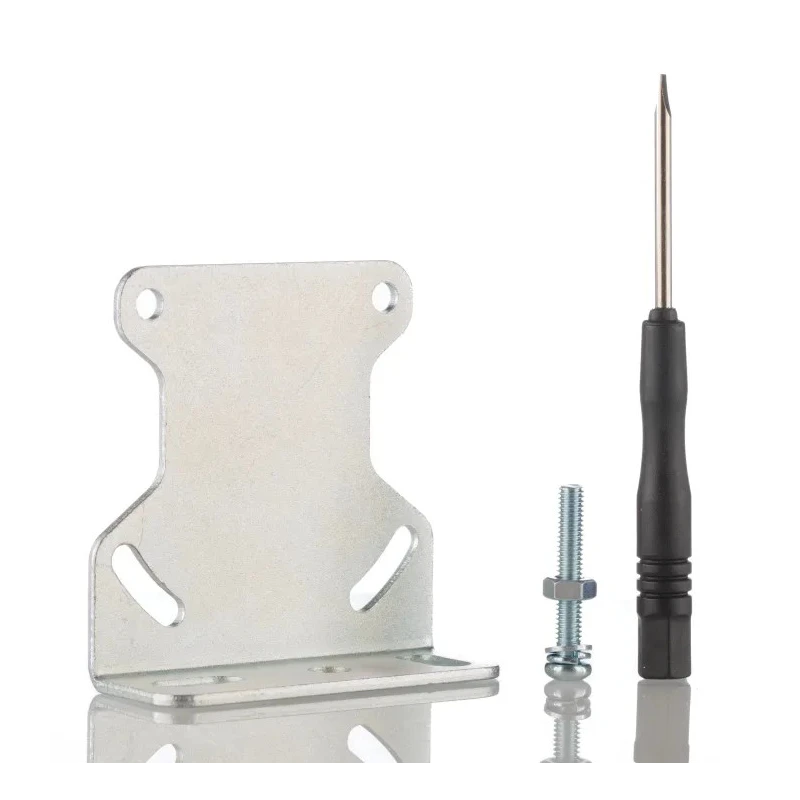

- Designed for bracket and screw mounting for secure installation.
- Certified with CE marking for quality assurance.
Product Description
RS PRO 202-4475 diffuse reflection photoelectric sensor is a block style sensor offering a 2 meter detection range and relay output. It leverages infrared LED technology for reliable non-contact detection of objects across industrial automation, logistics, automotive, and material handling sectors.
This sensor features durable ABS/polycarbonate housing with IP67 ingress protection rating, making it suitable for use in harsh environmental conditions. It operates efficiently within a temperature range of -25°C to 55°C.
The device supports a maximum AC/DC voltage of 240 volts and maximum current rating of 3 amperes. Installation is facilitated via bracket and screw mounts, ensuring firm placement in various applications.
RS PRO Photoelectric Sensors provide excellent anti-interference capabilities and high detection precision which are critical in industrial automation and parking systems. The diffuse reflection working principle enables detection of presence or absence of objects regardless of material type.
High detection accuracy with excellent anti-interference performance. IP67 rating suitable for harsh industrial environments. Output type: Relay for reliable switching. Electrical connection via 2 meter PVC cable for flexible setup.
Robust ABS/polycarbonate housing enhances durability. Mount type includes bracket and screw for secure fixing. Operating temperature range: -25°C to 55°C.
The RS PRO 202-4475 sensor is widely applied in material handling, automotive manufacturing, logistics operations, and parking system automation. Its compact block sensor form factor enables integration into varied control and sensing systems.
Experience precision sensing and outstanding durability with RS PRO sensors backed by CE certification and designed for demanding environments. Explore more RS PRO sensors on EnvMart to suit diverse industrial and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is 2 meters, allowing for effective non-contact detection of objects.
It provides a relay output, which is suitable for reliable switching in various applications.
The maximum voltage supported is 240V AC/DC and the maximum current is 3A.
This sensor operates efficiently within a temperature range of -25°C to 55°C, making it suitable for industrial environments.
The housing is constructed from ABS and polycarbonate, providing durability and protection.
It has an IP67 rating, indicating it is protected against dust and can withstand immersion in water.
Installation is facilitated via bracket and screw mounts, ensuring secure placement in various applications.
It utilizes an infrared LED light source for diffuse reflection detection.
The sensor is certified with CE marking for quality assurance.
Specific dimensions are not provided, but it is designed in a compact block style for easy integration into control and sensing systems.
It is widely applied in material handling, automotive manufacturing, logistics operations, and parking system automation.
The detection type is diffuse reflection, allowing it to detect the presence or absence of objects regardless of material type.
