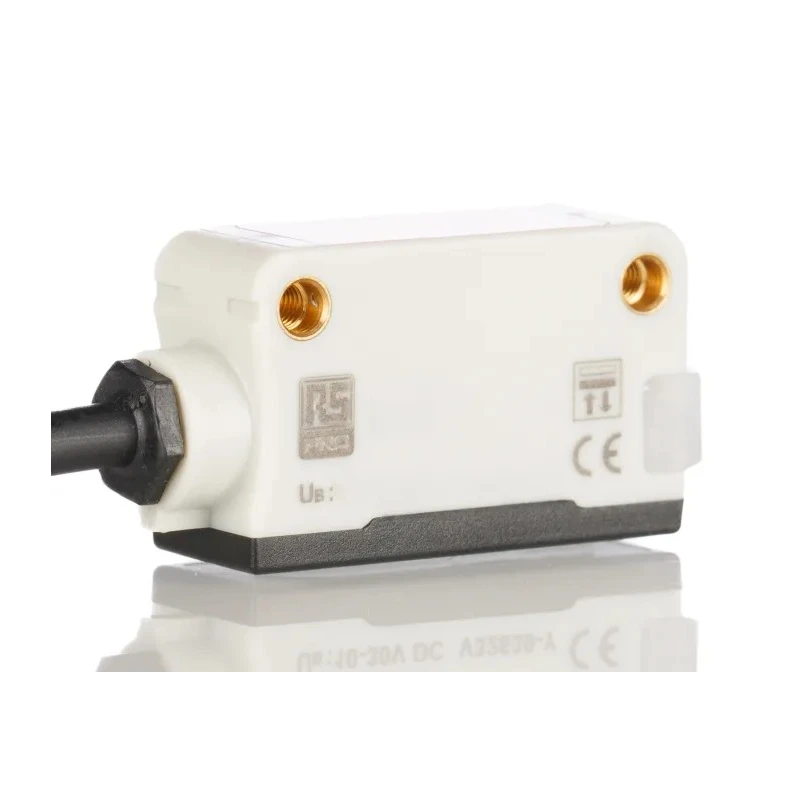

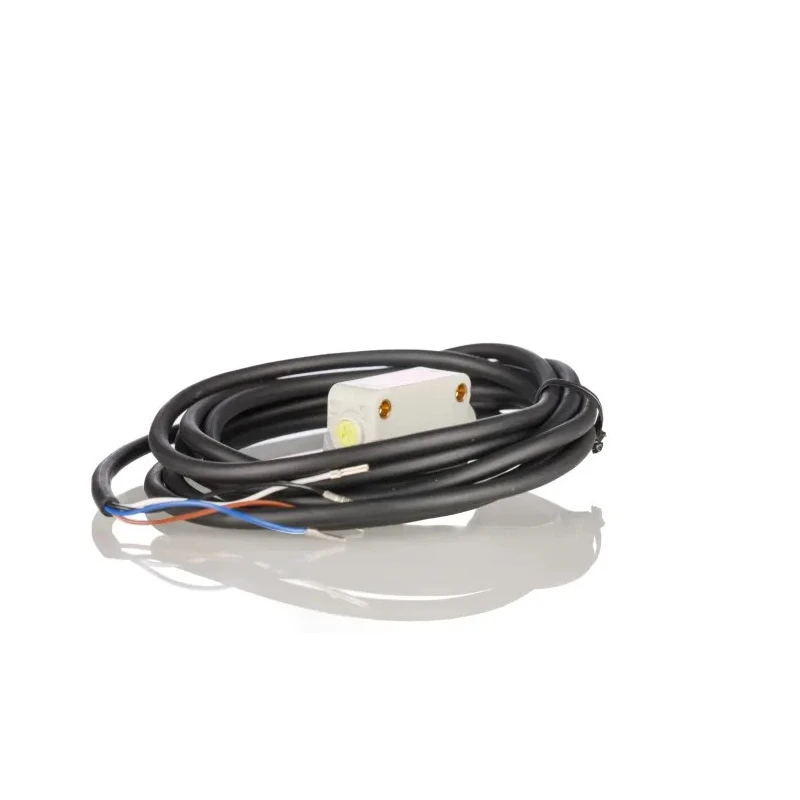

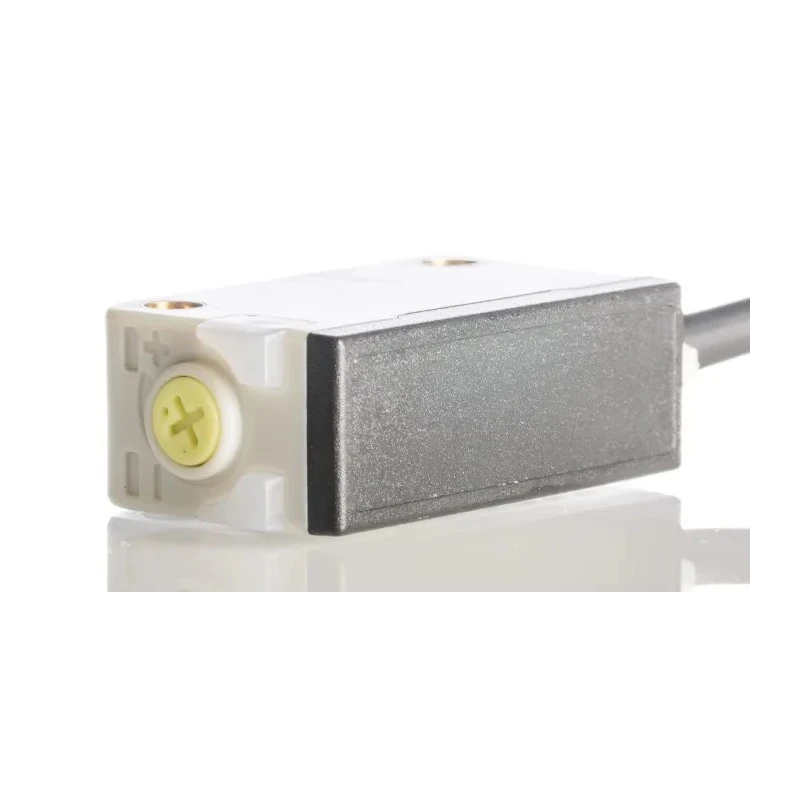

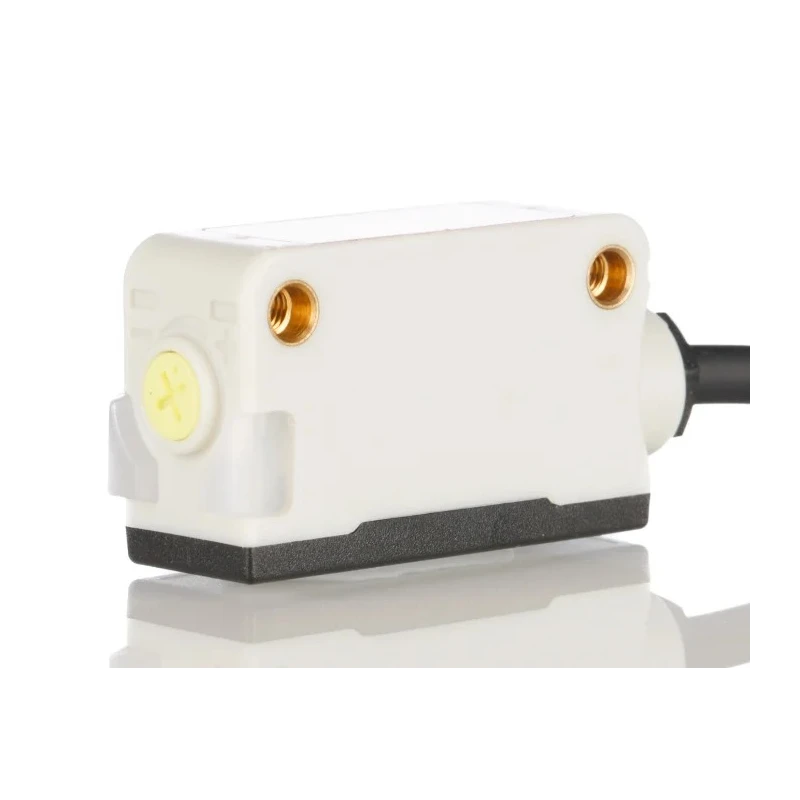

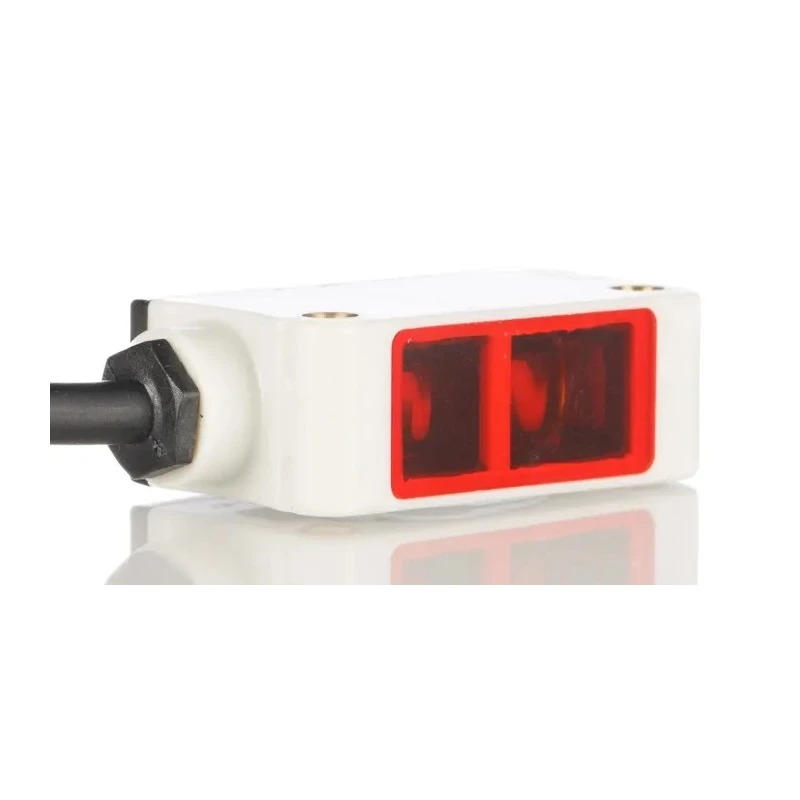

RS PRO Polarised Retro Reflection Photoelectric Sensor Block Style 4 m Detection Range NPN NO/NC Output IP67 IP Rated IP67

RS PRO IP67 Polarised Retro Reflection Photoelectric Sensor, model IP67, is a block style sensor with a 4 meter detection range, offering a robust solution for non-contact object detection in industrial and automation environments. It features a polarized retro reflection type that enhances detection accuracy for objects regardless of material or surface reflectivity.

This sensor utilizes a red light source and provides NPN NO/NC switchable output via cable terminals, enabling flexible control system integration. Its durable housing materials comprising polymethyl methacrylate, polycarbonate, and ABS deliver excellent mechanical strength and resistance to industrial conditions.

Rated IP67, the sensor is highly resistant to dust and immersion in water, making it suitable for harsh and demanding environments. It operates reliably within a temperature range of -25°C to 55°C and features a fast response time of 1 millisecond, supporting fast automation processes.

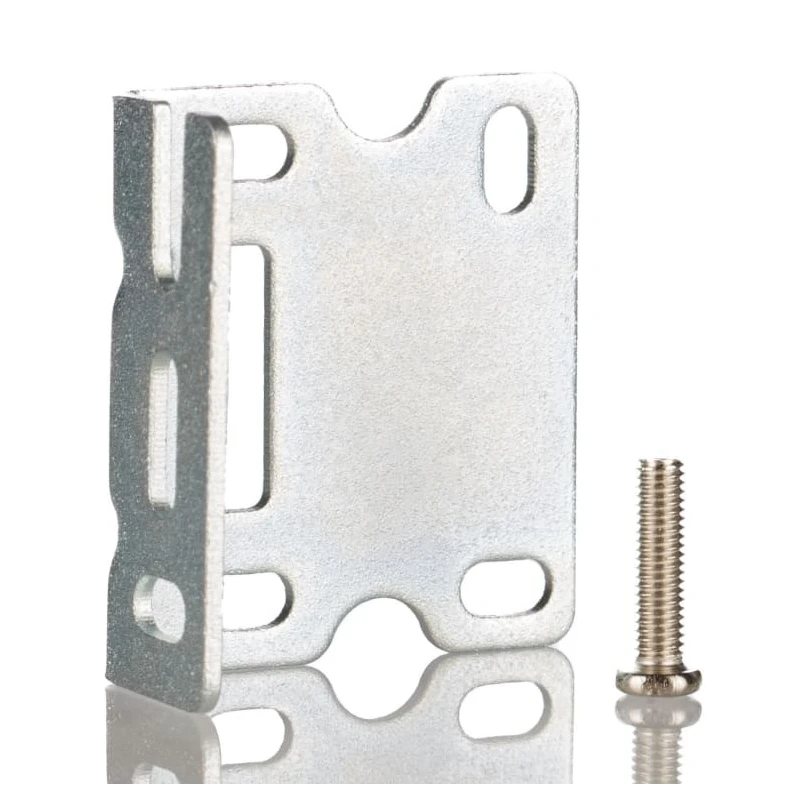

Mounting is versatile with included bracket and screw options, and suitable for conveyor belts and manufacturing plant automation. The sensor is part of the RS PRO PSE series, known for compact, economical sensors that are easy to install and replace.

Reliable polarized retro reflection detection up to 4 m. Switchable NPN NO/NC output type for versatile integration. IP67 rated for dust tight and water immersion protection. Robust housing with polymethyl methacrylate, polycarbonate, and ABS materials.

Fast 1 ms response time enhances automation speed. Installation through bracket and screw mount types. Max 30V DC voltage and 200mA current operation. Red light source suited for diverse applications. Operating temperature range from -25°C to 55°C for varied environments.

Emitter and receiver units should be used in pairs for optimal functionality.

This RS PRO Photoelectric Sensor is ideal for applications in industrial automation, conveyor systems, manufacturing process control, and other scenarios requiring reliable object detection. Its rugged construction and IP67 rating make it a suitable choice for environments exposed to dust and moisture.
