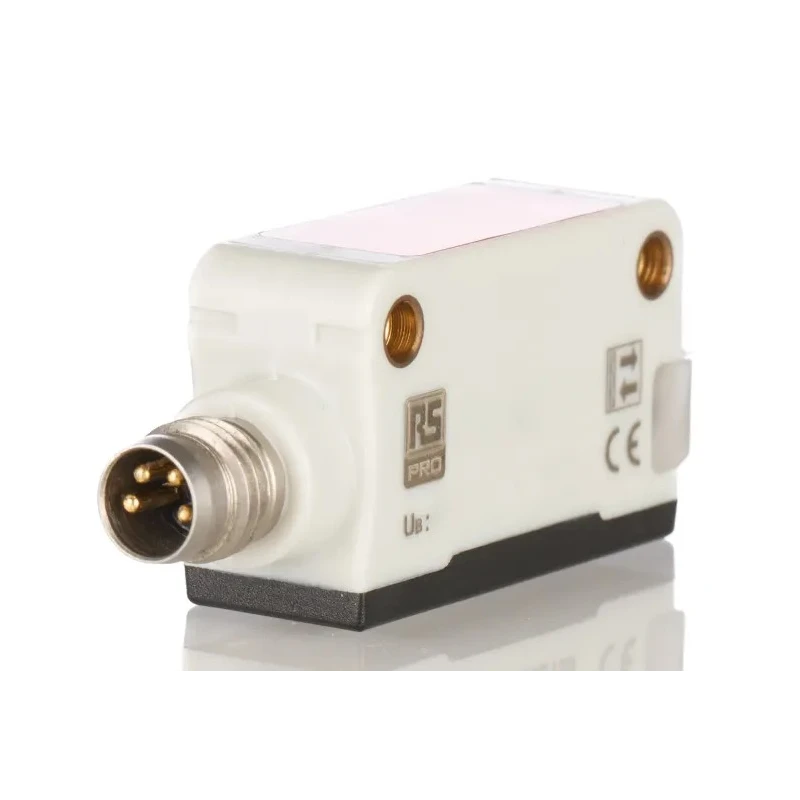

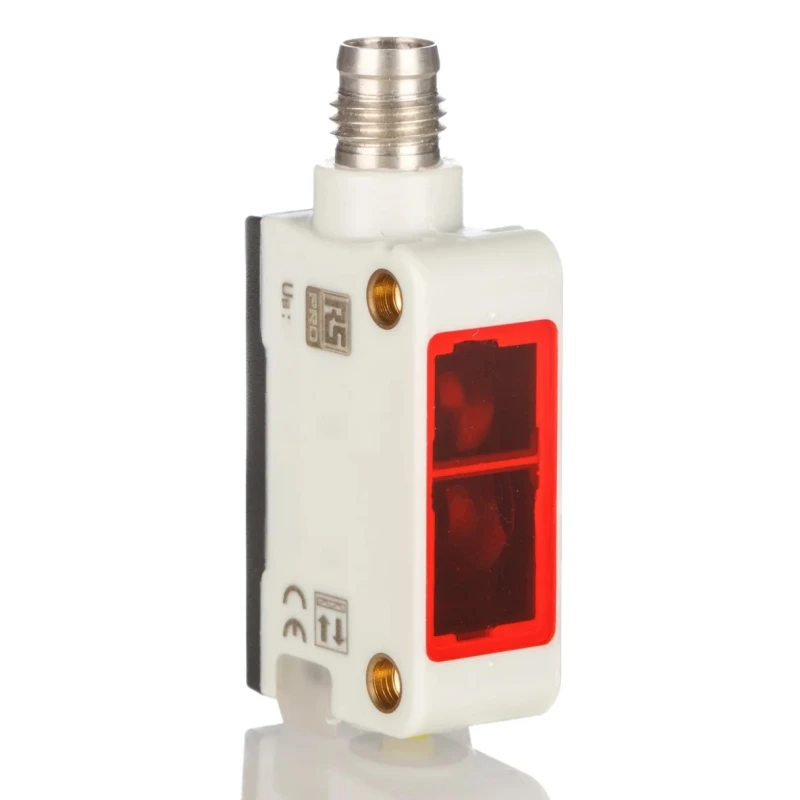

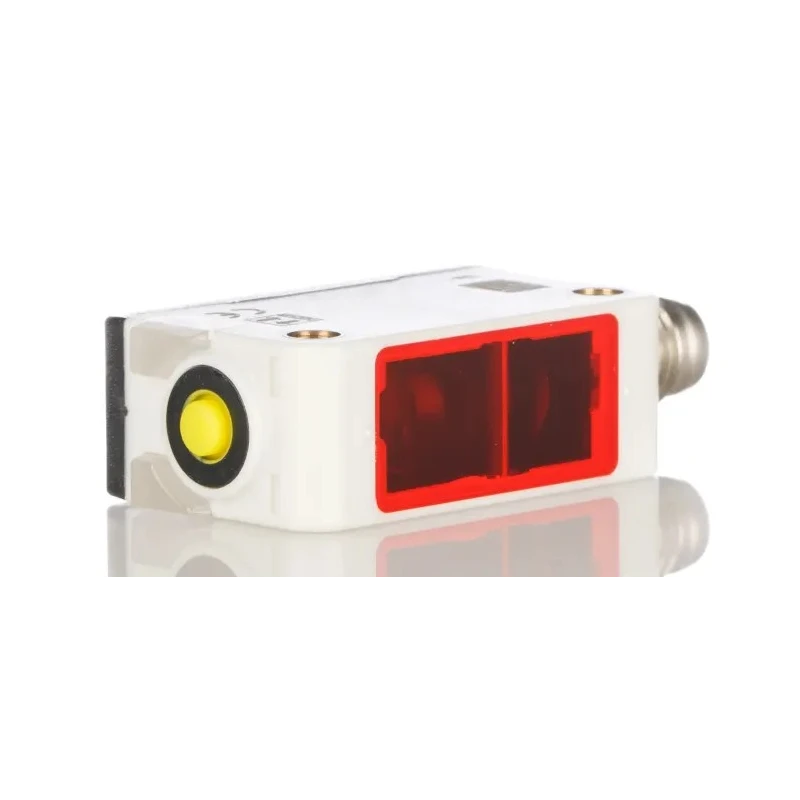

RS PRO Diffuse Reflection Photoelectric Sensor Block Style 0.3 m Detection Range NPN NO/NC Output IP67 IP Rated IP67

RS PRO IP67 Diffuse Reflection Photoelectric Sensor (Model: IP67) is a compact block-style sensor designed for precise non-contact detection of objects up to 0.3 meters away. Equipped with a red light source and switchable NPN normally open/normally closed outputs, this sensor excels in industrial automation settings requiring reliable presence sensing.

Constructed with durable ABS and polycarbonate housing, the sensor meets an IP67 ingress protection rating, making it resistant to dust and water ingress in challenging environments. It operates effectively within a temperature range from -25°C up to 55°C, and its fast response time of 0.5 milliseconds supports high-speed detection tasks.

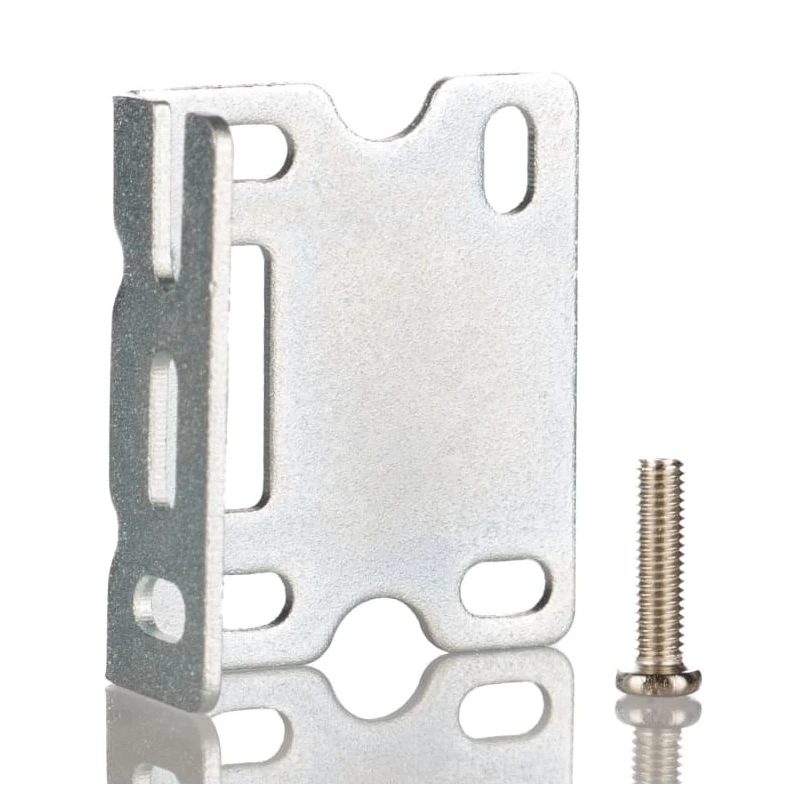

The sensor offers flexible mounting options using brackets and screws and supports electrical connections via an M8 connector or PVC cable, facilitating easy integration into existing setups. Its maximum operating voltage is 30 V DC with a maximum current rating of 200 mA. CE certification confirms its compliance with essential European standards.

This diffuse reflection sensor detects objects by emitting red light and sensing the reflected beam, making it suitable for detecting a variety of materials regardless of their composition. It is ideal for use in applications including manufacturing conveyor belt automation, packaging lines, and general material handling systems.

RS PRO's PSE series provides an economical and reliable range of photoelectric sensors with various detection types and ranges to meet diverse industrial requirements. For extended detection ranges, Polarized Retro-reflection and Through Beam Reflection versions are available separately.

Compact block sensor design suitable for industrial conveyor systems. Durable IP67 rated housing ideal for harsh environments. Red light source ensures precise diffuse reflection detection. Supports switchable normally open and normally closed outputs.

Operational temperature range from -25°C to 55°C for versatile applications. Connection via M8 connector or PVC cable for flexible installation. CE certified ensuring compliance with quality and safety standards. Quick 0.5 ms response time suitable for fast manufacturing processes.

Set contains one RS PRO Diffuse Reflection Photoelectric Sensor Model IP67. Explore the wide range of industrial sensors available at EnvMart designed for automation, manufacturing, laboratory, and commercial applications.
