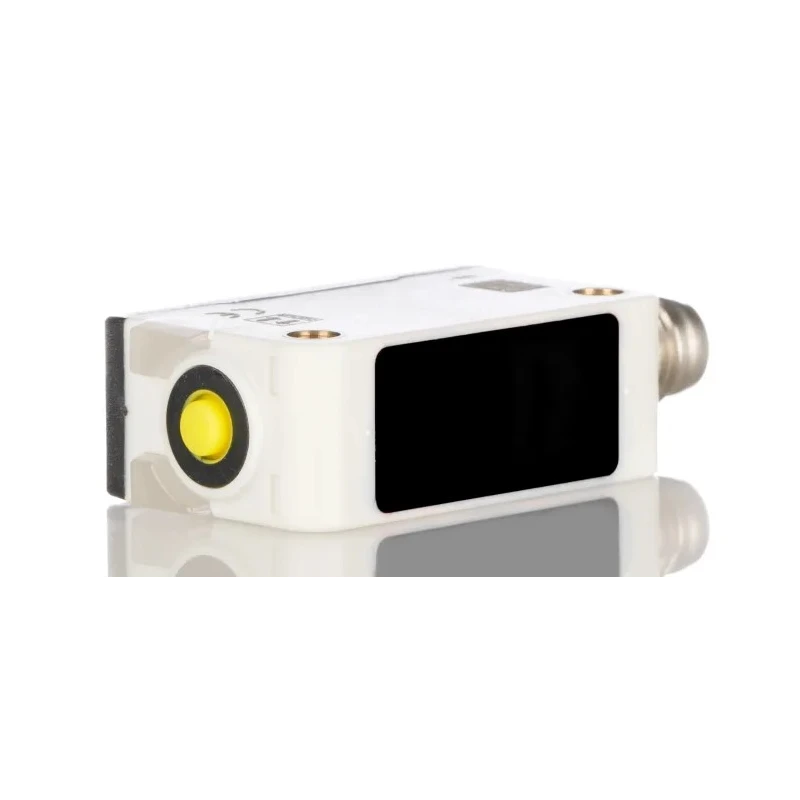

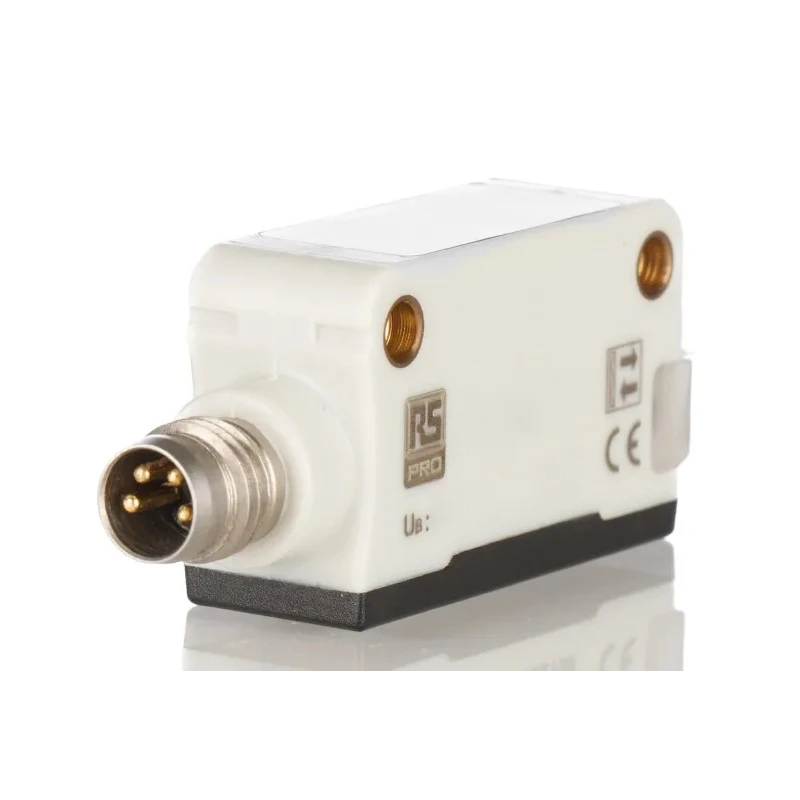

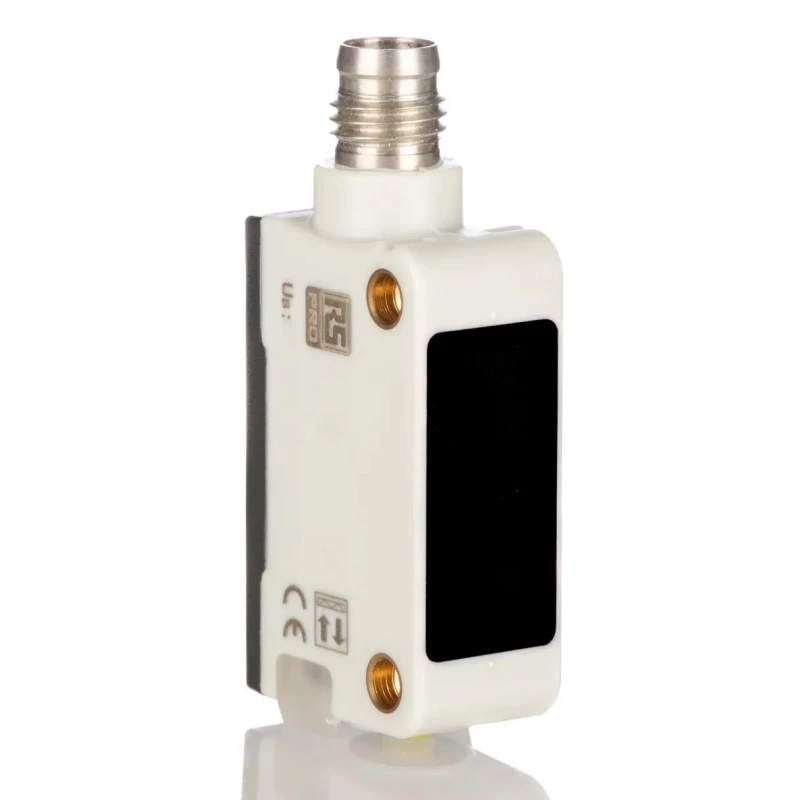

RS PRO Diffuse Reflection Photoelectric Sensor, Block Style, PNP NO/NC Output, M8 Connector, 30V DC, , 0.1 m Detection IP67

RS PRO IP67 Diffuse Reflection Photoelectric Sensor Block Style (Model IP67) is designed as a compact and economical solution for industrial automation applications. It provides dependable non-contact object detection by emitting infrared LED light and detecting reflected signals within a 0.1 m range. This sensor is ideal for harsh environments thanks to its IP67 rated housing made from durable ABS and polycarbonate materials, protecting against dust and water ingress.

The sensor outputs PNP NO/NC signals via an M8 connector terminal, compatible with most control systems and PLCs. It supports a maximum DC voltage of 30V and current rating up to 200mA, making it suitable for conveyor belts and industrial production lines where precise object presence verification is critical. Its fast 1 ms response time enables effective and timely signalling to control equipment.

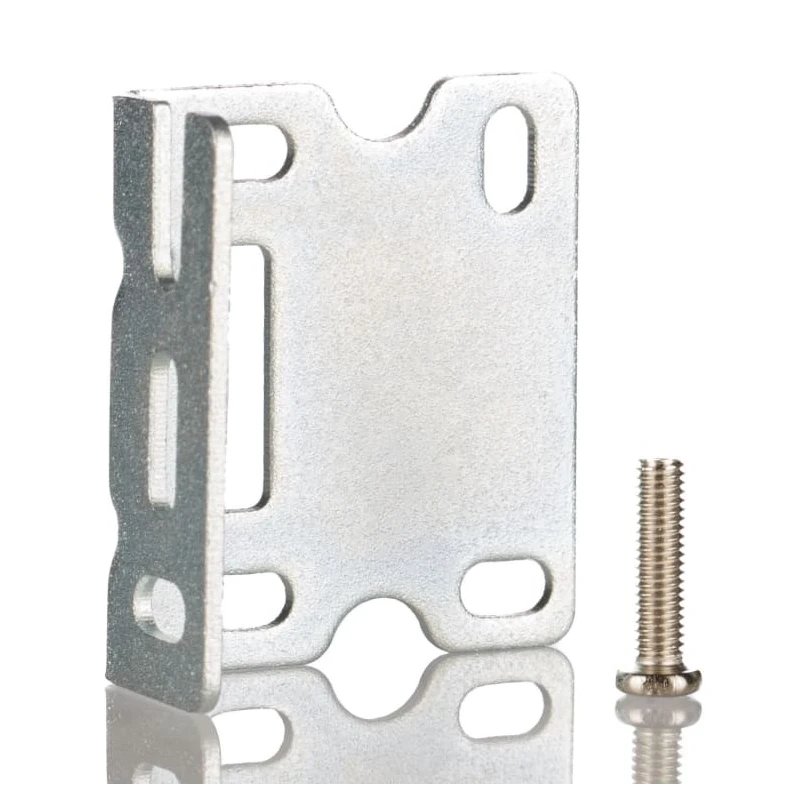

Operating reliably in temperatures from -25°C up to 55°C, this sensor is mounted easily using included brackets and screws. The RS PRO PSE series covers a variety of detection types, but this diffuse reflection variant is specifically tailored for objects that reflect infrared light within short distances.

Key technical features include switchable Normally Open / Normally Closed output, accurate one-click distance setting, and suitability for detecting high light or some transparent objects. The device complies with CE standards ensuring safety and electromagnetic compatibility.

Compact block style suitable for industrial automation. Robust IP67 rated ABS and polycarbonate housing. PNP NO/NC output with M8 connector terminal. Infrared LED light source for diffuse reflection detection. Operating voltage up to 30V DC and max 200mA current.

Fast response time of 1 millisecond. Wide operating temperature range from -25°C to 55°C. Bracket and screw mount type for secure installation. CE certified for industrial compliance. Ideal for conveyor belts and manufacturing automation.

The sensor is made in China and designed for a broad range of industrial, manufacturing, electrical, and automation use cases, where precise detection under varying environmental conditions is required. When using, pairs of emitter and receiver sensors ensure accurate object detection. RS PRO's reliable build and protective IP67 rating help maintain consistent sensor performance in challenging industrial contexts.

Discover the full range of RS PRO sensors and automation equipment at EnvMart to support your industrial control and monitoring needs.
