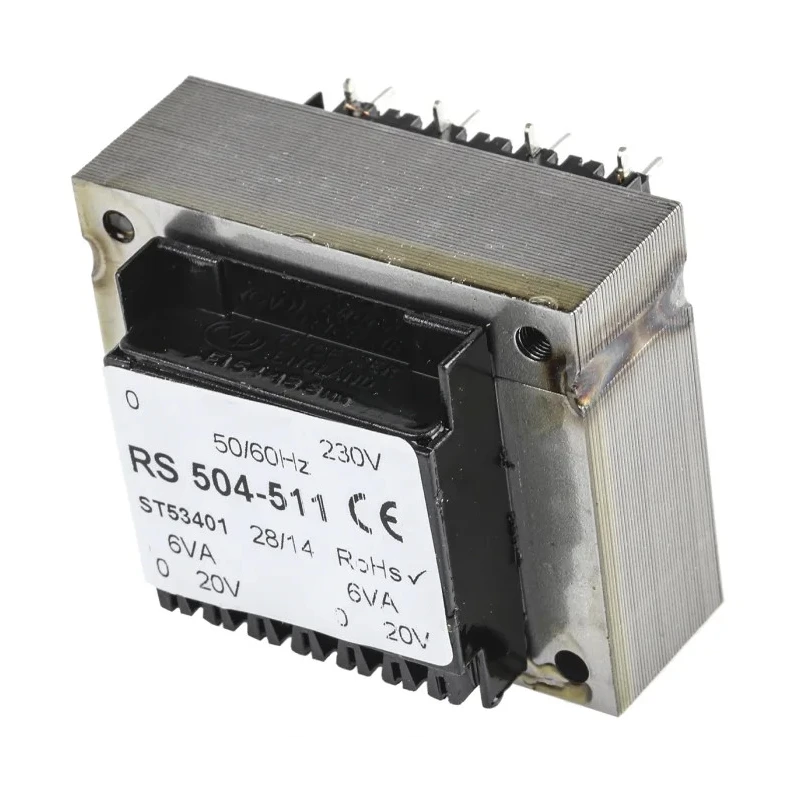

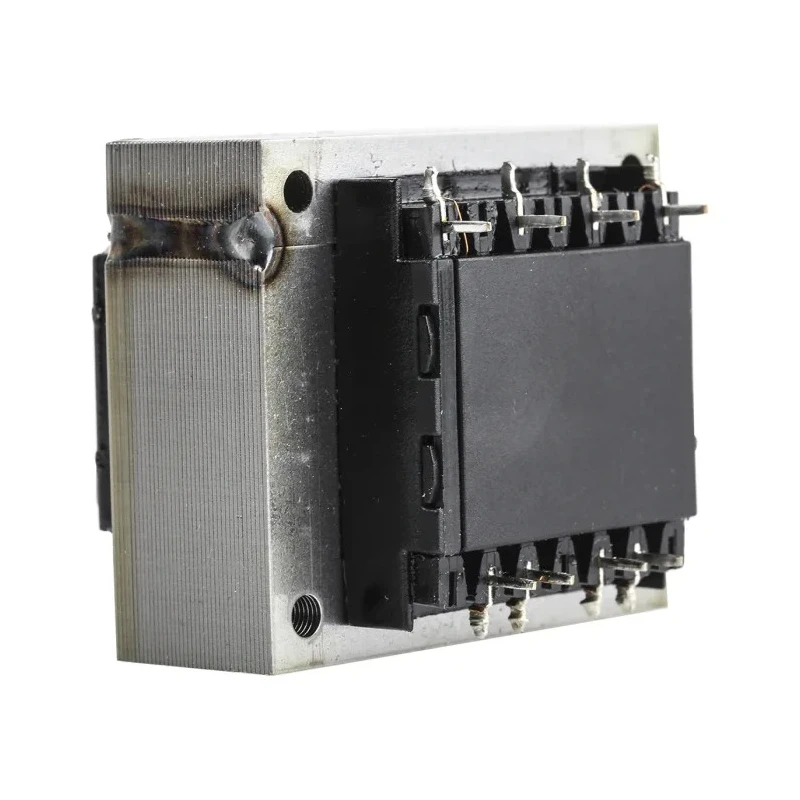

RS PRO 5 to 24 V AC 2 Output Through Hole PCB Transformer, 230 V AC Primary, Dual Secondary, 12 VA Power 504-511

RS PRO 504-511 5 to 24 V AC 2 Output Through Hole PCB Transformer is engineered for efficient power supply conversion on printed circuit boards. Featuring a primary voltage rating of 230 V AC and dual secondary outputs ranging from 5 to 24 V AC, this transformer supports various low voltage AC supply needs.

The device utilizes dual secondary windings housed in a fully shrouded bobbin with extra pins, allowing secure and stable through hole PCB mounting. Measuring 54 mm length, 45 mm width, and 30.41 mm depth, it offers a compact footprint ideal for constrained PCB layouts.

It is built to operate safely under a maximum temperature of 130°C and supports operating frequencies from 50 Hz to 60 Hz, fulfilling typical mains AC supply conditions. The transformer undergoes comprehensive electrical and flash testing and is designed per recognized standards such as ASNZS 61558.1, ASNZS 61558.6, IEC BS EN 61558-1 and -6, ensuring reliable insulation and safety performance.

Applications include industrial automation, electronic instrumentation, power supply units, laboratory equipment, and general PCB-based electrical isolation and voltage adaptation tasks. The product is RoHS and CE certified, indicating compliance with environmental and safety regulations.

With a gross weight of 400 grams and dual secondary winding configuration, it provides flexibility for series or parallel connection arrangements to achieve various voltage and current outputs as needed by the specific application.

Designed for 230 V AC primary voltage operation with dual secondary voltage range from 5 to 24 V AC. Through hole mount type with a compact size of 54 x 45 x 30.41 mm for easy PCB integration. Supports frequencies between 50 Hz to 60 Hz ensuring compatibility with standard AC supplies.

Constructed with dual secondary windings, tested electrically and flash tested for safety and performance. Capable of operating at maximum temperature up to 130°C for enhanced durability and reliability. Fully shrouded bobbin construction with extra pins for secure mounting and full varnish impregnation.

Meets international standards including ASNZS 61558.1, ASNZS 61558.6, IEC BS EN 61558-1 and 61558-6, RoHS, and CE compliant. Weighs approximately 400 g, suitable for industrial, electronic, and power supply applications requiring isolation and voltage transformation.

Explore more PCB Transformers and power supply solutions at EnvMart for diverse industrial and electrical engineering needs.
