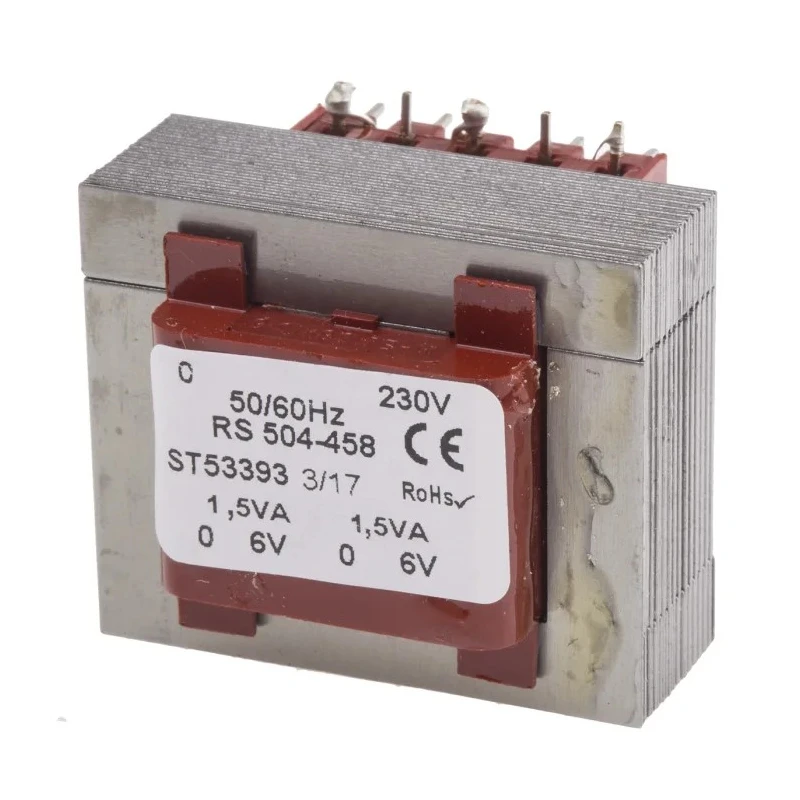

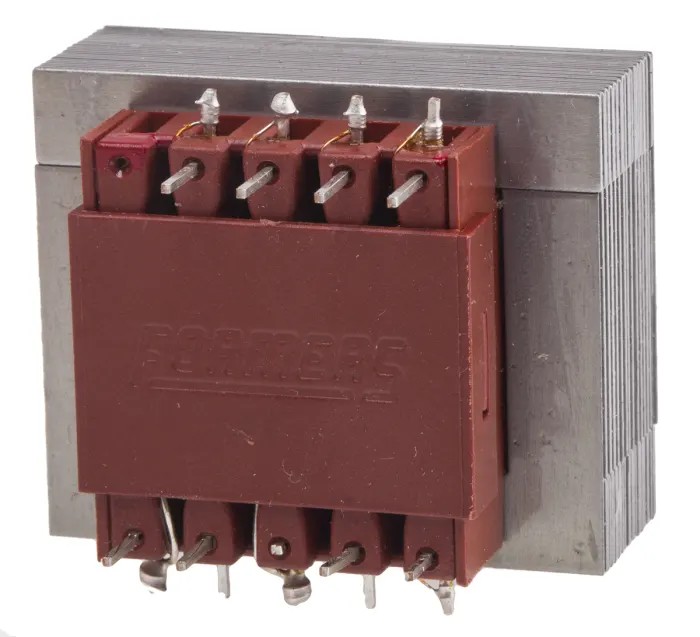

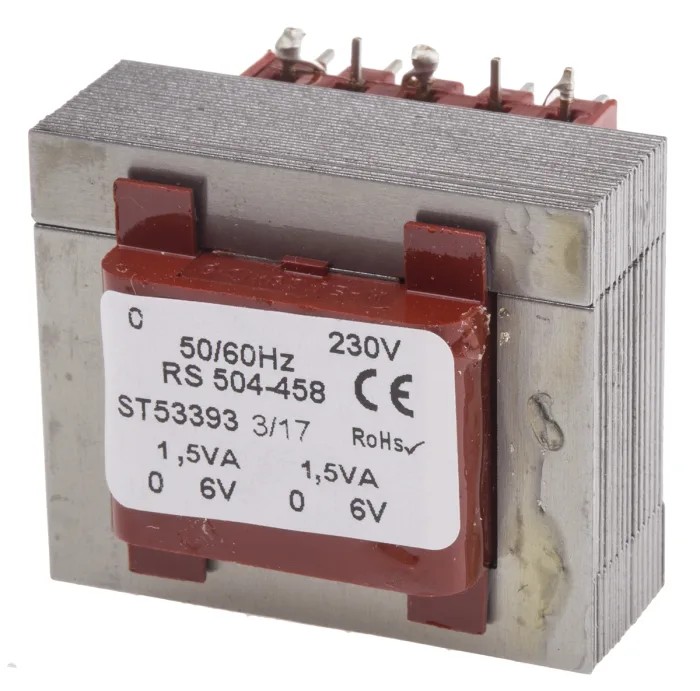

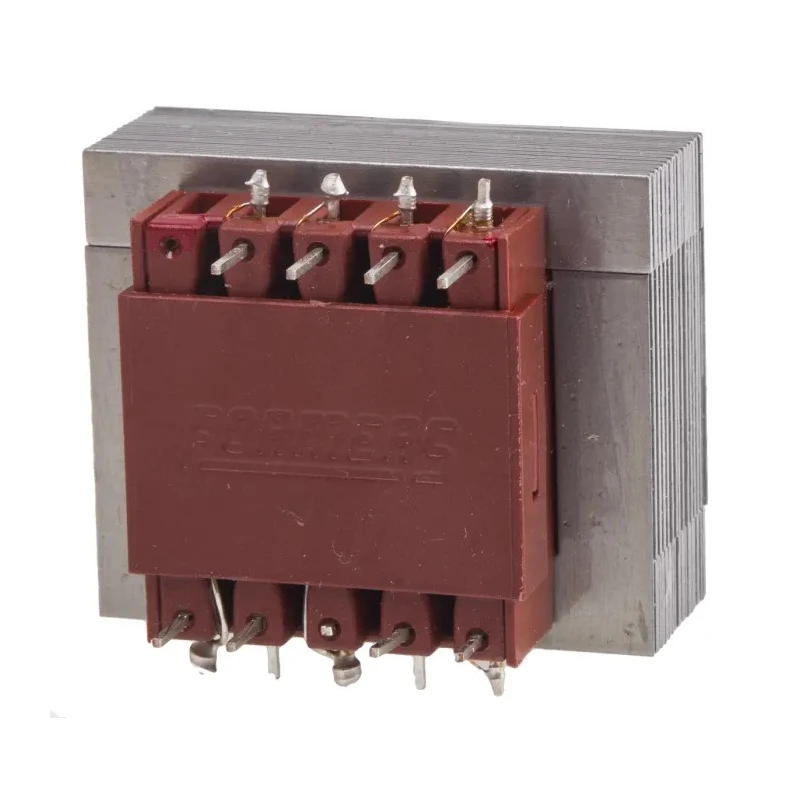

RS PRO 6 V AC 2 Output Through Hole PCB Transformer 3 VA 230 V AC Primary 504-458

RS PRO 504-458 6 V AC 2 Output Through Hole PCB Transformer is a flame retardant, laminated open-frame transformer engineered for efficient electrical isolation and power conversion in electronic circuits.

It features a single primary winding designed for 230 V AC input voltage and dual secondary windings providing two independent 6 V AC outputs, each with a power rating of 3 VA. These outputs can be connected in series or parallel to suit different voltage and current requirements, making it suitable for varied industrial and commercial PCB applications.

The unit is constructed with UL94-V0 flame retardant materials, fully varnished impregnated windings, and a thermal fuse embedded in the primary winding to protect against overload and short circuits, enhancing safety and reliability during operation.

This transformer meets CE, UKCA, and RoHS compliances and adheres to industry standards such as EN 61558 (EN 60742) and EN 60950, ensuring compatibility and safety in electronic and electrical installations.

Its compact design, with a length of 38 mm, width of 35 mm, and depth of 30 mm, allows easy integration into through hole PCB mount layouts. The product’s maximum operating temperature rating is 130°C, and it operates efficiently within a frequency range of 50 to 60 Hz, making it suitable for power supply and distribution in industrial, laboratory, and commercial electronic devices.

Features a single primary 230 V AC winding with dual secondary 6 V AC outputs rated at 3 VA each. Flame retardant UL94-V0 materials with thermal fuse protection ensure safety. Fully shrouded and varnished impregnated windings enhance durability.

Compliant with CE, UKCA, and RoHS regulations and tested to EN 61558 and EN 60950 standards. Compact through hole PCB mounting design for ease of installation. Operating temperature up to 130°C and frequency range 50 - 60 Hz.

Designed and manufactured in Poland for quality assurance.

This PCB Transformer is ideal for use in industrial automation systems, power supply units, electronic instrumentation, commercial appliances, and other electrical applications requiring isolated power conversion with low voltage AC outputs.
