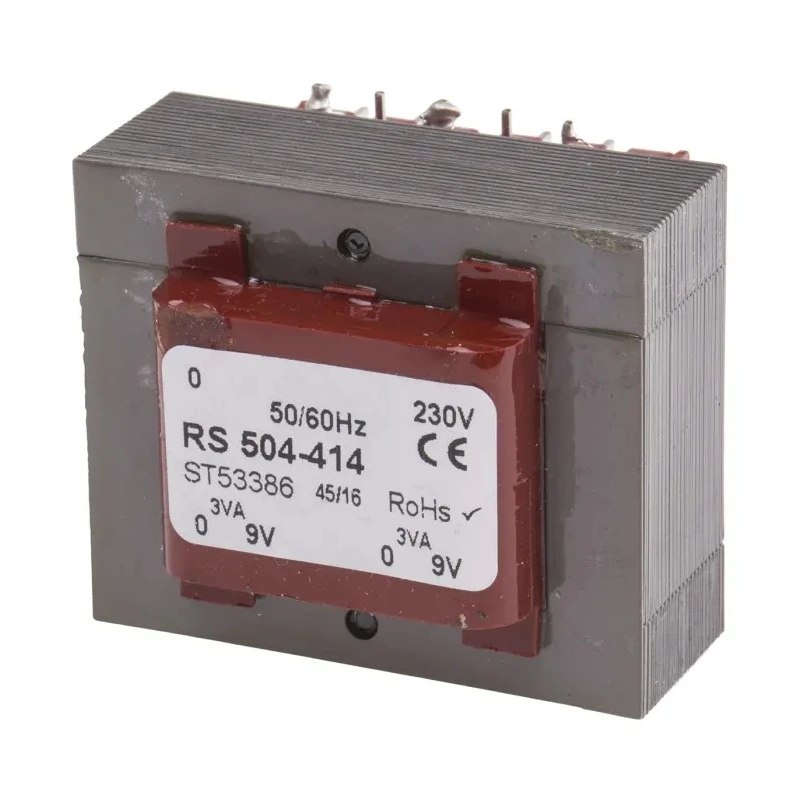

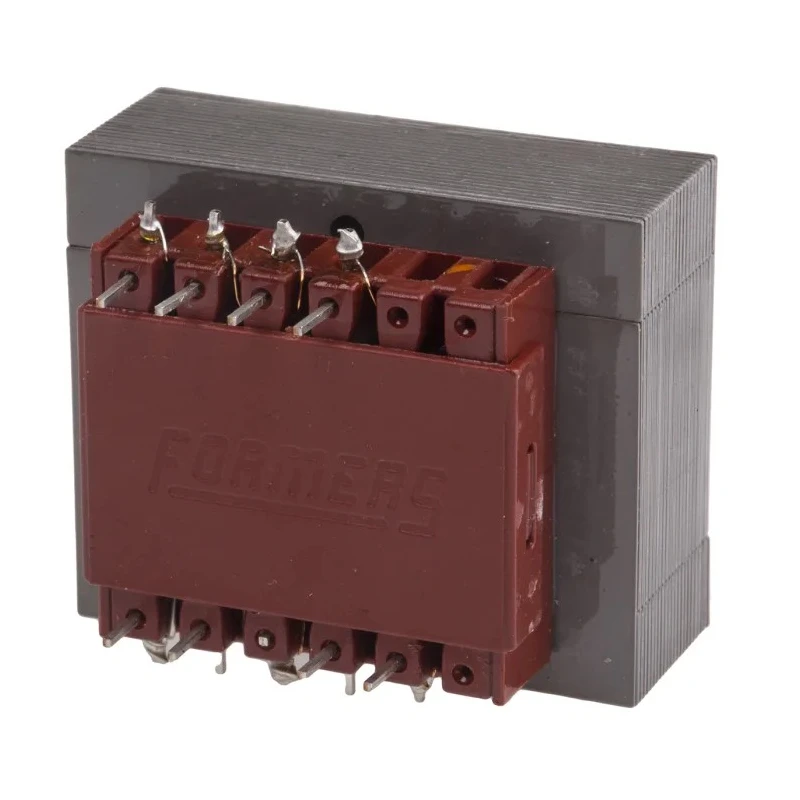

RS PRO 6 to 15 V ac 2 Output Through Hole PCB Transformer, AS/NZS 61558.2.6, AS/NZS 61558.1, IEC/BS/EN 61558-2-6 504-414

RS PRO 504-414 6 to 15 V ac 2 Output Through Hole PCB Transformer is engineered for industrial and electronic applications requiring reliable power supply and safety compliance.

This transformer operates with a primary voltage of 230 V ac and delivers a secondary output voltage range from 6 to 15 V ac through two independent outputs. The outputs can be connected in series or parallel, providing flexibility to meet varying voltage and current requirements.

Constructed with flame retardant materials rated to UL94-V0, it ensures enhanced safety against fire hazards. The integrated thermal fuse in the primary winding offers protection from overload and short circuit conditions, enhancing durability and operational safety.

Its compact design with dimensions 43 mm length, 36 mm width, and 33 mm depth allows straightforward PCB mounting. Fully shrouded windings and extra pins facilitate secure mounting and shielding for sensitive circuitry.

The transformer achieves an efficiency of 82%, operates comfortably up to a maximum temperature of 130°C, and functions within a frequency range of 50 to 60 Hz. Certified to international standards including AS/NZS 61558.2.6, AS/NZS 61558.1, IEC/BS/EN 61558-2-6, RoHS, and CE, it meets rigorous safety and quality benchmarks.

This product is ideally suited for industrial electronics, power supplies, manufacturing equipment, and commercial electronic assemblies requiring robust and compliant PCB Transformer components.

Operates with primary voltage 230 V ac and secondary voltage 6 to 15 V ac. Two output windings providing flexible connection options. Thermal fuse for overload and short circuit protection. Flame retardant materials to UL94-V0 standard.

Compact through hole PCB mounting design. Compliance with multiple international safety standards. Efficiency rated at 82% with max operating temperature 130°C. Fully shrouded windings and secure mounting pins. Suitable for industrial, manufacturing, and commercial electronic applications.
