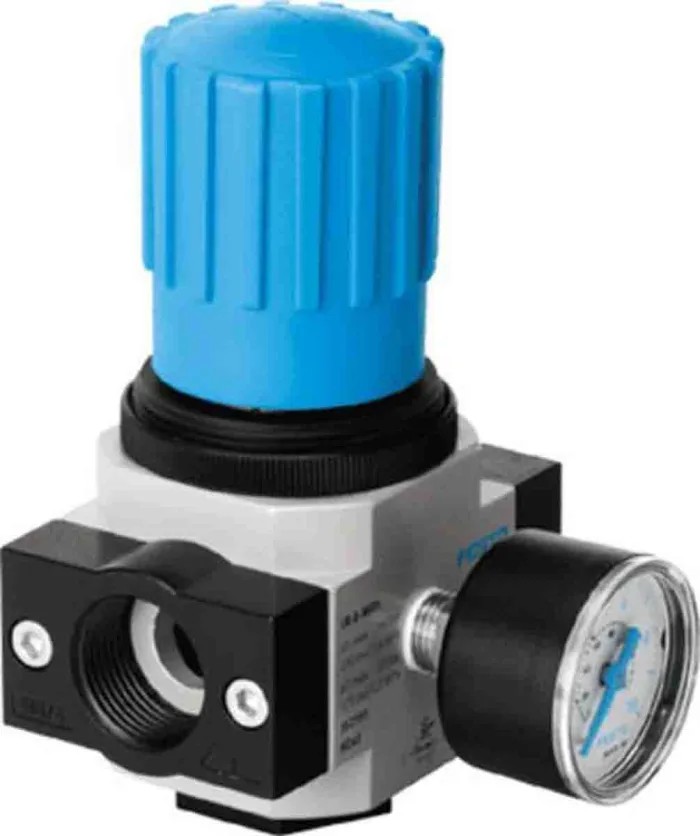

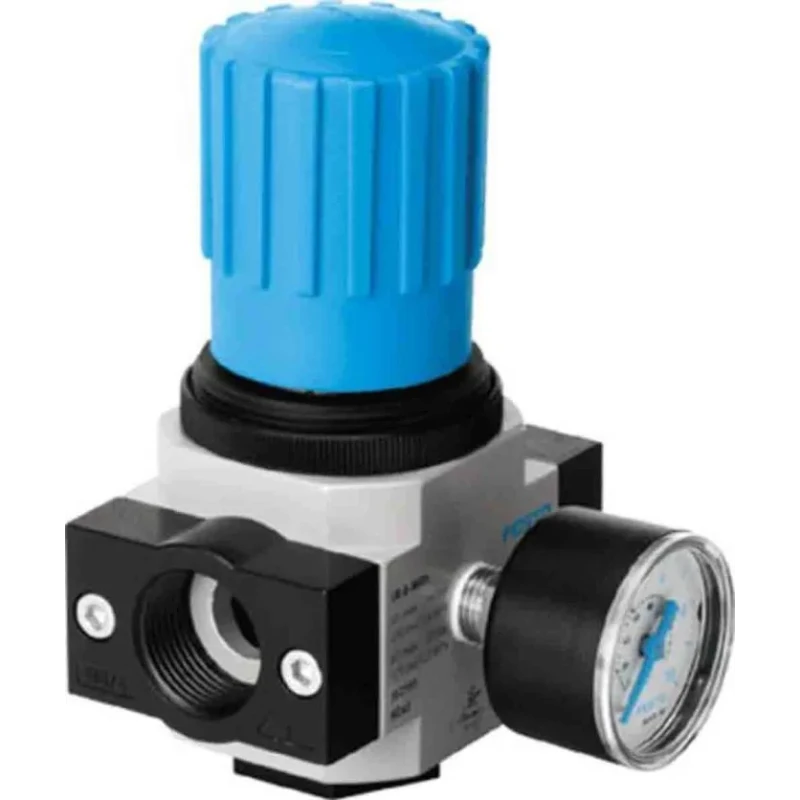

Festo D Series Pneumatic Regulator G 1/8, Die Cast Zinc, Nitrile Rubber, 0.5 to 12 Bar, Model LR-1/8-D-MINI

Festo LR-1/8-D-MINI Pneumatic Regulator G 1/8 is a compact, mini-size regulator designed for controlling and maintaining precise pressure in pneumatic automation systems. The regulator features an inlet and outlet connection size G 1/8 with a durable die cast zinc body combined with nitrile rubber seals ensuring reliability and resistance to wear.

This model can handle a maximum operating pressure of 16 bar and provides an adjustable outlet pressure range from 0.5 bar up to 12 bar. The direct diaphragm control mechanism minimizes pressure hysteresis, providing accurate regulation even at higher flow rates. It includes a lockable rotary knob allowing secure locking of set pressure values to prevent accidental changes during operation.

It is suitable for use over a wide ambient temperature range from -10°C to 60°C, making it adaptable to various industrial and environmental conditions. The regulator permits installation in any assembly position and is capable of delivering a nominal flow rate of 800 liters per minute, supporting efficient air flow control required in many pneumatic applications.

Compliance with RoHS directives, maritime classification, and ISO8573-1:2010 (7:4:4) standard ensures this product meets high-quality manufacturing and environmental safety criteria. Designed as part of the Festo D Series, it integrates seamlessly with other D Series compressed air preparation units.

The unit is repairable by the end user, promoting sustainability by extending product lifespan and reducing waste. Typical uses span across industrial automation, manufacturing lines, pneumatic control systems, and other fluid power applications.

Compact design suitable for industrial pneumatic systems. Material constructed from die cast zinc and nitrile rubber for durability. Operates with a maximum input pressure of 16 bar and output pressure range from 0.5 to 12 bar.

Ambient operating temperature from -10°C to +60°C supports diverse environments. Includes lockable rotary knob for secure pressure setting. Offers high flow rate capability of up to 800 l/min for efficient air regulation.

Compliance with RoHS, Maritime classification, and ISO8573-1:2010 (7:4:4) standards. Designed for repairability by the end user to extend service life. Explore the full range of Pneumatic Regulators and accessories on EnvMart for precise fluid power management solutions.
