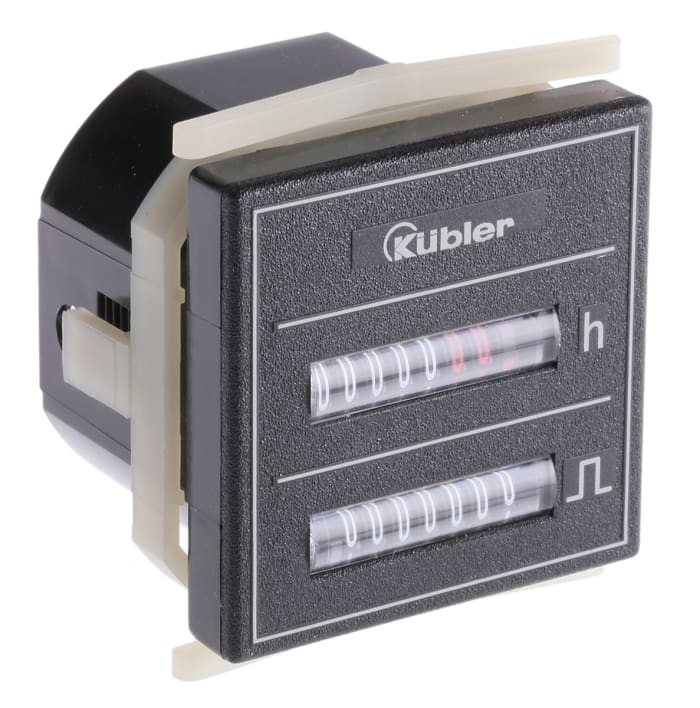

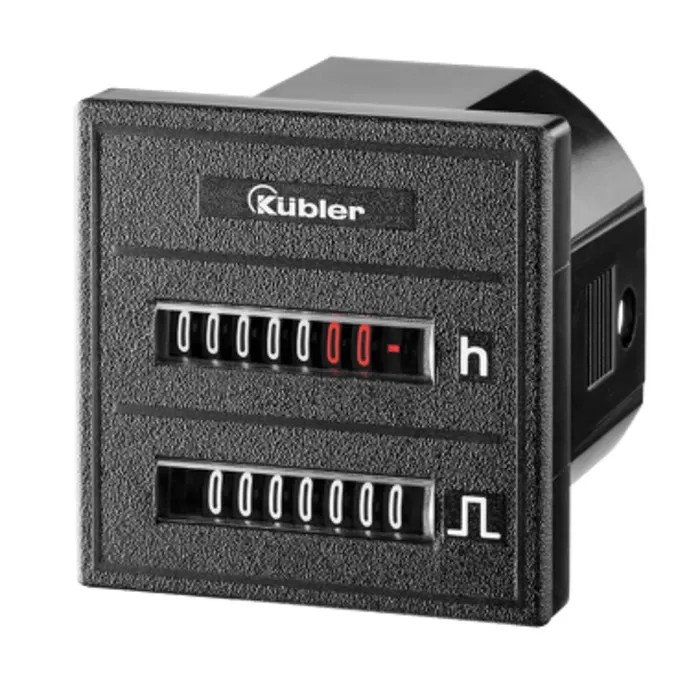

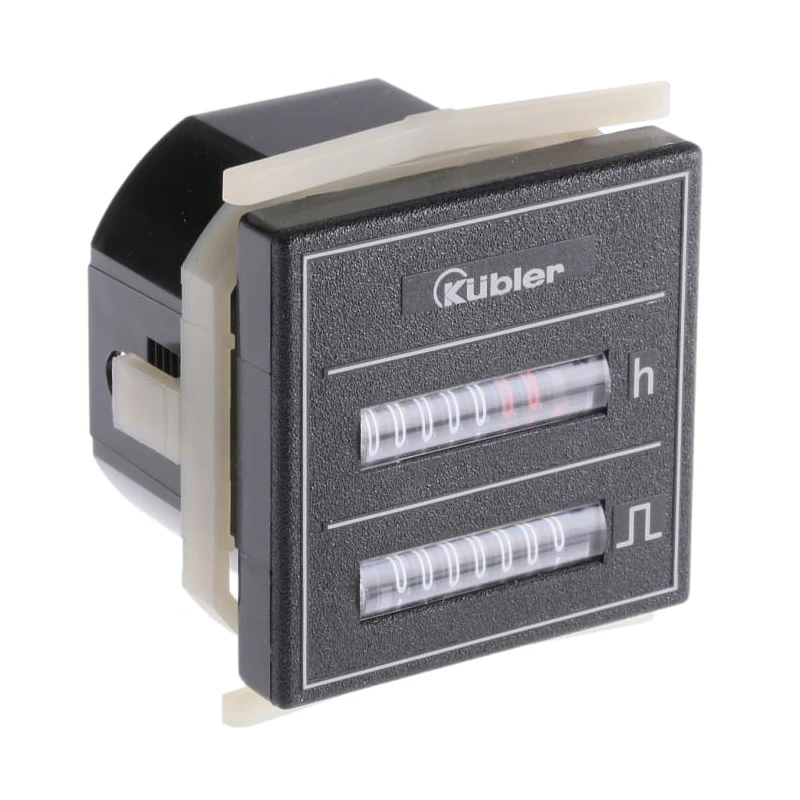

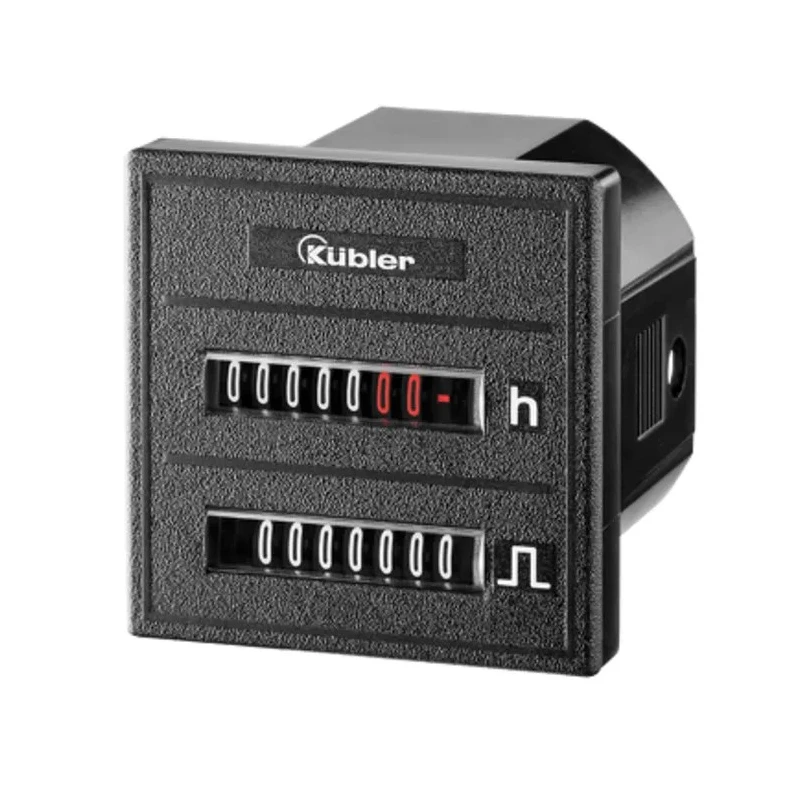

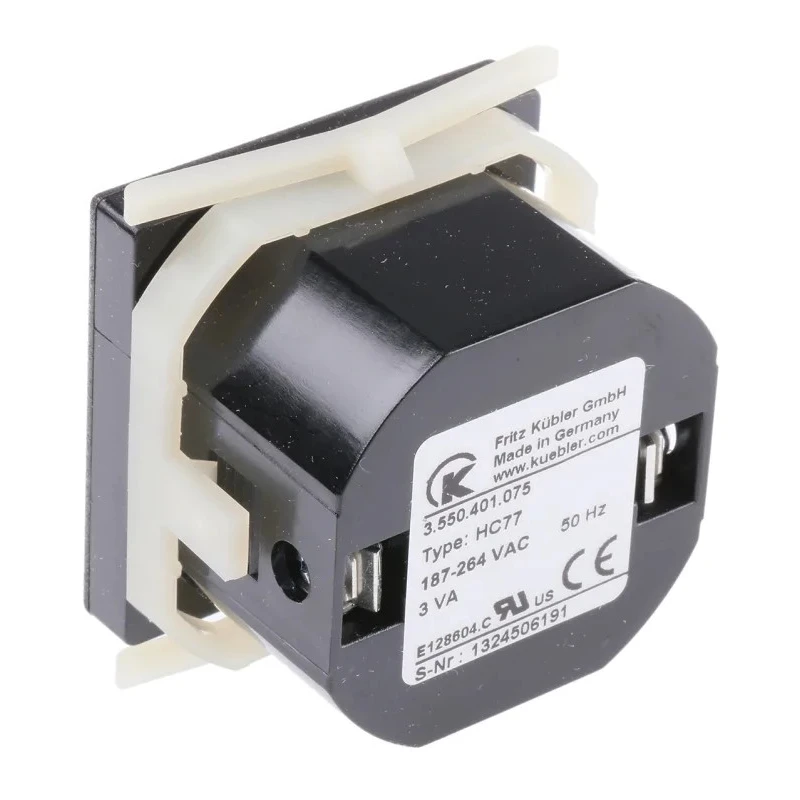

Kubler HC 77 7 Digit Analogue Timer Counter Panel Mount 264V AC 3.550.401.075

Kubler 3.550.401.075 7 Digit Analogue Timer Counter is a high-quality panel mount electromechanical counter designed for accurate and reliable time and count measurement. Operating on a supply voltage of 264V AC, this device supports an adding count mode with an analogue display for precise reading of timing and counting data.

The counter features a digit height of 4mm and a compact mounting dimension requiring a 46mm x 46mm cutout with a total panel depth of 30mm. It functions within an operating temperature range from -15°C up to 50°C, ensuring operation in a variety of environments.

This model has a minimum indicating range of 0 to 99999.99 hours for the timer and a totaliser maximum measurement capacity of 9,999,999 counts, making it suited for both incremental counting and timing applications.

Designed with high shock resistance and long service life, it includes an IP52 protection class on the front face for protection against dust and limited water ingress. The device uses a screw connection type and does not support reset functionality, making it ideal for logging accumulated operational hours and counts securely.

The Kubler HC 77 Timer Counter finds applications in industrial fields such as general counting tasks, service intervals for measurement systems, operation in small appliances, UV lamp monitoring, and automotive display panel usage. It conforms to CE standards and is UL / C-UL recognised, validating its safety and reliability for industrial and commercial deployment.

The device features 7 digit adding count mode with analogue display. Operates within temperature range of -15°C to 50°C ensuring reliable performance. Mounting requires a 46mm x 46mm cutout with a depth of 30mm for installation.

The counter supports a maximum measurement of 99999.99 and a totaliser range of up to 9999999. Engineered with shock resistance and long service life for industrial applications. Protected with an IP52 rating on the front side for dust and water resistance.

Constructed for various uses including general counting, service interval measurement, small appliances, UV lamps, and automotive display panels. Complies with CE standards and is UL / C-UL recognised for safety and quality.
