Sensirion Liquid Flow Meter SLS-1500 Series to 40ml/min, 1/4-28 Flat Bottom SLS-1500 Liquid Flow Meter

Free Delivery in India | Lowest Global Shipping Charges

Sensirion Liquid Flow Meter SLS-1500 Series to 40ml/min, 1/4-28 Flat Bottom SLS-1500 Liquid Flow Meter

Name: Sensirion Liquid Flow Meter SLS-1500 Series to 40ml/min, 1/4-28 Flat Bottom SLS-1500 Liquid Flow Meter
Brand: Sensirion
SKU: 163591
Price: 1960.88 USD
Availability: InStock



Category Flow Meter Brand Sensirion Condition New

Specifications

Country of Origin	India
Brand	Sensirion
Model	SLS-1500 Liquid Flow Meter
Series	SLS-1500
Maximum Operating Temperature	50°C
Maximum Flow Rate	40ml/min
Wetted Materials	Polytetrafluoroethylene, 904L Stainless Steel, Polyetheretherketone
Connection Thread Size	1/4-28 Flat Bottom

Key Features

The flow meter provides accurate bi-directional flow measurement for liquids.
It uses high performance 904L stainless steel, PTFE, and PEEK for exceptional biocompatibility.
The sensor features a thin-walled, straight tube for enhanced sensitivity.
Maximum operating temperature is 50°C, suitable for various applications.
The device complies with WEEE, RoHS, REACH, and other important environmental standards.
The modular electrical interface enables fast 20 ms response times.
High chemical compatibility ensures durability in harsh fluids.
Compact and robust design for industrial, laboratory, and automation environments.

Product Description

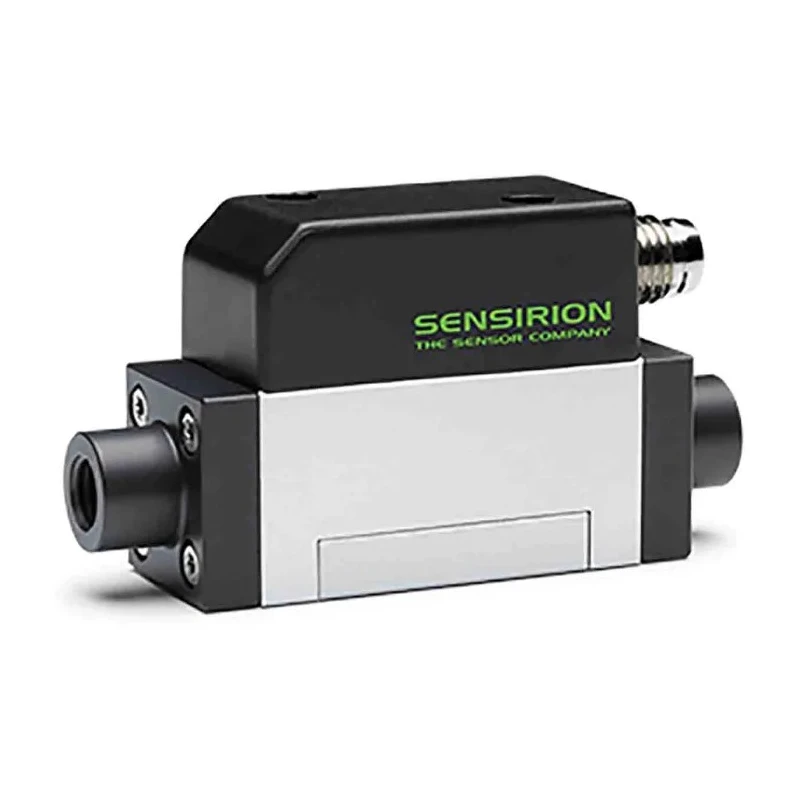

The Sensirion SLS-1500 Liquid Flow Meter is engineered for precise, non-invasive monitoring of dynamic liquid flow rates up to 40ml/min with a 1/4-28 flat bottom connection. This sensor is equipped with wetted parts made from premium materials including 904L stainless steel, polytetrafluoroethylene (PTFE), and polyetheretherketone (PEEK), ensuring excellent biocompatibility and chemical resistance.

This flow meter features a specially designed thin-walled, straight tube that significantly enhances sensitivity for accurate flow measurements in both directions. Its maximum operating temperature of 50°C allows reliable performance across a range of industrial, laboratory, and control system environments.

The SLS-1500 series complies with several international environmental standards including WEEE 2002/96/EC, RoHS 2002/65/EC, REACH 1907/2006/EC, EN 50081-2, and EN 50082-2, underscoring its environmentally responsible design. The sensor's modular electrical interface delivers a rapid 20 ms response time, critical for real-time process control applications.

Applications for this flow meter include medical device manufacturing, chemical processing, fluid delivery systems, and quality control in laboratories. The high chemical compatibility and robust construction make it suitable for use with aggressive media without compromising measurement integrity.

This product represents a reliable choice for engineers and technicians requiring precise flow measurements with minimal system disturbance. The flow meter's measurement path is a straight, thin-walled tube designed for sensitive liquid flow detection.

Wetted materials include PTFE, 904L stainless steel, and PEEK for chemical and biocompatible resilience. Supports a maximum flow rate of 40ml/min bi-directionally with excellent accuracy. Operates reliably up to 50°C maximum temperature.

Designed to meet global environmental regulations and standards. Quick response time of 20 milliseconds for dynamic measurements. Ideal for industrial automation, laboratory instrumentation, and medical device fluid monitoring.

Explore the Sensirion brand and SLS series Flow Meters for precision liquid flow sensing solutions on EnvMart.
