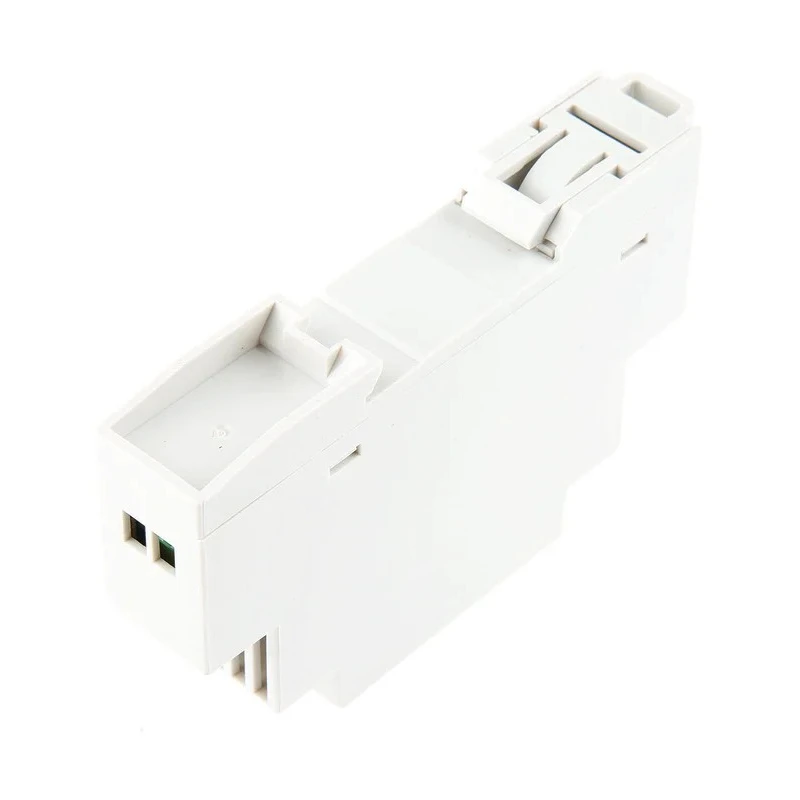

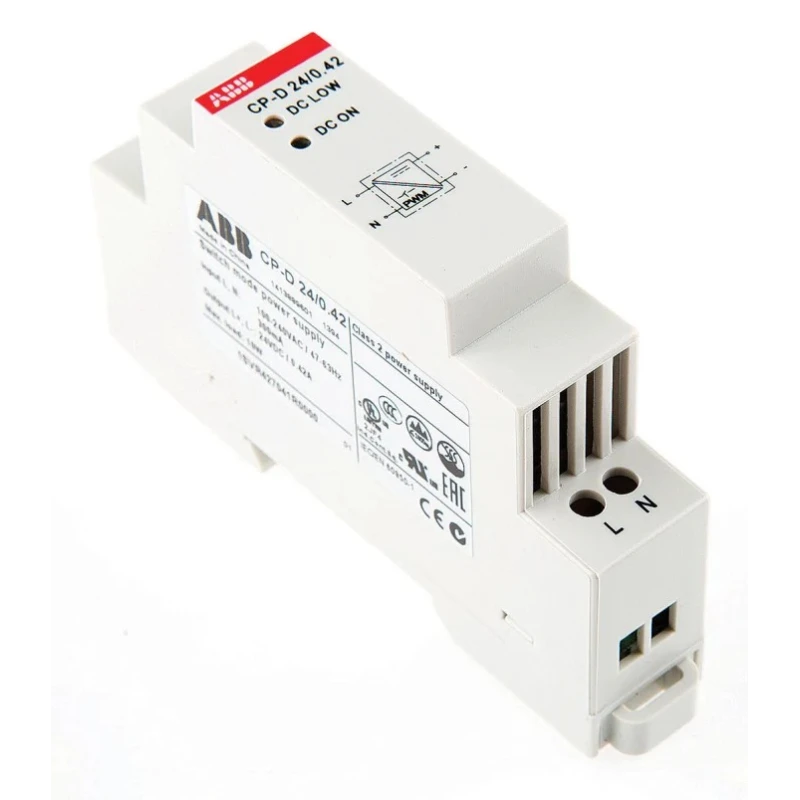

ABB CP-D Series Switched Mode DIN Rail Power Supply 240V AC/DC Input 24V DC 400mA Output 10W 1SVR427041R0000

Free Delivery in India | Lowest Global Shipping Charges

ABB CP-D Series Switched Mode DIN Rail Power Supply 240V AC/DC Input 24V DC 400mA Output 10W 1SVR427041R0000



Category Power Supplies Brand ABB Condition New

Specifications

Country of Origin	Taiwan
Brand	ABB
Power	10W
Efficiency	80%
Height	91mm
Model	1SVR427041R0000
Depth	57.5mm
IP Rating	IP20
Width	18mm
Series	CP-D
Output Current	400mA
Maximum Operating Temperature	70°C
Sub Type	Switched Mode
Minimum Operating Temperature	-25°C
Number of outputs	1
Maximum Input Voltage	240V ac
Electrical Phase	1
Standards/Approvals	CE, cUL/UL
Maximum Output Voltage	24V dc
Minimum Input Voltage	100V ac

Key Features

Compatible with an input voltage range from 100V to 240V AC and 120V to 375V DC.
Provides stable 24V DC output with 400mA current at 10 watts power capacity.
Designed with a compact form factor measuring 91mm height, 18mm width, and 57.5mm depth for DIN rail mounting.
Operating temperature range from -25°C to 70°C, suitable for industrial environments.
Features an IP20 rating ensuring protection against solid objects but not water.
Includes integrated input fuse and short circuit protection for safety and reliability.
Typical efficiency is 80%, reducing heat generation and eliminating the need for fans or heatsinks.
Complies with CE, cUL, and UL approvals for quality and safety standards.

Product Description

ABB 1SVR427041R0000 CP-D Series switched mode DIN rail power supply is engineered for reliable power delivery in industrial and commercial electrical applications. It accepts a wide input voltage range of 90 to 264V AC or 120 to 375V DC, stepping down to a steady 24V DC output at 400mA current and 10W power output. This power supply ensures stable operation with continuous load adjustment capability to compensate for voltage drops caused by long cable runs.

Its compact dimensions - 91mm height, 18mm width, and 57.5mm depth - facilitate easy DIN rail mounting in tight electrical enclosures. The unit operates efficiently in harsh conditions with a broad temperature tolerance from -25°C to +70°C and an IP20 ingress protection rating, which safeguards against solid objects and reduces shock risk during handling.

Designed for safety and longevity, the device features internal input fuses and continuous short-circuit protection mechanisms. With a typical efficiency of 80%, the power supply minimizes energy loss as heat, obviating the need for additional cooling components such as fans or heatsinks. Certified under CE, cUL, and UL standards, it meets stringent international regulatory requirements.

Common industrial applications include HVAC systems, process control, and pumping systems, where a stable DC power source is critical. The power supply delivers buffering time of at least 30ms to reduce unnecessary system reboots during brief mains interruptions.

Compatible with 90-264V AC and 120-375V DC input voltages. Stable 24V DC, 400mA output current with 10W power rating. Compact design for easy DIN rail integration. Wide operating temperature range from -25°C to 70°C. IP20 rated for safety against solid ingress.

Features integrated protection against overcurrent and short circuits. Efficient design with 80% typical efficiency. Conforms to CE, cUL, and UL safety approvals. Manufactured in Taiwan, Province Of China.

For professionals seeking a dependable, efficient power supply solution for compact DIN rail installations, ABB’s CP-D 1SVR427041R0000 delivers high performance and safety. Explore more Power Supplies and transformers within EnvMart’s comprehensive industrial electronics category.
