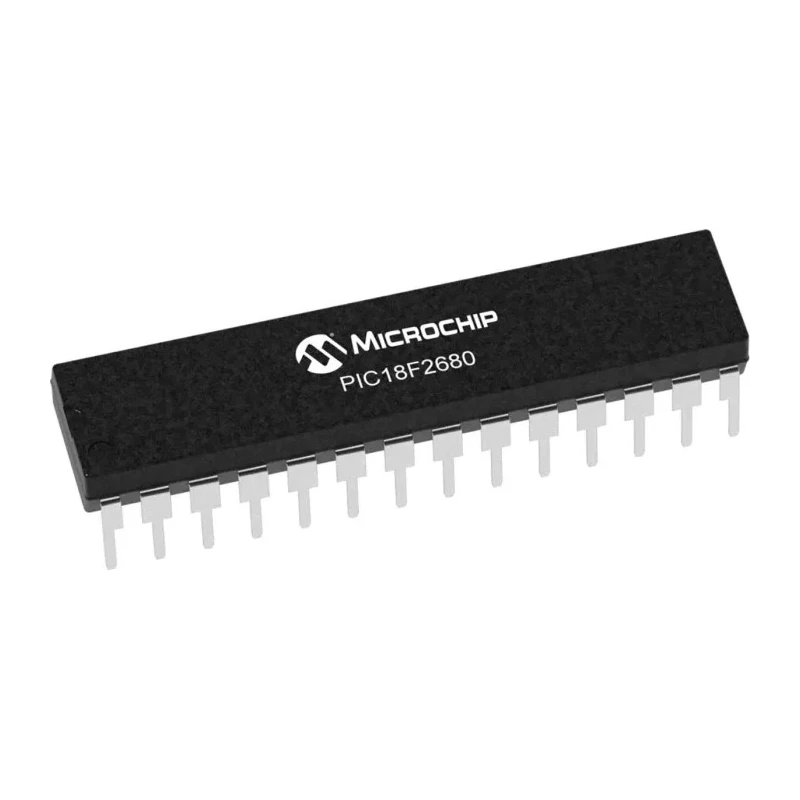

Microchip 8-Bit PIC18F Microcontroller 64kB FLASH 40 MHz 28-Pin SPDIP PIC18F2680-I/SP

Microchip PIC18F2680-I/SP is a high-performance 8-bit PIC microcontroller designed for embedded systems requiring reliable and efficient control. This microcontroller runs at a maximum clock frequency of 40 MHz and features 64kB of FLASH program memory allowing substantial application code storage.

Its architecture is based on a RISC (Reduced Instruction Set Computing) instruction set which ensures faster instruction execution and energy efficiency. The device is packaged in a 28-pin SPDIP (Shrink Plastic Dual In-line Package) suitable for both surface mounting and prototyping purposes.

With a 3.328kB RAM size and 8 channels of 10-bit analog-to-digital converters, this microcontroller provides excellent performance for data acquisition and processing tasks. The inclusion of multiple interface types such as EUSART, I2C, and SPI supports diverse communication needs in industrial, commercial, and consumer electronic applications.

The device operates in a wide power supply voltage range of 2V to 5.5V and supports a broad operating temperature range from -40°C up to 125°C, enhancing its suitability for harsh environments including industrial controls and automotive systems.

The PIC18F2680-I/SP features two analog comparators, four timers, and twenty-five programmable input/output pins, which provide extensive flexibility for interfacing with sensors, actuators, and other peripherals. Its compliance with RoHS standards underscores its environmental friendliness and safety compliance.

High-performance 8-bit RISC microcontroller at 40 MHz. 64kB FLASH memory for program storage. 3.328kB RAM for data handling. Supports EUSART, I2C, SPI communication interfaces. 28-pin SPDIP package for surface mount applications.

Operating voltage range: 2V to 5.5V. Operating temperature range: -40°C to 125°C. Equipped with 8 x 10-bit ADCs and 2 analog comparators. Multiple timers and 25 programmable I/Os. RoHS compliant ensuring safe and environmentally friendly design.

This microcontroller is widely used in industrial automation, electronic control systems, embedded applications, and consumer electronics where reliable operation and efficient performance are critical.
