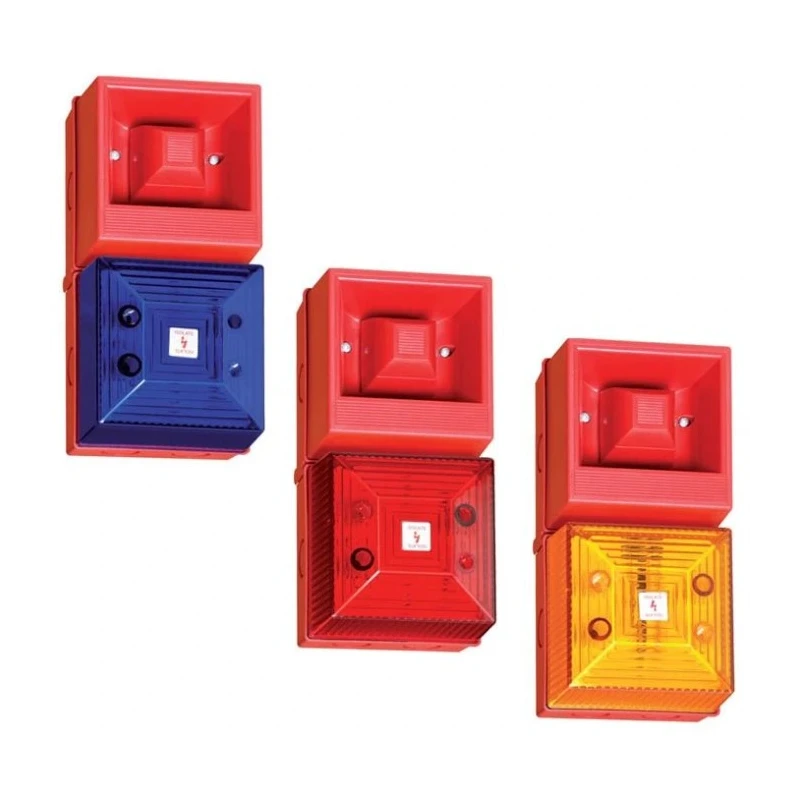

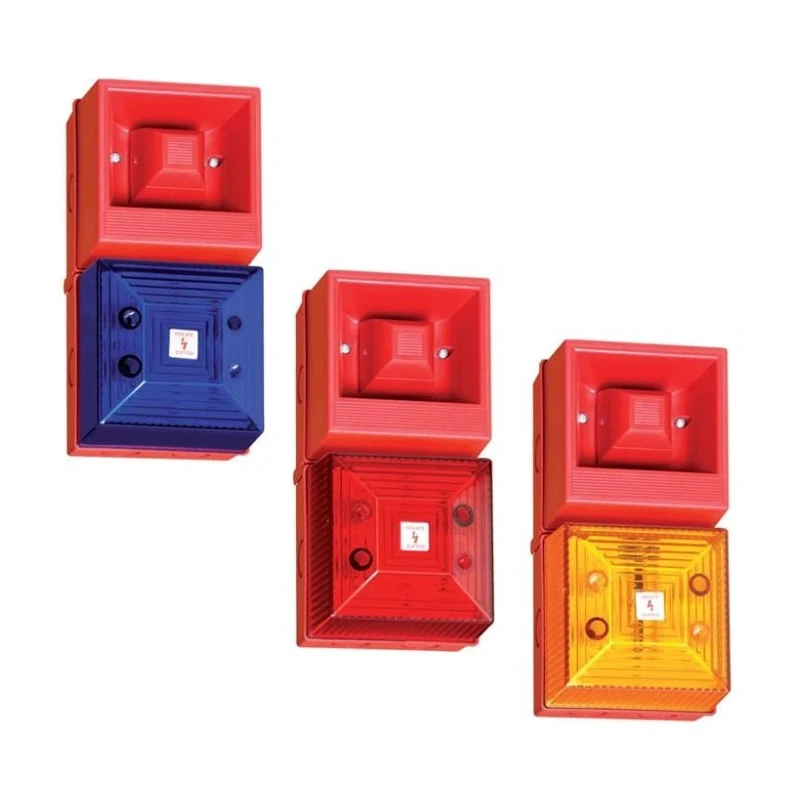

Clifford & Snell Y04 Series Opal Beacon-Sounder Combination IP65 24V dc 108 dB @ 1m Sound Level
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Clifford & Snell |
| Model | IP65 |
| IP Rating | IP65 |
| Mount Type | Surface |
| Housing Material | ABS, Polycarbonate |
| Bulb Type | Xenon |
| Series | Y04 |
| Maximum Operating Temperature | 70°C |
| Current Type | DC |
| Current consumption | 345mA |
| Minimum Operating Temperature | -35°C |
| Terminal type | Terminal Block |
| Lens Colour | Opal |
| Standards/Approvals | CE Certified EN54-3 UKCA |
| Maximum Supply Voltage | 24V dc |
| Housing Colour | Opal |
| Light Effect | Strobe |
| Minimum Sound Level | 0dB |
| Sounder Type | Combined Sounder Beacon |
| Sound Level at 1m | 108dB |
| Maximum Sound Level | 108dB |
| Number of Tones | 32 |
Key Features
- Features an opal lens with a xenon strobe light effect.
- Consumes 345mA current with 32 selectable tones for varied alarm signaling.
- Operates reliably from -35°C to 70°C ambient temperatures.
- Constructed of flame-retardant ABS and polycarbonate housing materials.
- IP65 rated for dust and water ingress protection in demanding environments.
- Includes a terminal block for secure wiring connections.
- Certified to CE EN54-3 and UKCA standards ensuring compliance and safety.
- Designed for surface mounting in industrial and commercial automation systems.
Product Description
Clifford & Snell YL40/D50/O/RN/WR is an industrial-grade Opal Beacon-Sounder Combination within the Y04 Series, rated IP65 for protection against dust and water ingress. It operates at 24V dc and provides a robust 108 dB sound level at 1 meter, making it highly suitable for automation signalling in industrial, manufacturing, and commercial facilities.
The beacon combines a xenon strobe light with multiple selectable sound tones (32), offering flexible audible and visual alerts to suit varied operational requirements. The device features an opal-colored lens designed to diffuse the strobe effect effectively for enhanced visibility.
Constructed from durable ABS and polycarbonate, the housing offers flame retardance and excellent impact resistance, ensuring long-term reliability even in challenging environmental conditions. It functions optimally within a wide temperature range from -35°C to 70°C, accommodating diverse industrial climates.
The unit is surface mountable and includes a terminal block for straightforward and secure electrical connections. This combination beacon-sounder complies with CE Certified EN54-3 and UKCA standards, attesting to its safety and regulatory adherence.
Typical use cases include automation signalling within electrical, industrial automation, manufacturing plants, and other environments requiring reliable alarm and alert systems. Its robust IP65 rating ensures dependable operation in harsh conditions involving dust and moisture.
Features an opal lens with a xenon strobe light effect. Consumes 345mA current with 32 selectable tones for varied alarm signaling. Operates reliably from -35°C to 70°C ambient temperatures. Constructed of flame-retardant ABS and polycarbonate housing materials.
IP65 rated for dust and water ingress protection in demanding environments. Includes a terminal block for secure wiring connections. Certified to CE EN54-3 and UKCA standards ensuring compliance and safety. Designed for surface mounting in industrial and commercial automation systems.
Explore more automation signalling products at EnvMart for your industrial application needs.
Explore more products in our Sounder Beacons category.
