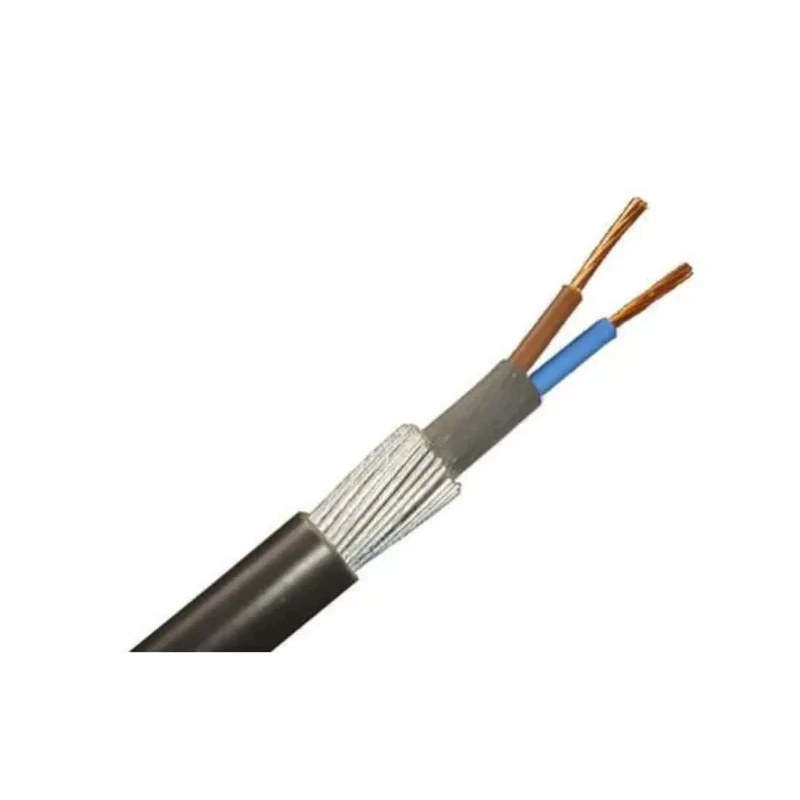

RS PRO 2 Core Armoured Power Cable Black 1.5mm² 90°C 100m Cross Linked 196-4658

RS PRO 196-4658 2 Core Armoured Power Cable is a high-quality electrical cable designed for industrial wiring and mains power distribution applications. The cable consists of two stranded plain annealed copper conductors, providing excellent electrical conductivity and flexibility.

The cable features a cross linked polyethylene (XPLE) insulation rated for a maximum operating temperature of 90°C and a minimum operating temperature of -15°C, delivering enhanced thermal, mechanical, and chemical resistance. This insulation is further complemented by a PVC bedding and a durable, flame retardant black PVC sheath to ensure protection against environmental factors.

For mechanical robustness, the cable is armoured with a galvanized steel wire braid, which significantly improves tensile strength and protects against mechanical stresses. The cable's rated voltage is 600/1000V, making it highly suitable for industrial electrical mains installations, including direct burial, embedding in concrete, and underground ducting.

The cable conforms to BS 5467 and BASEC standards, assuring compliance with important industry and safety norms. The 11mm outside diameter and the conductor configuration of 7 strands of 0.53mm wire per core allow for efficient current carrying capacity along with flexibility.

Applications for this armoured Power Cable span various industries including manufacturing, construction, water treatment plants, and general industrial environments requiring reliable power transmission with mechanical protection.

The cable length is 100 meters, providing ample coverage for industrial installations. Its flame retardant jacket enhances safety in demanding conditions. The strand and conductor design support flexibility and durability.

The galvanized steel wire armour offers high protection against physical damage. The cable is rated for 600/1000V industrial voltage requirements.

RS PRO products are known for their professional quality, reliable performance, and compliance with industry standards, making them a smart choice for electrical and industrial applications.
