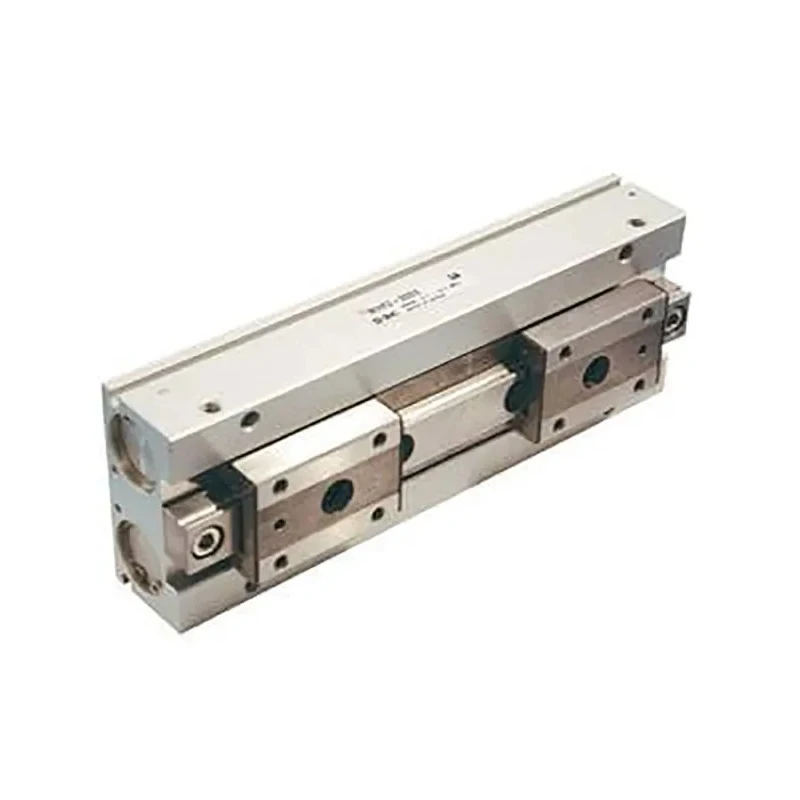

SMC 2 Finger Double Acting Action Low Profile Pneumatic Gripper, Bore Diameter 16mm, Stroke Length 64mm, Maximum MHF2-16D2R



Category Pneumatic Gripper Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Maximum Operating Pressure	0.7 Mpa
Height	33mm
Length	142mm
Model	MHF2-16D2R
Gross Weight	650g
Width	50mm
Series	MHF2
Maximum Operating Temperature	60°C
Port Size	M5 x 0.8
Minimum Operating Temperature	-10°C
Stroke Length	64mm
Bore Diameter	16mm
Open Width	64mm
Action Type	Double Acting
Number of Fingers	2
Gripping Type	Low Profile
Gripping Force - Internal	90N
Closed Width	64mm

Key Features

The gripper operates at a maximum pressure of 0.7 Mpa.
It features a low profile design to save substantial space in installation.
Finger strokes are available in short, intermediate, and long variants.
The gripper adopts a linear guide for high rigidity and durability.
Operating temperature ranges from -10°C to 60°C suitable for various industrial environments.
The gripping force both internal and external is 90N ensuring firm and stable grip.
Compact dimensions with a length of 142mm and height of 33mm enable easy integration.
The device supports a maximum operating frequency of 60 cycles per minute for high productivity.

Product Description

SMC MHF2-16D2R is a high precision 2 finger pneumatic gripper designed for industrial automation requiring compact, low profile gripping solutions. Featuring double acting action, this gripper provides reliable and consistent gripping performance with a bore diameter of 16mm and stroke length of 64mm. It is engineered to operate at a maximum pressure of 0.7 Mpa and handle gripping forces of 90N both internally and externally.

The design of the MHF2 series allows the gripper height to be roughly one third of a comparable MHZ series unit, making it ideal for installations with limited space. The linear guide incorporated in the mechanism ensures high rigidity and smooth finger movement for accurate positioning and long service life. The gripper operates efficiently in temperatures ranging from -10°C to +60°C and can achieve a maximum operating frequency of 60 cycles per minute, fitting well into fast-paced manufacturing and assembly lines.

Dimensions of this gripper are 142mm in length, 50mm in width, and 33mm in height with a closed and open finger width of 64mm. It uses an M5 x 0.8 port size for air supply connection. Weighing 650 grams, it serves well in applications like automated pick and place, assembly, and handling tasks in industrial automation, manufacturing, laboratory automation, and HVAC system assembly.

The product complies with no specific external standards or approvals but benefits from SMC's renown quality and Japanese manufacturing excellence. This pneumatic gripper is suitable for industries requiring precise, durable, and compact gripping solutions.

Operates at maximum pressure of 0.7 Mpa for reliable gripping. Low profile design saves significant installation space. High rigidity due to linear guide construction. Operating temperature from -10°C to 60°C suits various environments.

Gripping force of 90N internally and externally provides secure hold. Supports up to 60 cycles per minute for efficient automation. Compact dimensions of 142x50x33 mm enable versatile integration. Weight of 650g allows for lightweight applications.

Produced in Japan ensuring high quality standards. Explore high quality pneumatic components and grippers in the Pneumatic Grippers category at EnvMart for industrial, laboratory, and manufacturing automation needs.
