RS PRO PCB Power Relay 12V DC Coil 20A Switching Current SPST 5kV Dielectric Strength 0476779P

RS PRO 0476779P is a high-performance PCB-mounted power relay designed for industrial and commercial electrical switching applications. Featuring a 12V DC coil and a single-pole single-throw (SPST) contact configuration, this relay handles high switching currents of up to 20A with reliability.

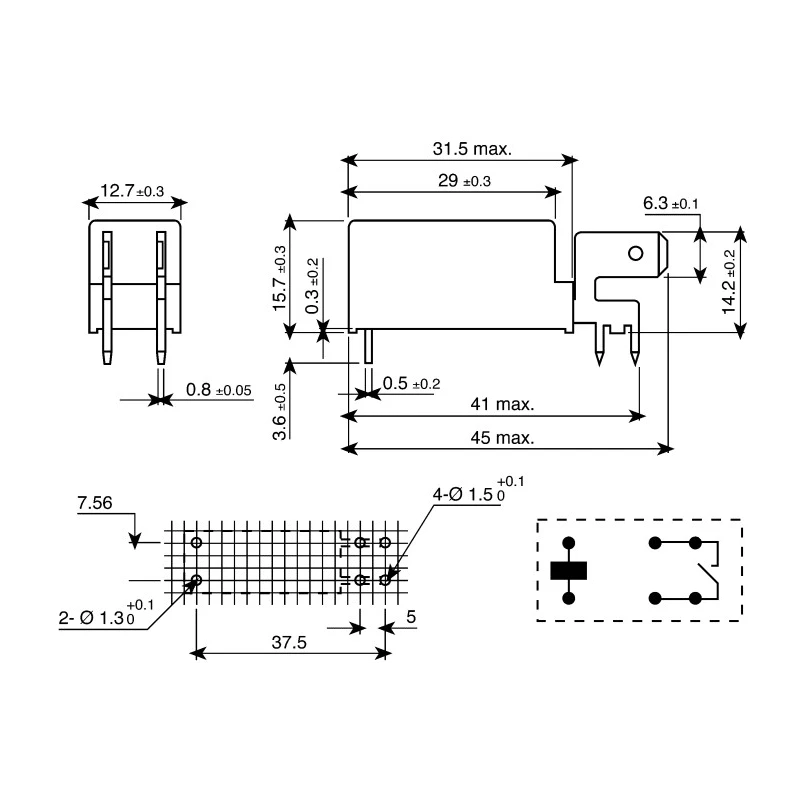

The compact low-profile form factor, with a height of just 15.7mm, allows easy integration on densely populated printed circuit boards. Its durable silver alloy contacts ensure low contact resistance at 100mΩ, while the coil resistance of 360Ω delivers efficient power consumption of 400mW.

Rated for switching voltages up to 300V DC and 440V AC, this relay is suitable for diverse electrical circuits including industrial control, automation systems, HVAC, and power distribution. It operates reliably in ambient temperatures ranging from -40°C to 125°C, supporting even harsh environmental conditions.

Electrical isolation is assured by a robust 5kV dielectric strength between coil and contacts, along with surge voltage tolerance up to 10kV, enhancing device safety. The relay complies with RoHS directives and holds UL (File no. E134517) and VDE (File no. 116934) approvals, ensuring adherence to international quality and safety standards.

This relay features 6.3mm quick connect male terminals for straightforward installation, supporting efficient manufacturing workflows. Its flux-proof construction and Class F insulation rating further enhance durability and performance reliability.

Supports high switching current of up to 20A for demanding electrical loads. Compact low-profile design with a maximum height of 15.7mm for space-constrained PCB layouts. Equipped with silver alloy contacts ensuring low contact resistance of 100mΩ and enhanced conductivity.

5kV dielectric strength between coil and contacts provides excellent electrical isolation. Operates within temperature range from -40°C to 125°C, suitable for harsh environments. Coil resistance is precisely 360Ω, consuming 400mW coil power for efficient operation.

Rated for switching voltages up to 300V DC and 440V AC, adaptable for diverse circuits. Complies with RoHS standards and features UL and VDE approvals for international safety compliance. PCB mount type with solder terminals suitable for automated assembly processes.

This RS PRO power relay is ideal for use in industrial automation, control panels, manufacturing equipment, HVAC systems, and electrical power distribution. It ensures high reliability, safety, and efficiency in electronic switching applications.
