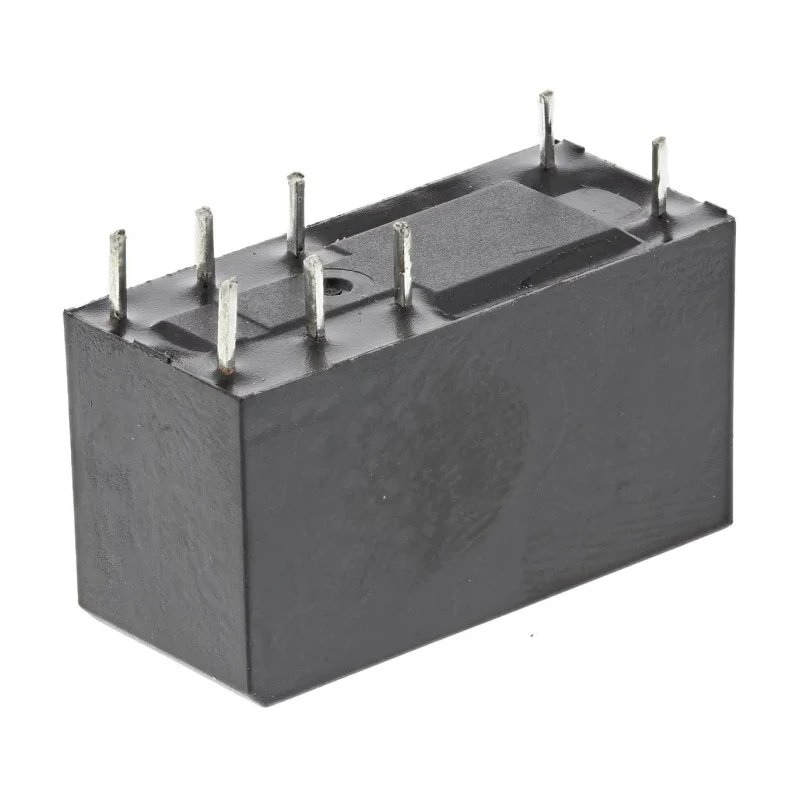

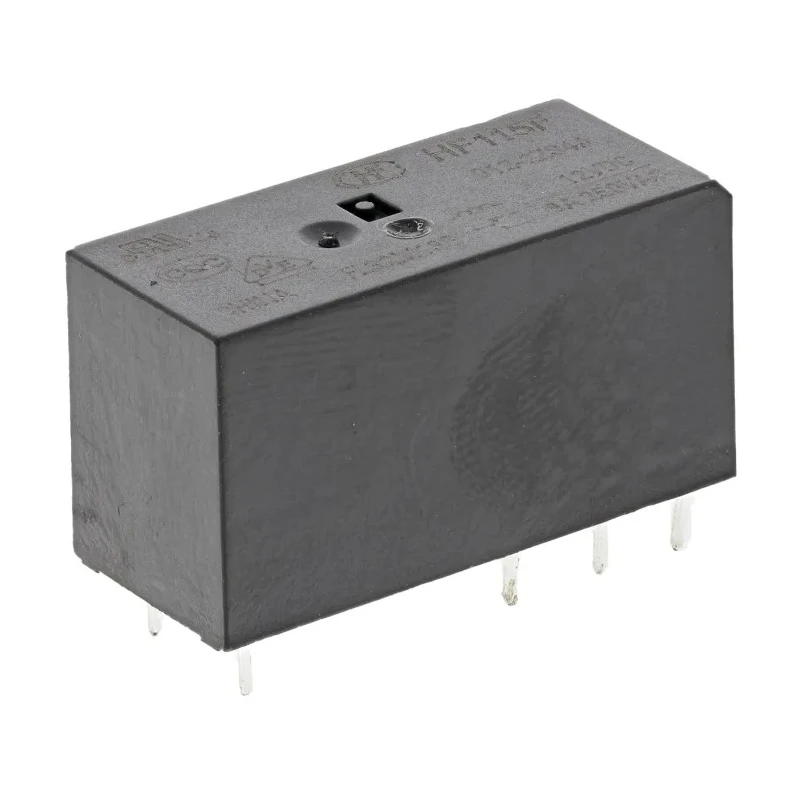

RS PRO PCB Power Relay, 12V dc Coil Voltage, 8A Switching Current, DPDT Contact Configuration 0476753P

RS PRO 0476753P is a PCB Power Relay engineered for demanding industrial and electronic applications. It features a coil voltage of 12V DC and a double pole double throw (DPDT) contact configuration, enabling versatile switching setups with an 8A rated current.

The relay supports switching voltages up to 300V DC and 440V AC, with a switching power capacity of 2kVA, making it suitable for various power relay applications in automation, manufacturing, and control systems.

With a coil resistance of 360 ohms and a coil power consumption of 400 milliwatts, the relay ensures energy-efficient operation. It operates reliably across a broad temperature range from -40°C to 85°C, accommodating both low and high ambient conditions found in industrial environments.

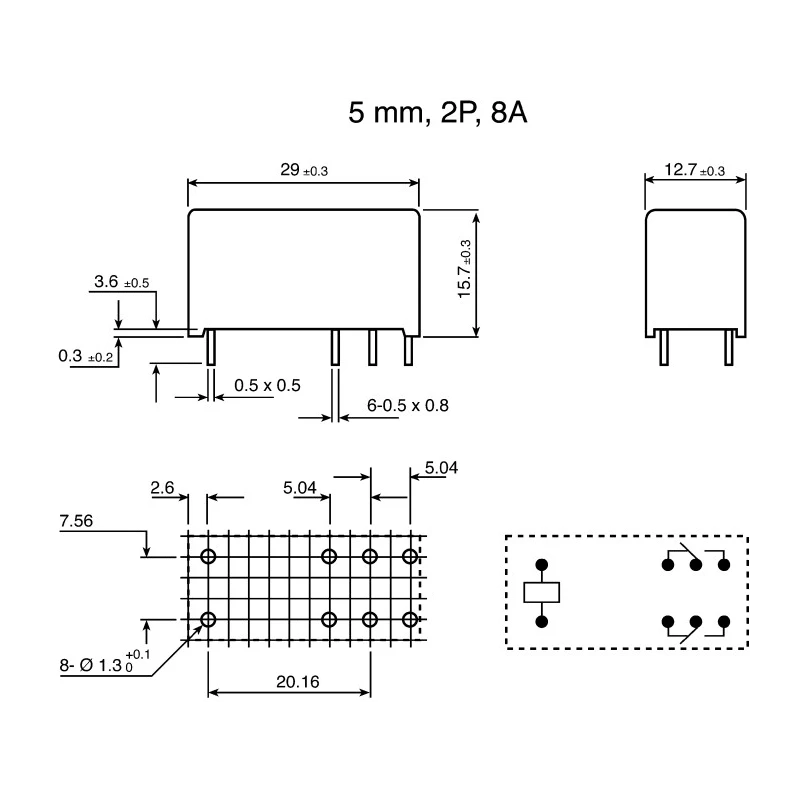

The low-profile design with dimensions of 29mm length, 15.7mm height, and 12.7mm width helps in space-constrained installations. Silver alloy contacts contribute to low contact resistance of 100 milliohms, enhancing performance and reducing energy losses.

This PCB-mounted relay features solder terminals for a secure and stable connection to printed circuit boards. It is compliant with RoHS directives and carries certifications from UL, VDE, and CQC, underscoring its safety and quality standards.

Additional features include a high dielectric strength of 5kV between coil and contacts, which offers robust insulation and protection against voltage surges, further supported by surge voltage resistance of up to 10kV.

RS PRO 0476753P Power Relay is ideal for use in industrial automation, HVAC systems, manufacturing equipment, and electrical control panels requiring reliable, compact, and efficient power switching components.

Explore more high-quality Power Relays and electrical components in the Electronics & Electricals category at EnvMart to find the perfect solutions for your technical needs. This relay operates with a coil resistance of 360 ohms and power consumption of 400 mW.

Switching capabilities include up to 300V DC and 440V AC with a switching power of 2kVA. The device supports a wide temperature range from -40°C to 85°C, ensuring reliable operation in harsh environments. Compact low-profile design with dimensions 29mm length, 15.7mm height, and 12.7mm width.

Silver alloy contacts offer low contact resistance of 100 milliohms for efficient electrical conductivity. Mounting is designed for PCB with solder terminal type for easy integration into circuit boards. Complies with RoHS standards and key international approvals including UL, VDE, and CQC.

High dielectric strength up to 5kV between coil and contacts for enhanced safety and durability.
