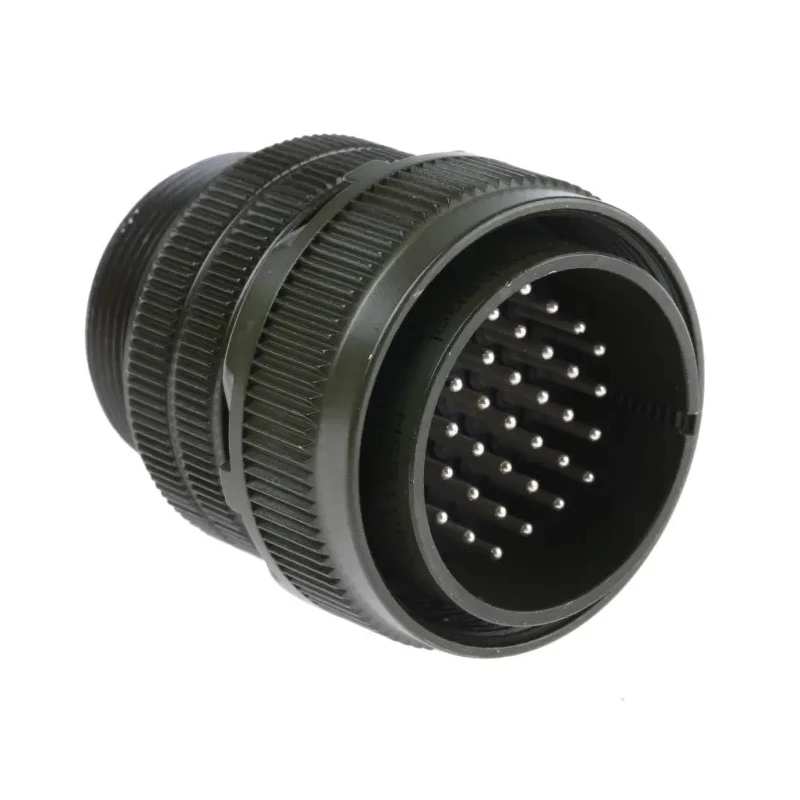

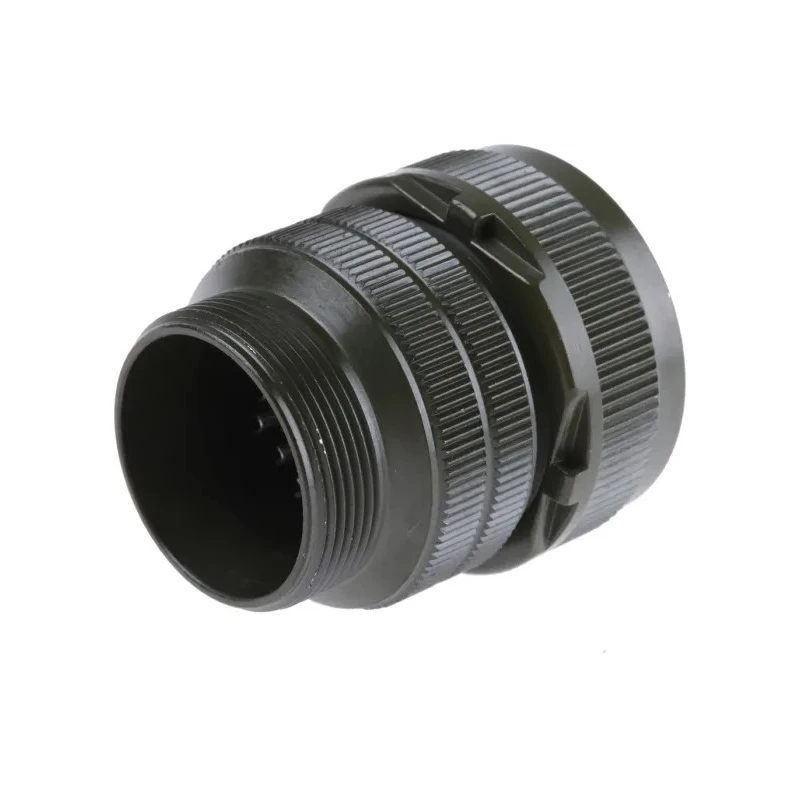

Amphenol Industrial MIL Spec Circular Connector Copper Alloy Straight 37 Contacts 5A 500, 700V AC MS3106A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500, 700V ac |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Current | 5A |
| Model | MS3106A |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Aluminium Alloy |
| Contact Material | Copper Alloy |
| Series | MS3106A |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Silver |
| Number of Contacts | 37 |
| Contact Gender | Male |
| Connector Gender | Female |
| Shell Size | 28 |
| Military Standard | MIL-DTL-5015 |
| Mating Type | Screw Coupling |
| Shell Plating | Cadmium |
Key Features
- The connector features a high-grade aluminium alloy shell with cadmium plating for corrosion resistance.
- It has a screw coupling mating type and is designed per MIL-DTL-5015 military standard.
- The rubber inserts provide excellent dielectric strength and vibration resistance.
- Operational temperature ranges from -55°C to 100°C for reliable performance in harsh environments.
- IP67 rating ensures protection against dust and water ingress.
- The shell size is 28 and termination is by solder for secure connections.
- Silver plating of copper alloy contacts enhances conductivity and durability.
- Designed for industrial, military, communication, and shipboard applications.
Product Description
Amphenol Industrial MS3106A-28-21P MIL Spec Circular Connector is a 37-contact, straight cable mount connector made from copper alloy contacts and an aluminium alloy shell designed to meet MIL-DTL-5015 standards. It operates at 5A current and supports 500 and 700V AC voltages, making it suitable for demanding industrial and military applications.
This circular connector features a durable high-grade aluminium shell with a cadmium zinc-plated olive drab chromate finish, ensuring excellent corrosion resistance and robustness. The female connector housing includes resilient synthetic rubber inserts that provide high dielectric strength and vibration resistance, guaranteeing reliable electrical performance under harsh environmental conditions.
The connector has a shell size 28, with solder termination and screw coupling for quick, accurate mating. It supports an operating temperature range from -55°C to 100°C and is rated IP67, offering dust-tight and immersion protection necessary for outdoor and rugged usage scenarios.
Typical applications include communication equipment, computers, shipboard installations, power and test systems, and ground support where mechanical forces and environmental conditions are within moderate ranges but reliability is critical. The connector’s threaded coupling and polarization key prevent mismating, enhancing operational safety.
This product is a commercial grade MIL-C-5015 circular plug connector that is compatible with MS Series 3100, 3101, and 3102 receptacles. The strain relief feature provides additional mechanical stability to protect the cable connection.
Durable aluminium alloy shell with cadmium plating for corrosion resistance. 37 male copper alloy contacts with silver plating ensure reliable conductivity. Meets MIL-DTL-5015 military specifications for circular connectors.
Rubber inserts provide high dielectric strength and vibration resistance. Screw coupling with keyed polarization prevents mismating. IP67 rated for dust and water protection. Operating temperature from -55°C to 100°C supports harsh environments.
Solder termination for secure connections on cable mounts.
This connector is ideal for industrial, military, laboratory, communication, and shipboard applications requiring robust, reliable cable connections. Explore further Mil Spec Circular Connectors and industrial connector solutions in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 100°C.
This model has an IP67 rating, providing protection against dust and water ingress.
It features 37 male contacts.
The connector uses solder termination for secure connections.
It is rated for a current of 5A.
The housing is made from aluminium alloy, and the contacts are made from copper alloy with silver plating.
This connector is designed to meet the MIL-DTL-5015 military standard.
It features a screw coupling mating type.
The shell size of this connector is 28.
The minimum operating temperature is -55°C.
It is suitable for industrial, military, communication, and shipboard applications.
It features rubber inserts that provide high dielectric strength and vibration resistance, along with a robust aluminium alloy shell for corrosion resistance.
