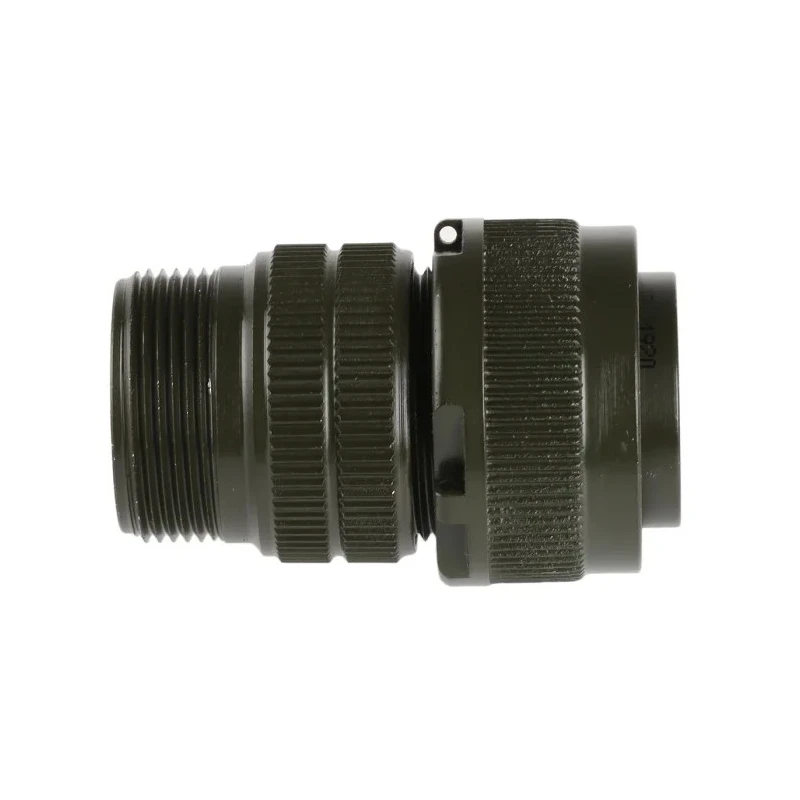

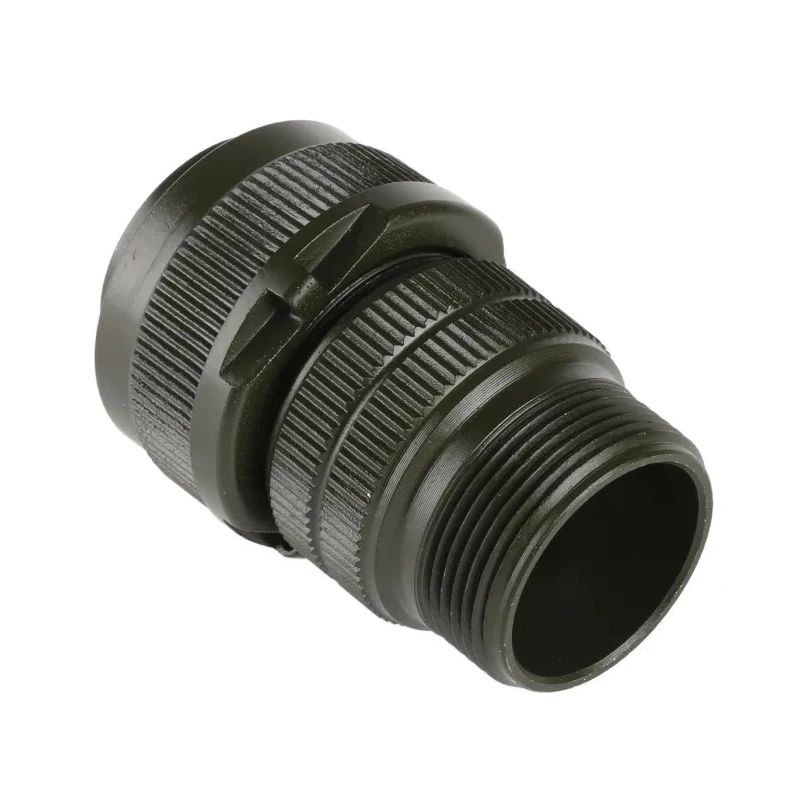

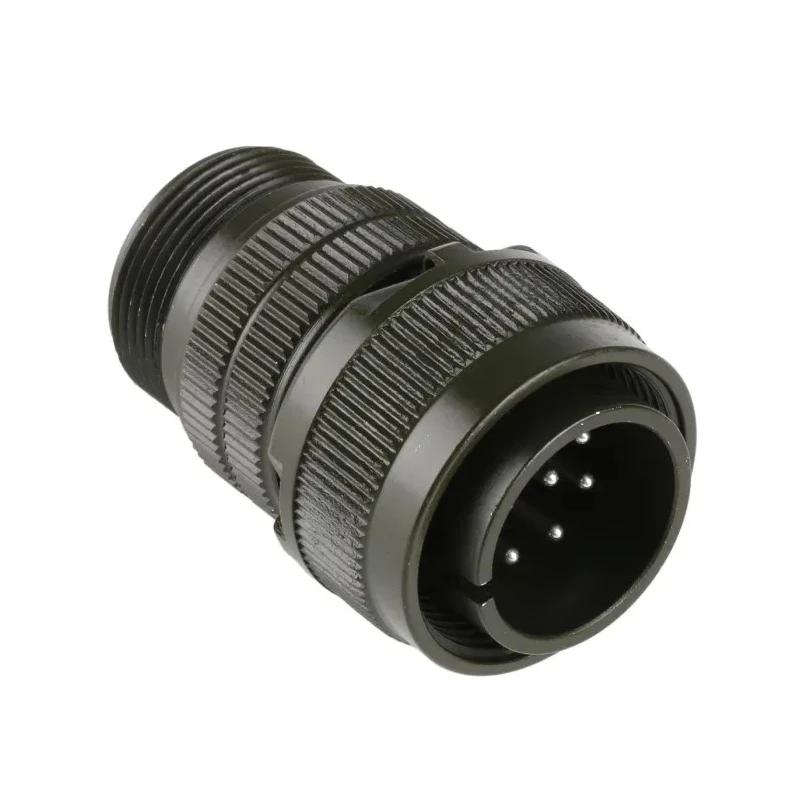

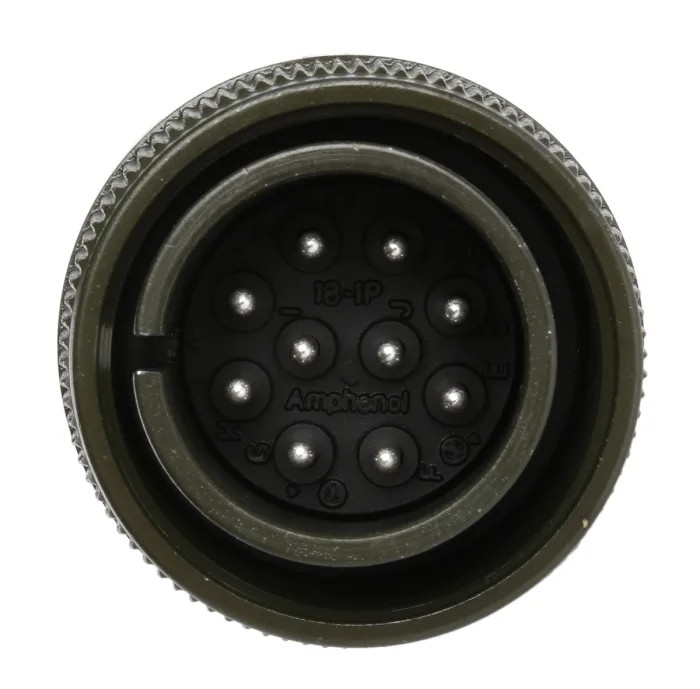

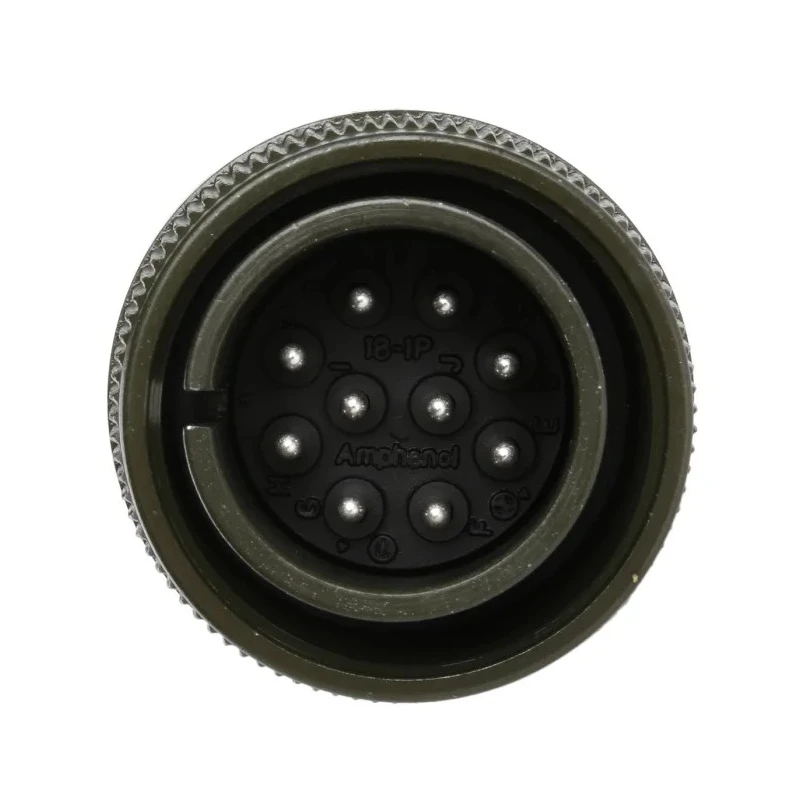

Amphenol Industrial MIL Spec Circular Connector, 10 Way Copper Alloy Straight Cable Mount Male with Male Contacts MS3106A
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 250, 700V ac |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Current | 7.5A |
| Model | MS3106A |
| IP Rating | IP67 |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Series | MS3106A |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Silver |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shell Size | 18 |
| Military Standard | MIL-DTL-5015 |
| Mating Type | Screw Coupling |
| Shell Plating | Zinc Cobalt |
Key Features
- This MIL-DTL-5015 compliant circular connector has a cable mount type with a straight orientation.
- The shell is made of zinc cobalt plated high-grade aluminium alloy to provide excellent corrosion resistance.
- Features silver-plated copper alloy male contacts with screw coupling mating type for secure connection.
- Rated for 7.5A current and withstands voltage up to 250, 700V AC with IP67 protection.
- Operating temperatures range from -55°C to 125°C, suitable for harsh environments.
- Includes strain relief and uses solder termination for reliable contact installation.
- The olive drab chromate finish enhances durability and dielectric strength.
- Designed for applications including communication equipment, computers, and shipboard installations.
Product Description
Amphenol Industrial MS3106A MIL Spec Circular Connector is engineered to meet MIL-C-5015 Class A standards, providing a reliable and robust solution for demanding military and industrial applications. This connector features a straight cable mount design with 10 male contacts made from copper alloy, plated in silver for enhanced conductivity and corrosion resistance.
The connector shell is constructed from high-grade aluminium alloy with a zinc cobalt plating and olive drab chromate finish to ensure high resistance to corrosion and mechanical stress. Its IP67 rating guarantees protection from dust and water ingress, making it suitable for harsh environments.
With a current rating of 7.5A and voltage tolerance of up to 700V AC, this MS3106A connector supports critical electrical performance. It operates within a wide temperature range from -55°C to 125°C, which allows use in extreme ambient conditions. The connector's solder termination and screw coupling mating securely hold the contacts and provide ease of installation and maintenance.
This MIL Spec connector includes strain relief for cable integrity and stability. The keyed shell with single keyway ensures precise mating and prevents mismating. The rubber inserts provide high dielectric strength and reduce vibration impact.
Applications for this connector include powering, testing, ground support systems, communication equipment, computing hardware, and shipboard installations. It is compatible with MS Series 3100, 3101, and 3102 receptacles and designed for commercial and industrial demand requiring quality, reliability, and ruggedness.
This connector features a durable, field-proven design for reliable performance. Threaded couplings provide quick and accurate mating in the field. Keying and polarization minimize the risk of misconnection. Constructed with a high-grade aluminium shell for strength and durability.
Zinc plated olive drab chromate finish for enhanced corrosion resistance. Rubber inserts offer excellent dielectric strength and vibration resistance. Suitable for use in harsh environmental conditions with IP67 rating. Designed for military and industrial communications and power applications.
Explore more products in the Mil Spec Circular Connectors category at EnvMart for similar high-quality industrial connectors and electronic components suited to your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MS3106A connector has a current rating of 7.5A.
It can withstand voltages up to 700V AC.
This connector has an IP67 rating, providing protection against dust and water ingress.
The contacts are made from silver-plated copper alloy, enhancing conductivity and corrosion resistance.
It operates within a temperature range of -55°C to 125°C.
This connector uses solder termination for reliable contact installation.
It features 10 male contacts.
The shell is made of high-grade aluminium alloy with a zinc cobalt plating for corrosion resistance.
It uses a screw coupling mating type for secure connections.
Yes, it is compliant with MIL-DTL-5015 standards.
It is suitable for applications including communication equipment, computers, and shipboard installations.
The connector is manufactured in the Czech Republic.
