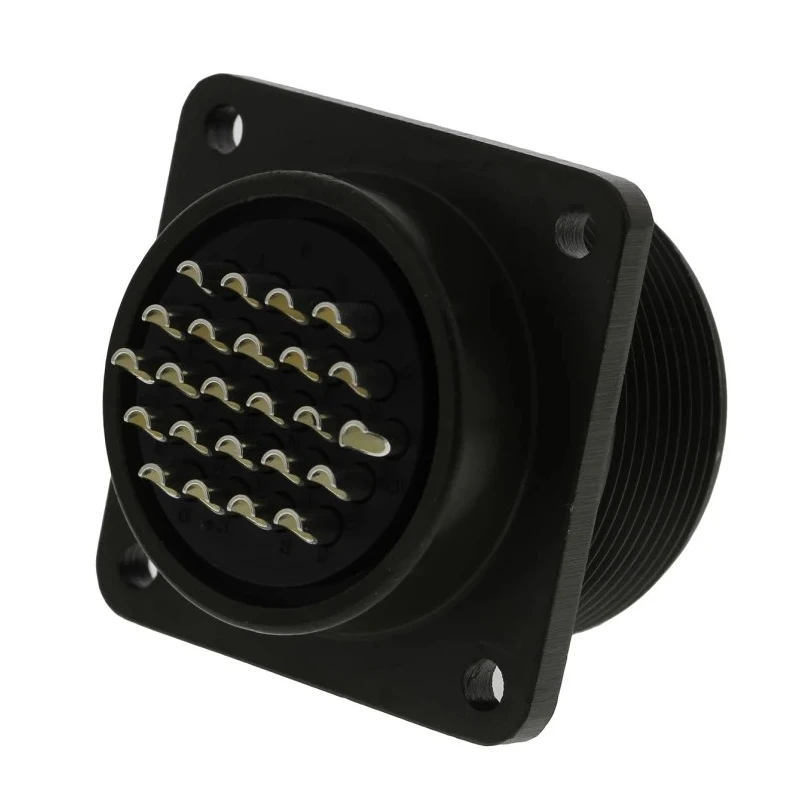

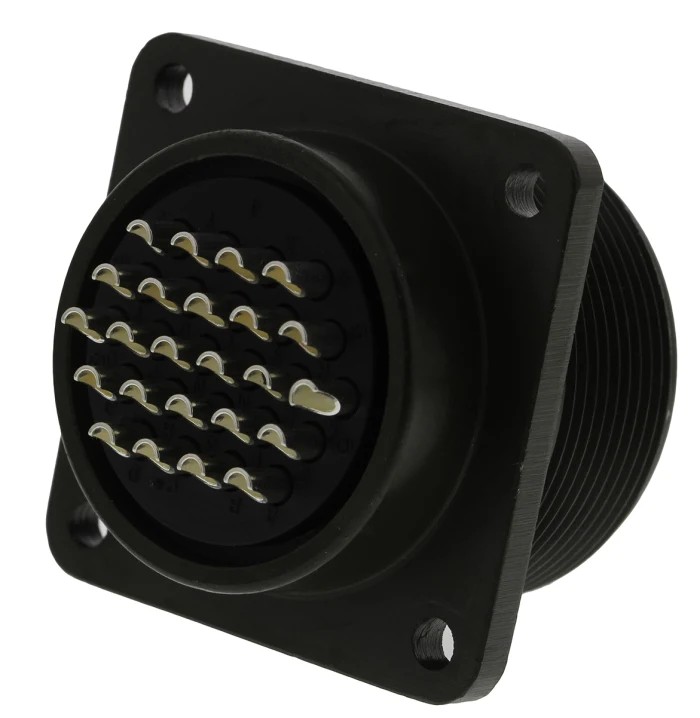

Amphenol Industrial MIL Spec Circular Connector 24 Way Copper Alloy Straight Box Mount Female 200, 250V AC MS3102A
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 200, 250V ac |
| Brand | Amphenol Industrial |
| Colour | Black |
| Orientation | Straight |
| Model | MS3102A |
| IP Rating | IP67 |
| Mount Type | Box Mount |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | MS3102A |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Silver |
| Number of Contacts | 24 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shell Size | 24 |
| Military Standard | MIL-DTL-5015 |
| Mating Type | Screw Coupling |
| Connector Size | Standard |
| Shell Plating | Zinc Cobalt |
Key Features
- Durable MIL-DTL-5015 compliant design with high performance standards.
- Constructed with a black aluminium housing and zinc cobalt plating for corrosion resistance.
- Equipped with silver-plated copper alloy female contacts for reliable conductivity.
- IP67 rated for dust and water ingress protection.
- Operates reliably from -55°C to 125°C operating temperature range.
- Features solder termination and screw coupling mating type for secure connections.
- Threaded coupling and keyway shell polarization prevent mismating.
- Includes strain relief to protect contacts from mechanical stress.
Product Description
Amphenol Industrial MS3102A MIL Spec Circular Connector is a robust 24 way box mount female connector designed for industrial and military applications requiring high reliability. Operating at voltages of 200 and 250V AC, this straight orientation connector is engineered to meet MIL-DTL-5015 standards with excellent durability and performance.
The connector features a high-grade black aluminium housing with zinc cobalt plating, providing excellent resistance against corrosion in harsh environments. Its copper alloy contacts are silver plated to ensure optimal electrical conductivity and longevity. The connector is rated IP67, offering superior ingress protection against dust and water, making it suitable for demanding field conditions.
With a wide operating temperature range from -55°C to 125°C, the MS3102A accommodates diverse environmental conditions. It employs solder termination and screw coupling for reliable and secure mating, with keyway shell polarization preventing incorrect connections. The strain relief mechanism further enhances mechanical stability, protecting against vibration and physical stresses common in industrial settings.
This Amphenol MIL Spec Circular Connector is ideal for applications including communication systems, computer interfaces, shipboard installations, and ground support equipment. Designed for box and equipment case mounting where no cable support is required, it ensures durable and maintenance-free operation.
Durable MIL-DTL-5015 compliant design with high performance standards. Constructed with a black aluminium housing and zinc cobalt plating for corrosion resistance. Equipped with silver-plated copper alloy female contacts for reliable conductivity.
IP67 rated for dust and water ingress protection. Operates reliably from -55°C to 125°C operating temperature range. Features solder termination and screw coupling mating type for secure connections. Threaded coupling and keyway shell polarization prevent mismating.
Includes strain relief to protect contacts from mechanical stress. Ideal for communication equipment, testing, ground support, and shipboard applications.
Amphenol’s MS3102A series connectors are internationally recognized for adhering to military specifications ensuring reliability and quality. The product is manufactured in the Czech Republic and is suited for industrial, military, telecommunications, and transportation sectors. Explore more Mil Spec Circular Connectors from Amphenol Industrial with EnvMart for high-quality electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at voltages of 200 and 250V AC.
It is rated IP67, providing protection against dust and water ingress.
The connector features a black aluminium housing with zinc cobalt plating and silver-plated copper alloy female contacts.
It operates reliably within a temperature range of -55°C to 125°C.
This unit has 24 contacts, all of which are female.
It features solder termination for secure connections.
It is designed for box mount applications.
The connector includes a keyway shell polarization and threaded coupling to prevent mismating.
This connector is manufactured in the Czech Republic.
It is ideal for communication systems, shipboard installations, and ground support equipment.
It employs screw coupling for reliable mating.
It is compliant with the MIL-DTL-5015 military standard.
