Taica Cylindrical M6 Anti-Vibration Mount Male to Male Bobbin Silicone 50 kg Compression 6mm Bore 30mm OD 58mm H MN-10

Free Delivery in India | Lowest Global Shipping Charges

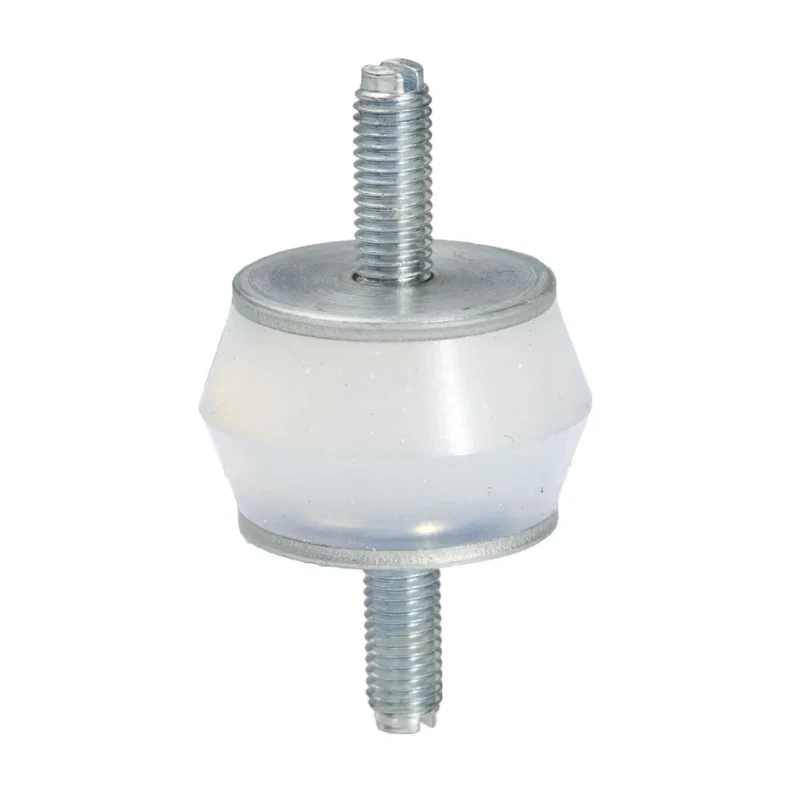

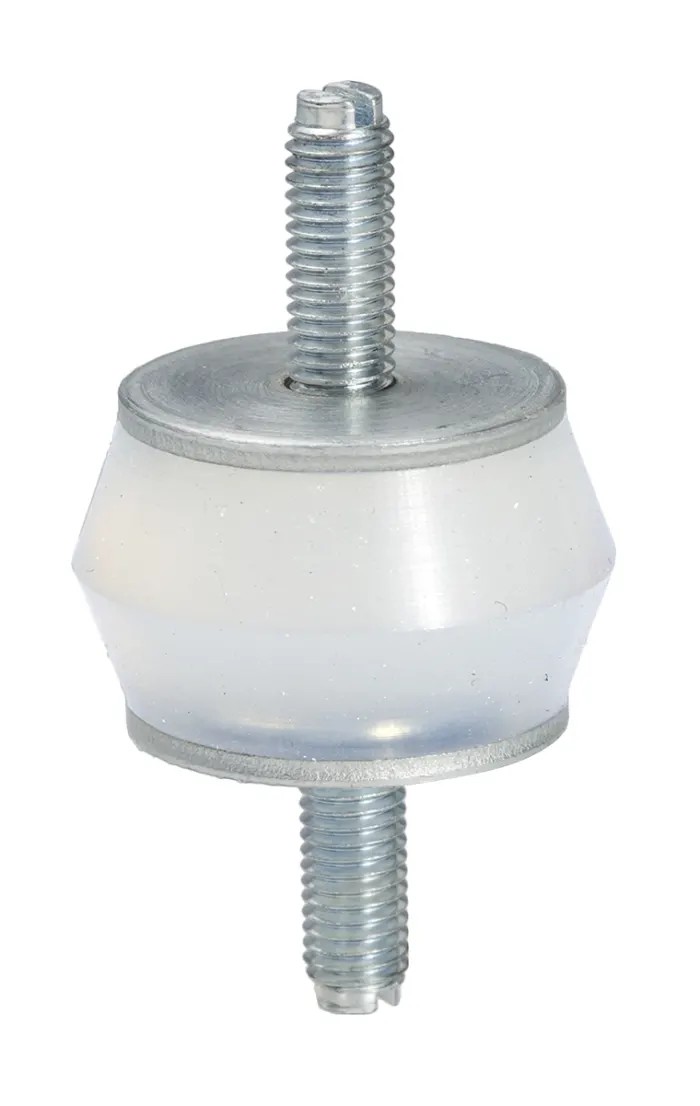

Taica Cylindrical M6 Anti-Vibration Mount Male to Male Bobbin Silicone 50 kg Compression 6mm Bore 30mm OD 58mm H MN-10

Name: Taica Cylindrical M6 Anti-Vibration Mount Male to Male Bobbin Silicone 50 kg Compression 6mm Bore 30mm OD 58mm H MN-10
Brand: Taica
SKU: 161060
Price: 46.64 USD
Availability: InStock



Category Anti Vibration Mounts Brand Taica Condition New

Specifications

Country of Origin	Japan
Brand	Taica
Material	Silicone
Model	MN-10
Mount Type	Bobbin
Outside diameter	30mm
Maximum Operating Temperature	200°C
Thread Size	M6
Minimum Operating Temperature	-40°C
Bore Diameter	6mm
Overall height	58mm
Static Load Rating	50kg
Anti Vibration Mount Type	Male to Male Bobbin
Compression Load	50kg
Foot Shape	Cylindrical

Key Features

Constructed from soft silicone for excellent vibration damping and noise reduction.
Features a 6 mm bore diameter and outside diameter of 30 mm for versatile mounting.
Overall height of 58 mm ensures compatibility with precision equipment.
Capable of operating in temperatures ranging from -40°C to 200°C.
Designed for use with vacuum pumps, measuring instruments, and sensitive electronic devices.
Offers strong metal-to-silicone bonding for durability and reliability.
Resistant to ozone, UV, chemical exposure, and weathering.
Suitable for low-frequency vibration isolation better than rubber or neoprene mounts.

Product Description

Taica MN-10 Cylindrical M6 Anti-Vibration Mount Male to Male Bobbin is a high-quality vibration isolation component designed with a soft silicone gel body. It effectively absorbs shock and reduces noise, supporting static loads up to 50 kg. The mount has a 6 mm bore diameter, 30 mm outside diameter, and 58 mm overall height, providing a durable and robust solution suitable for sensitive industrial and electronic equipment.

Manufactured from silicone material, the mount offers excellent resistance to extreme environments with operating temperatures from -40°C to 200°C. It provides superior damping performance at low frequencies, outperforming conventional rubber or neoprene mounts. The strong bond between metal parts and silicone ensures long-lasting reliability and resistance to weathering, ozone, UV radiation, and chemical exposure.

This bobbin-type mount is ideal for use in vacuum pumps, precision measuring instruments, onboard computers, and other sensitive electronics where vibration isolation is critical. Its cylindrical foot shape enables easy integration into various mounting setups.

The mount is not suitable for applications involving uneven loads, angular loading, twisting, tensile, or shearing stresses. It is supplied as a single-item pack. Country of origin is Japan.

Constructed from soft silicone gel for superior vibration absorption. Support static and compression loads up to 50 kg for effective damping. Operating temperature range from -40 to 200 degrees Celsius for versatile use.

Excellent resistance to ozone, UV, chemical exposure, and weathering. Strong metal-to-silicone bond ensures durability and long service life. Designed as a male to male bobbin type with cylindrical foot shape. Ideal for vacuum pumps, precision instruments, and sensitive electronics.

Package contains one mount suitable for various industrial applications. Explore more anti-vibration mounts and machine mount components at EnvMart to optimize equipment longevity and performance.
