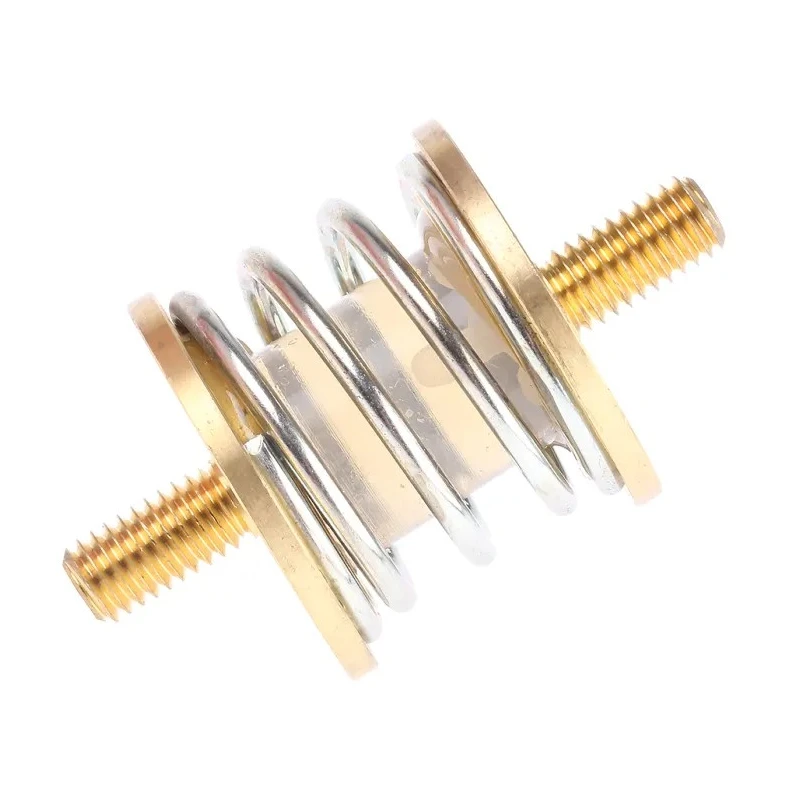

Taica Cylindrical M6 Anti-Vibration Mount Male to Male Bobbin with 16 kg Compression 28 mm OD 47 mm Height BG-8
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Taica |
| Material | Silicone |
| Model | BG-8 |
| Mount Type | Bobbin |
| Series | BG |
| Outside diameter | 28mm |
| Maximum Operating Temperature | 200°C |
| Thread Size | M6 |
| Minimum Operating Temperature | -40°C |
| Overall height | 47mm |
| Static Load Rating | 16kg |
| Anti Vibration Mount Type | Male to Male Bobbin |
| Compression Load | 16kg |
| Foot Shape | Cylindrical |
Key Features
- Constructed with soft silicone gel for effective vibration damping and noise reduction.
- Designed to absorb shocks and isolate vibration on loads from 2 kg up to 100 kg supported at four points.
- High temperature resistance ranging from -40°C to 200°C enables reliable performance in harsh environments.
- Stainless steel versions available for corrosion resistance and extended durability.
- Ideal for vacuum pumps, precision instruments, measuring devices, and sensitive electronics.
- Strong mechanical bond between metal parts and silicone ensures stability and repeated compression resilience.
- Excellent resistance to weathering, ozone, ultraviolet rays, and chemicals.
- Includes one anti-vibration mount per package for single-point application.
Product Description
Taica BG-8 Cylindrical M6 Anti-Vibration Mount Male to Male Bobbin is engineered to provide superior vibration isolation, shock absorption, and noise reduction in industrial and precision equipment applications. It features a soft silicone gel body that dampens vibration to a lower frequency than rubber or neoprene, enhancing equipment longevity and operational stability.

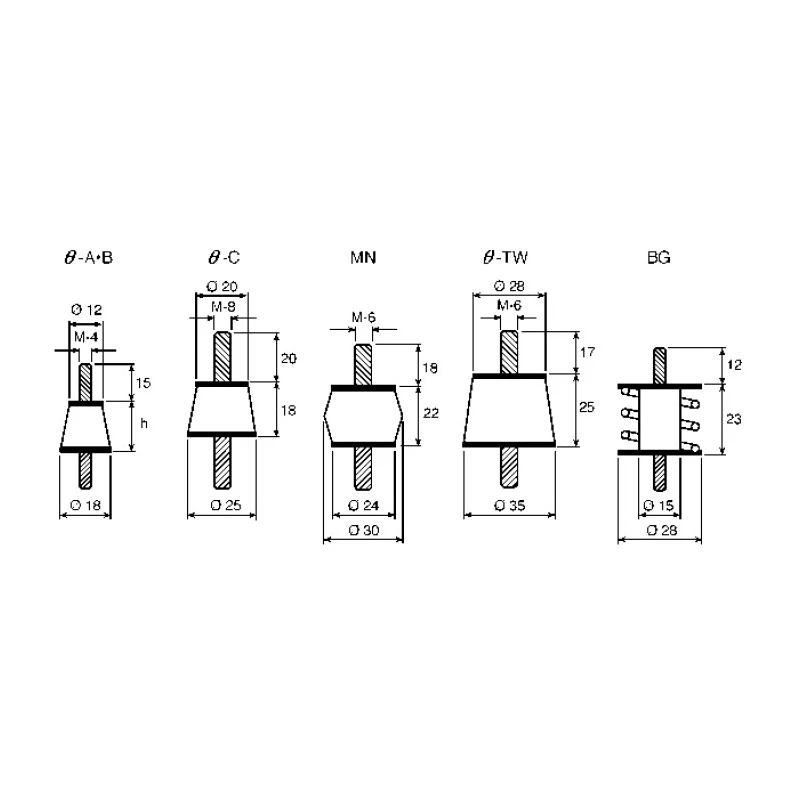

The mount has a 28 mm outside diameter and an overall height of 47 mm, with an M6 male-to-male threaded bobbin design. It supports static and compression loads of up to 16 kg, making it suitable for equipment loads ranging from 2 kg to 100 kg when supported on four mounts. The silicone material withstands temperatures from -40°C to 200°C, ensuring durability in challenging environments.
Special stainless steel variants offer corrosion resistance, while the strong bond between silicone and metal enhances mechanical stability and prevents debonding under repeated compression cycles. This mount is not suitable for uneven loading, angular loading, twisting, tensile, or shearing forces.
Common applications include vacuum pumps, precision measuring and testing instruments, onboard computers, and other sensitive electronic or mechanical equipment requiring vibration damping for improved accuracy and component lifespan.
Soft silicone gel body for effective low-frequency vibration damping. Strong mechanical bonding between metal and silicone parts. High resistance to ozone, UV, chemicals, and weathering. Wide operating temperature range from -40°C to 200°C.
M6 male to male threaded bobbin mount design. Cylindrical foot shape with 28 mm outside diameter. Static load and compression rating of 16 kg. Ideal for industrial, measuring, and electronic applications. Single anti-vibration mount included per package.
This product is made in Japan and belongs to the BG series of Taica anti-vibration mounts. It is a new condition industrial component designed to extend the operational life and reliability of sensitive equipment through superior vibration control.
Browse more high-quality machine mounts and anti-vibration components on EnvMart for your industrial applications.
Explore more products in our Anti Vibration Mounts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Taica BG-8 anti-vibration mount has a static load rating of 16 kg, supporting equipment loads ranging from 2 kg to 100 kg when used with four mounts.
This model has an outside diameter of 28 mm and an overall height of 47 mm.
The silicone material of the mount can operate in temperatures ranging from -40°C to 200°C.
It features an M6 male-to-male threaded bobbin design for easy installation.
The mount is constructed from soft silicone gel, which provides effective vibration damping and noise reduction.
This mount is ideal for applications involving vacuum pumps, precision measuring instruments, and sensitive electronic devices that require vibration damping.
It exhibits high temperature resistance and excellent resistance to weathering, ozone, ultraviolet rays, and chemicals, making it suitable for challenging conditions.
The foot shape of this mount is cylindrical, which aids in effective vibration isolation.
The mount is designed for single-point application and should not be used for uneven loading, angular loading, twisting, tensile, or shearing forces.
This anti-vibration mount is made in Japan.
The BG-8 mount is part of the BG series of Taica anti-vibration mounts.
The compression load rating for the Taica BG-8 is also 16 kg, matching its static load rating.
