Dehn DPA M CLD Surge Arrester 48V Maximum Voltage 1A Surge Current, DIN Rail Mount DPA M CLD RJ45B 48

Free Delivery in India | Lowest Global Shipping Charges

Dehn DPA M CLD Surge Arrester 48V Maximum Voltage 1A Surge Current, DIN Rail Mount DPA M CLD RJ45B 48

Name: Dehn DPA M CLD Surge Arrester 48V Maximum Voltage 1A Surge Current, DIN Rail Mount DPA M CLD RJ45B 48
Brand: Dehn
SKU: 160901
Price: 255.34 USD
Availability: InStock



Category Surge Protection Components Brand Dehn Condition New

Specifications

Country of Origin	India
Brand	Dehn
Height	75mm
Length	19mm
Model	DPA M CLD RJ45B 48
Depth	36mm
Mount Type	DIN Rail
Series	DPA M CLD
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-40°C
Suppressor Type	Surge Arrester
Maximum Voltage	48V
Standards/Approvals	RoHS, UL 497B, IEC 61643-21, UL, EAC, EN 61643-21
Maximum Surge Current	1A
RS PRO Industrial Surge Protector, 2 kA, 70 V, DIN RailRS Stock No.	101-781Brand: RS PRO
RS PRO Industrial Surge Protector, 2 kA, 70 V, DIN RailBrand	RS PRO

Key Features

Designed for structured cabling systems up to 100 MHz frequency class D.
Features powerful gas discharge tubes for protection of all line pairs.
DIN rail mounting adapter with socket type connector for easy installation.
Suitable for retrofitting and compliance with lightning protection zone concept from 0B to 2 and higher.
Operates reliably in temperatures from -40°C to 80°C.
Compact dimensions of 19mm length, 75mm height, and 36mm depth for space-saving installation.
Complies with RoHS, UL 497B, IEC 61643-21, EAC, and EN 61643-21 standards.
Ideal for industrial, commercial, and telecommunications surge suppression applications.

Product Description

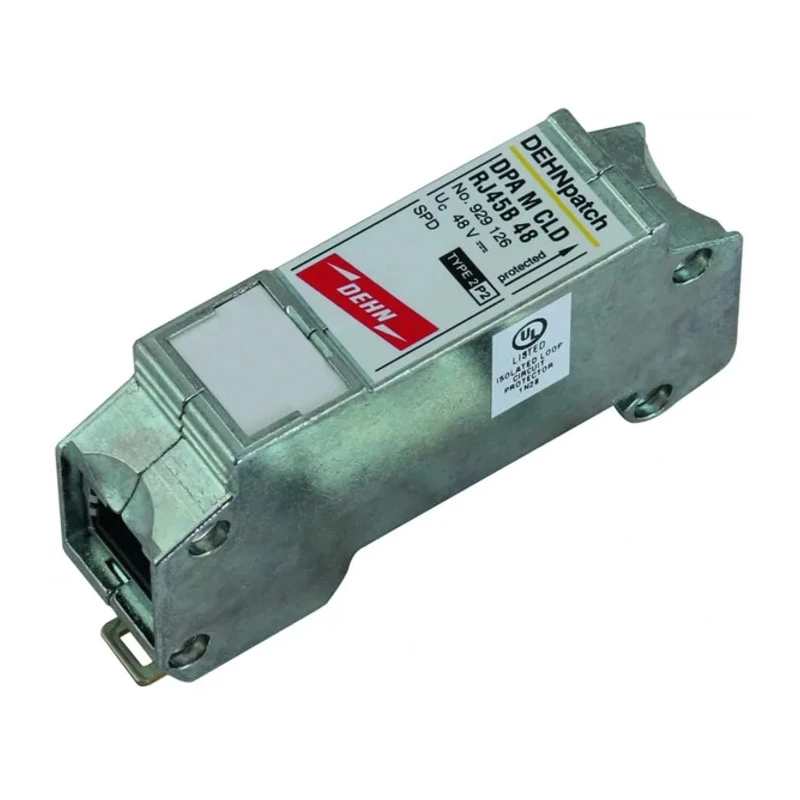

Dehn DPA M CLD RJ45B 48 Surge Arrester is a universal arrester engineered to protect Industrial Ethernet, Power over Ethernet, and similar structured cabling systems operating up to 100 MHz in class D. It delivers reliable surge suppression with powerful gas discharge tube technology, ensuring comprehensive protection across all line pairs.

The device is designed for mounting on DIN rails and features a socket adapter type connector enabling straightforward installation or retrofit applications in structured cabling. It operates efficiently within a temperature range of -40°C to 80°C, making it suitable for demanding industrial environments.

Compact in size, with dimensions measuring 19mm length, 75mm height, and 36mm depth, the arrester facilitates space-saving deployment without compromising performance. Its compliance with international standards such as RoHS, UL 497B, IEC 61643-21, EAC, and EN 61643-21 certifies its quality and safety for industrial use.

Ideal for use in lightning protection zone boundaries from 0B to 2 and beyond, this surge arrester is tailored for industrial, laboratory, commercial, telecommunications, and manufacturing applications requiring robust protection against transient surges and voltage spikes.

Designed for structured cabling systems operating up to 100 MHz class D. Protection via powerful gas discharge tubes across all cable pairs. DIN rail mount design for easy retrofit and installation. Wide operating temperature range from -40°C to 80°C ensuring durability.

Compact dimensions for efficient use of panel space. Certified to international standards including RoHS, UL, IEC, EAC, and EN. Suitable for various industrial and commercial surge protection applications. Explore more products in Surge Protection Components at EnvMart for enhanced system reliability and safety.
