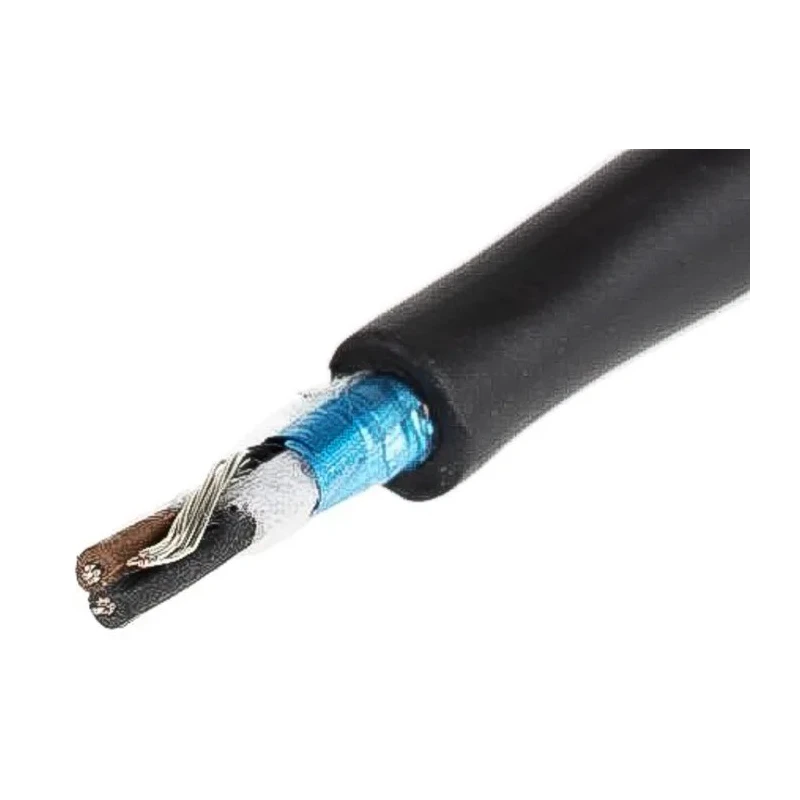

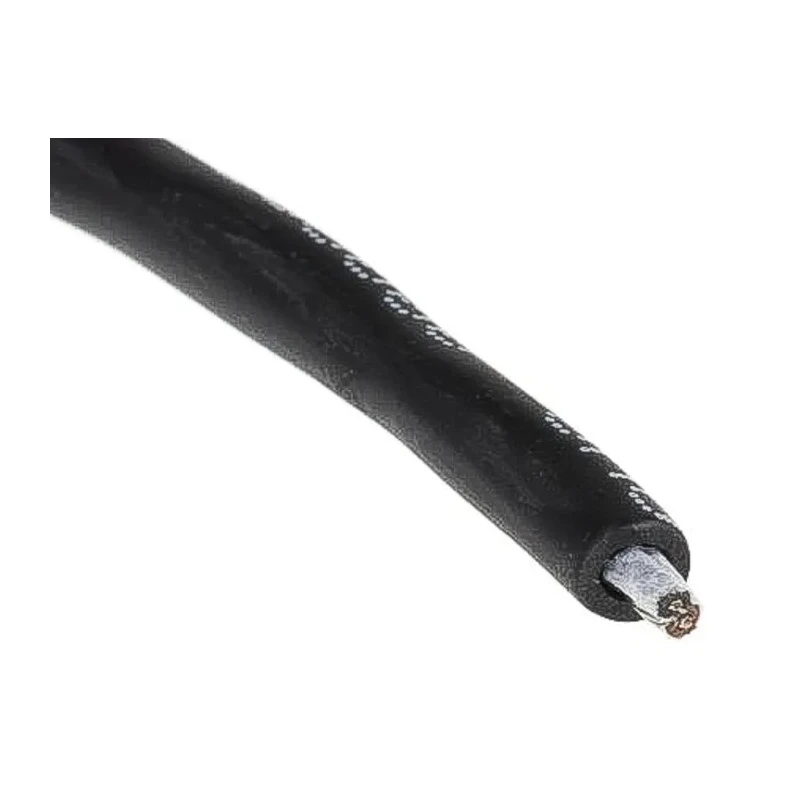

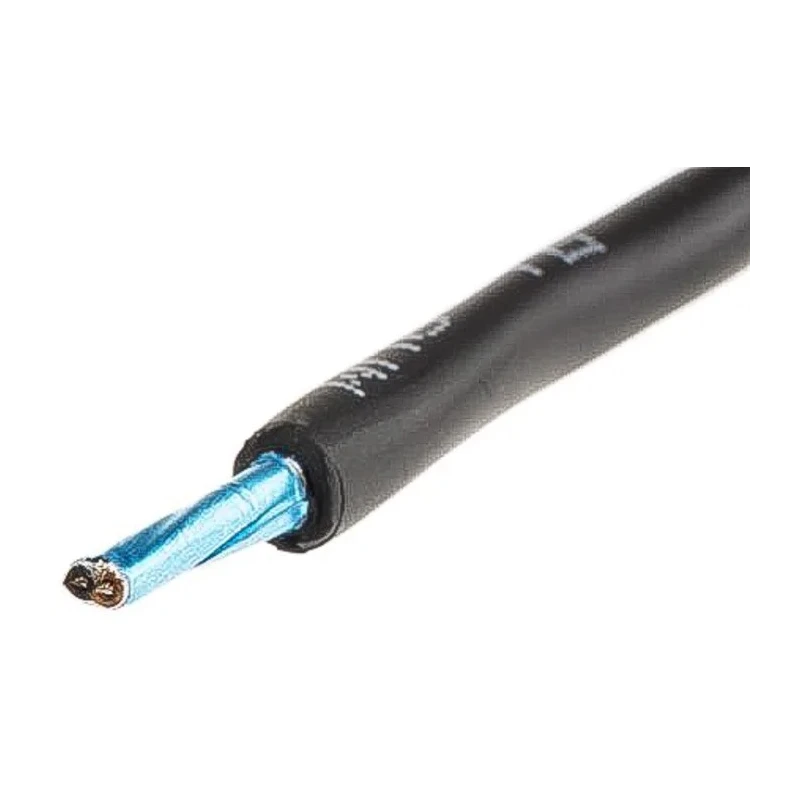

Alpha Wire XTRA-GUARD 2 Control Cable 2 Cores 0.81mm² 18 AWG Screened Armoured 300V 30m Polyvinyl Chloride Jacket 25382 BK005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 25382 BK005 |
| Cable Length | 30m |
| Series | XTRA-GUARD 2 |
| Outside diameter | 5.84mm |
| Maximum Operating Temperature | 90°C |
| Number Of Cores | 2 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, UL, CSA |
| Jacket Colour | Black |
| American Wire Gauge | 18AWG |
| Screened/Unscreened | Screened |
| Number of Strands | 16 |
| Core Strands | 16 x 0.25mm |
| Size of Strands | 0.25mm |
| Cable CSA | 0.81mm² |
Key Features
- The cable features a robust polyvinyl chloride jacket that provides excellent abrasion resistance.
- Conductors are tin copper wire with 16 strands, each 0.25mm thick for efficient conductivity.
- Rated for operation temperatures from -30°C to 90°C with UV light stability and chemical resistance.
- Shielding includes a combination of foil and Supra-Shield braiding for effective EMI protection.
- Features a nylon ripcord for easy jacket stripping during installation.
- Compliant with CE, UL, and CSA standards but without hazardous area certification.
- Designed for demanding industrial environments such as CNC machines and automotive plants.
Product Description
Alpha Wire 25382 BK005 XTRA-GUARD 2 Control Cable is a highly durable, screened, armoured cable featuring 2 cores with 0.81mm² cross-sectional tin copper conductors. This Control Cable is sheathed in a tough polyvinyl chloride jacket that offers enhanced abrasion resistance suited for harsh industrial environments with mechanical wear and tear.
With an outside diameter of 5.84mm and length of 30 meters, it operates reliably at voltages up to 300V and across a wide temperature range from -30°C to 90°C. Its robust design includes nylon ripcords for easy jacket removal and colour-coded conductors for straightforward installation. The cable maintains excellent UV protection and resistance to most chemicals, solvents, oils, and fuels, optimizing performance in various operational settings.
The XTRA-GUARD 2 series incorporates advanced shielding combining triple-layer aluminium/polyester/aluminium foil along with a tinned copper braided shield (Supra-Shield), ensuring superior electromagnetic interference (EMI) suppression, critical for sensitive industrial equipment.
Ideal for industrial machinery including CNC equipment, automotive manufacturing plants, packaging machines, petrochemical plant operations, and geophysical instruments, the cable meets CE, UL, and CSA approval standards. While it offers chemical and mechanical protection, it is not certified for hazardous areas.
The cable jacket is tear and abrasion resistant polyurethane providing extended lifespan under rugged conditions. Nylon ripcord simplifies the stripping process, minimizing installation time. Colour coded conductors improve identification reducing wiring errors.
Supra-Shield shielding enhances EMI resistance making it suitable for sensitive control signal transmission. The product maintains flexibility even at low temperatures down to -30°C. Its chemical resistance extends cable life in demanding factory and outdoor applications.
This product is a new Alpha Wire high-performance industrial cable designed for reliability and durability in automation, manufacturing, and electrical control applications. It represents a strong choice for users prioritizing abrasion resistance and EMI suppression.
Explore our range of XTRA-GUARD cables for applications requiring chemical resistance, UV stability, mechanical durability, and varied temperature performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this control cable is 90°C.
This control cable is rated for operation at voltages up to 300V.
This model features 2 cores.
The outside diameter of the cable is 5.84mm.
The conductors are made of tin copper wire, consisting of 16 strands, each 0.25mm thick.
The cable is sheathed in a robust polyvinyl chloride jacket that provides excellent abrasion resistance.
It complies with CE, UL, and CSA standards.
The length of this control cable is 30 meters.
The minimum operating temperature for this cable is -30°C.
The cable includes a combination of foil and Supra-Shield braiding for effective electromagnetic interference (EMI) protection.
Yes, it is designed with UV light stability and chemical resistance, making it suitable for outdoor applications.
The American Wire Gauge (AWG) rating for this cable is 18 AWG.
