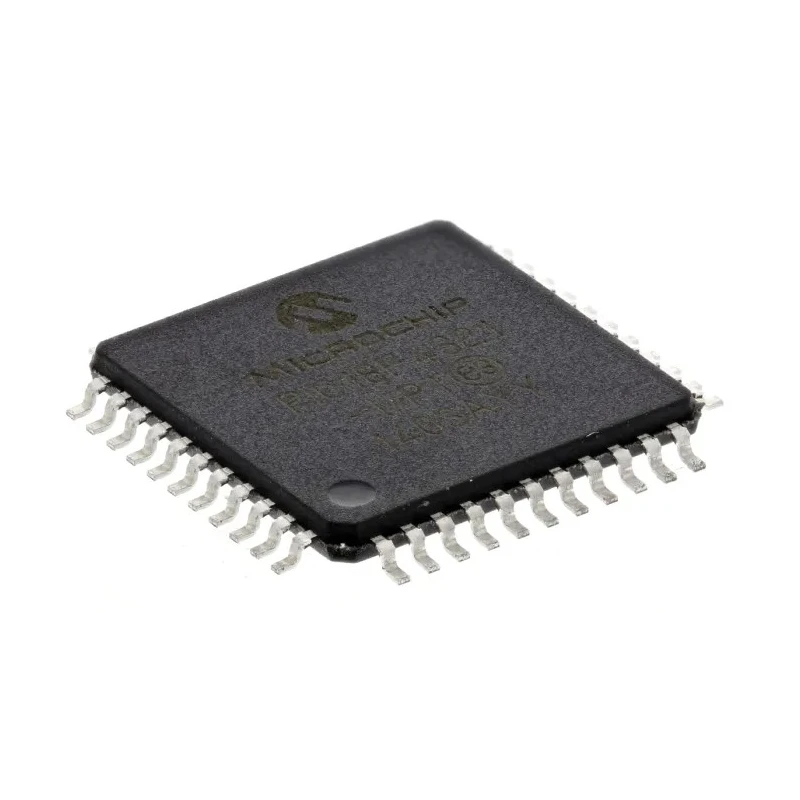

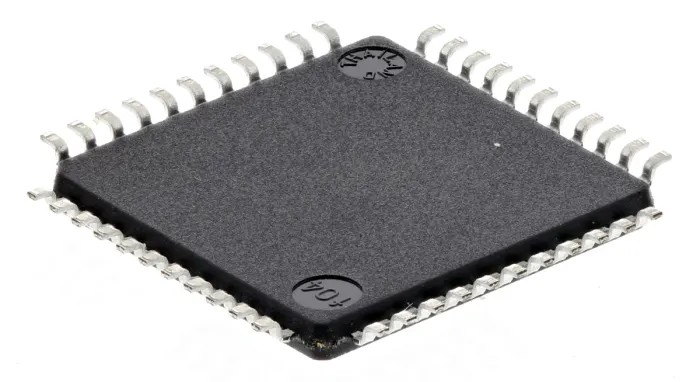

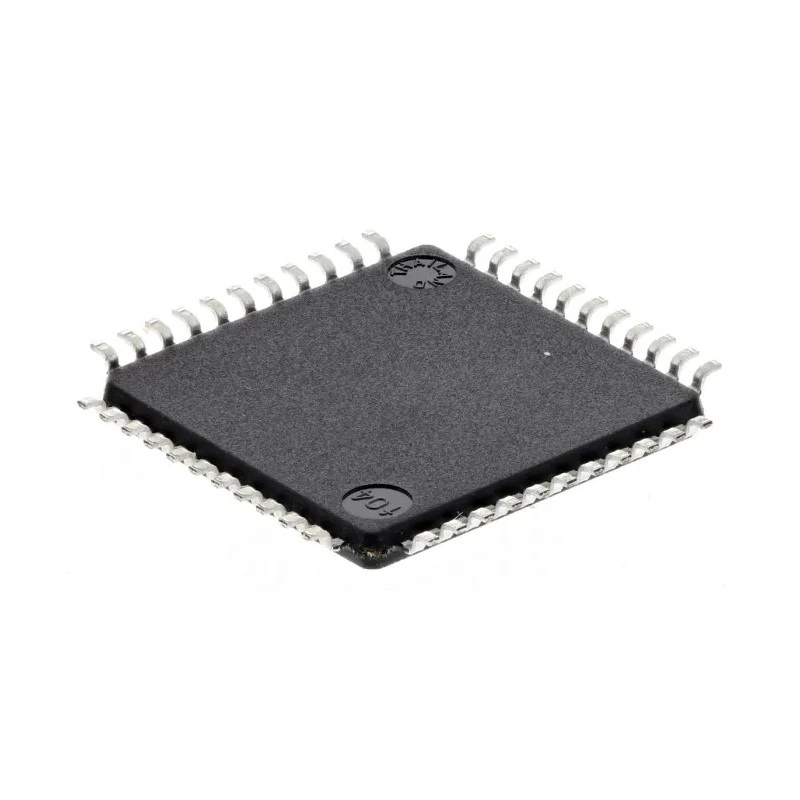

Microchip 8 bit PIC18F Microcontroller 40 MHz 8 kB FLASH 44-Pin TQFP PIC18F4321-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC18F4321-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 512bit |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 8, 256kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 36 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 256bit |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 13 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- High-performance 8-bit microcontroller architecture operating at 40 MHz maximum clock frequency.
- Equipped with 8 kB of FLASH program memory and 512 bits of RAM for efficient data processing.
- Features 36 programmable I/O pins and 13 channels of 10-bit Analog-to-Digital converters.
- Supports operating voltage range between 2 V and 5.5 V with a maximum power dissipation of 1 W.
- Includes multiple timers, analog comparators, and communication peripherals for versatile usage.
- Compact 44-pin TQFP surface mount package with dimensions 10 mm x 10 mm x 1.05 mm.
- Wide operating temperature range from -40°C to 85°C suitable for industrial environments.
- Utilizes FLASH memory technology with RISC instruction set architecture for fast code execution.
Product Description
Microchip PIC18F4321-I/PT is a high-performance 8-bit PIC18F Microcontroller designed for embedded system applications requiring reliable and efficient processing at speeds up to 40 MHz. This microcontroller boasts 8 kB of FLASH program memory and 512-bit RAM, making it suitable for compact and moderate complexity embedded designs.
The device features 36 programmable input/output pins and 13 x 10-bit analog-to-digital converters (ADC), providing versatile interfacing options for sensors and peripherals. It supports a broad operating voltage range from 2 V to 5.5 V and dissipates a maximum power of 1 W, ideal for low-power embedded solutions.
Its 44-pin Thin Quad Flat Package (TQFP) has compact dimensions of 10 mm length and width with 1.05 mm height, facilitating compact PCB layouts. The microcontroller provides 4 timers and 2 analog comparators along with communication peripherals including Master Synchronous Serial Port (MSSP) supporting SPI and I2C, and an Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART).
The device accommodates robust industrial requirements with an operating temperature range from -40°C to 85°C and features like Power-On Reset (POR), Brown-Out Reset (BOR), and Watchdog Timer (WDT) to enhance system reliability.
The PIC18F4321-I/PT supports Low-Voltage Programming (LVP), In-Circuit Serial Programming (ICSP), and In-Circuit Debug (ICD), facilitating development and debugging efficiency for embedded engineers.
This microcontroller family incorporates nanoWatt XLP (Extreme Low-Power) technology, enabling energy-efficient performance in battery-operated and power-sensitive applications.
Ideal for industrial control, automotive, consumer electronics, and embedded communication systems, this microcontroller combines flexibility and performance in a compact footprint.
High-performance 8-bit PIC18F microcontroller with 31 level hardware stack. Up to 10 MIPS processing speed with 77 RISC instructions. Configurable internal oscillator with ±1% accuracy across frequency ranges. Advanced peripherals including PWM modules, timers, and comparators.
Designed for embedded and industrial applications requiring reliability and low power consumption. Explore more Microchip Microcontrollers and embedded solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz.
It is equipped with 8 kB of FLASH program memory.
The operating voltage range is between 2 V and 5.5 V.
This model features a pin count of 44.
It has 13 channels of 10-bit analog-to-digital converters.
The dimensions of the package are 10 mm x 10 mm x 1.05 mm.
The maximum power dissipation is 1 W.
It operates within a temperature range from -40°C to 85°C.
This model has 36 programmable I/O pins.
It utilizes a RISC instruction set architecture.
It includes multiple timers, analog comparators, and communication peripherals such as MSSP for SPI and I2C.
The country of origin for this microcontroller is India.
