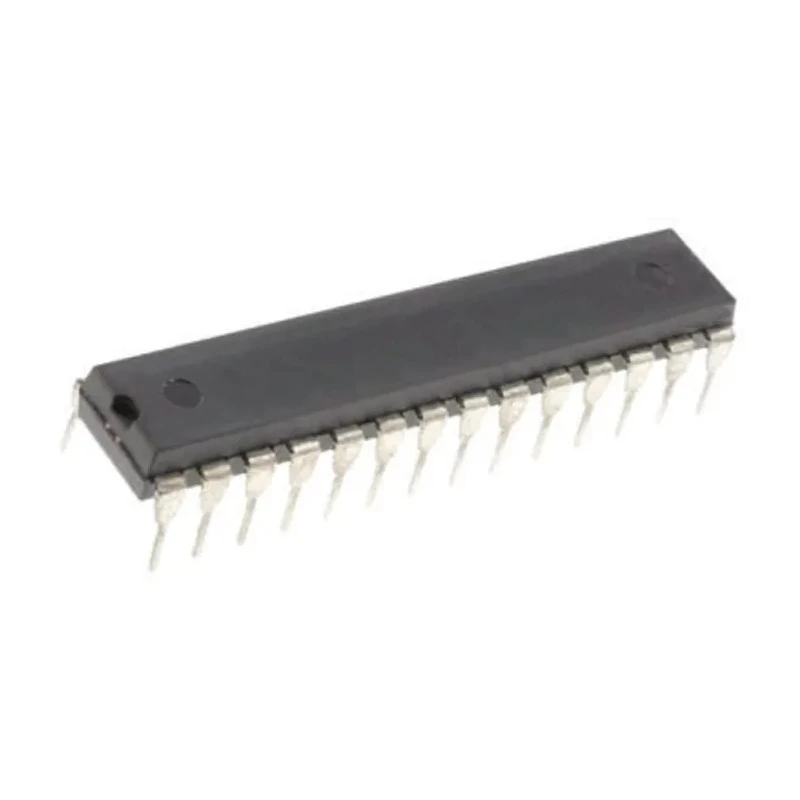

Microchip 8-Bit PIC Microcontroller, 20 MHz, 7 kB Program Memory, 256 B RAM, 28-Pin SPDIP PIC16F913-I/SP

Microchip PIC16F913-I/SP is an 8-bit microcontroller utilizing the renowned PIC architecture, designed for embedded control applications requiring moderate speed and memory capacity.

Operating at a maximum clock frequency of 20 MHz, this microcontroller offers 7 kB of program memory and 256 bytes of RAM, implemented using FLASH technology to ensure non-volatile storage and data integrity.

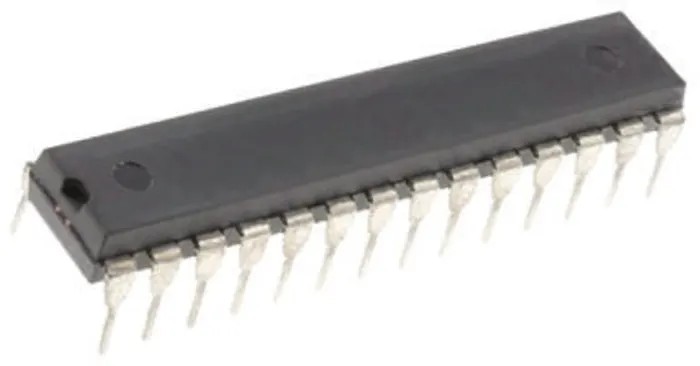

Packaged in a 28-pin SPDIP form factor with through-hole mounting, the device simplifies integration into development platforms and circuit boards. The PIC16F913-I/SP features 24 programmable I/O pins, supporting flexible interfacing with various digital components and sensors.

Analog functionality includes five channels of 10-bit ADC, two analog comparators, and a 5-bit digital-to-analog converter (DAC), enabling mixed-signal designs like sensor conditioning or signal modulation.

Timing precision is achieved through two 8-bit timers and one 16-bit timer, which allow for event counting, pulse width modulation, and scheduling tasks.

The microcontroller delivers stable operation over a wide voltage supply range from 1.8 V to 5.5 V and an extended temperature range from -40°C to 85°C, suitable for diverse industrial and commercial environments.

Additional embedded features include Power-On Reset, Brown-Out Reset, Power-Up Timer, Oscillator Start-Up Timer, Watchdog Timer, Programmable Low-Voltage Detect, In-Circuit Serial Programming, and Debug support, enhancing robustness and development efficiency.

Operates on a maximum clock frequency of 20 MHz enabling moderate-speed processing. 7 kB program memory with FLASH type facilitates reliable code storage. Equipped with 256 bytes of RAM for data handling. 28-pin SPDIP package enables through-hole mounting for easy prototyping and integration.

Supports 24 programmable input/output pins for versatile peripheral interfacing. Includes 5 channels of 10-bit ADC for precise analog signal processing. Contains 2 analog comparators and 1 x 5 bit DAC for additional signal conditioning.

Features multiple timers: two 8-bit and one 16-bit timer for timing control applications. Wide operating voltage range from 1.8 V to 5.5 V provides design flexibility. Industrial operating temperature range from -40°C to 85°C ensures reliability in harsh environments.

This microcontroller is suitable for embedded systems in industrial automation, consumer electronics, automotive sensor interfacing, and educational development projects needing a compact and versatile device with moderate memory and processing capabilities.
