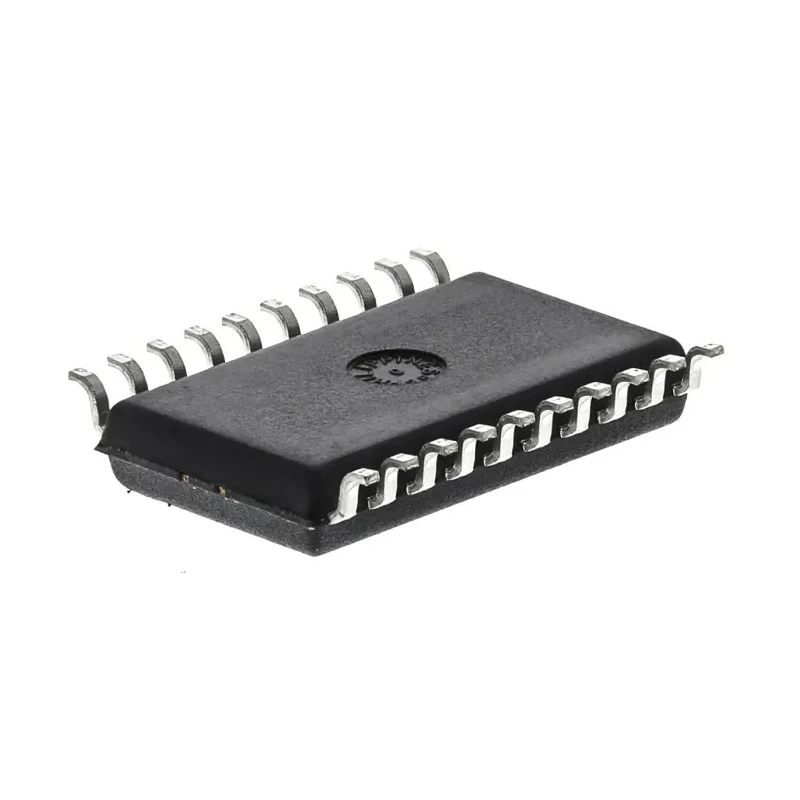

Microchip 8-bit PIC16F Microcontroller, 7kB FLASH, 20 MHz, 20-Pin SOIC PIC16F690-I/SO
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.35mm |
| Length | 12.8mm |
| Model | PIC16F690-I/SO |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 7kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 33 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 12 x 10 Bit |
| Program Memory Type | FLASH |
| Microchip, 8 bit PIC, PIC16F Microcontroller, 20 MHz FLASH, 20-Pin SOICBrand | Microchip |
Key Features
- Mid-range core with 8-level deep hardware stack and 35 instructions.
- Up to 5 MIPS performance with 7 KB FLASH program memory and 256 bytes RAM.
- Operates over a voltage range from 2 V to 5.5 V with a maximum power dissipation of 800 mW.
- Includes 12 channels of 10-bit ADC, two analogue comparators, and three timers.
- Operating temperature range from -40°C to 85°C suitable for industrial applications.
- Provides 33 programmable I/Os and features like Power-On Reset and Watchdog Timer.
- Available in a surface mount SOIC package measuring 12.8 mm length, 7.5 mm width, and 2.35 mm height.
Product Description
Microchip PIC16F690-I/SO is an 8-bit microcontroller from the PIC16F series, designed with a mid-range core architecture that supports a rich set of peripherals and features for flexible embedded system applications. This compact 20-pin SOIC packaged device operates at a maximum clock frequency of 20 MHz and includes 7kB of FLASH program memory and 256 bytes of RAM memory.
Featuring a 12-channel 10-bit ADC and two analogue comparators, it offers versatile interface options for analog signal processing. The microcontroller supports multiple timers including two 8-bit and one 16-bit timer, and enhanced capture, compare, PWM modules - ideal for precise timing and control tasks.
Operating voltage ranges from 2 V to 5.5 V with efficient power management including Power-On Reset, Power-Up Timer, Oscillator Start-Up Timer, Brown-Out Reset, and a Watchdog Timer for reliability. It boasts 33 programmable I/O pins supporting various digital I/O operations.
This PIC16F690 device provides an internal oscillator calibrated to ±1% accuracy enabling stable clock operations without external components. It is suitable for automotive, industrial, and consumer electronics sectors operating within a temperature range of -40°C to 85°C.
Its surface-mount SOIC package has compact dimensions of 12.8 mm x 7.5 mm x 2.35 mm, appropriate for space-constrained PCB designs. The device architecture supports RISC instruction set with 35 instructions and 8-level hardware stack facilitating efficient embedded software development.
Mid-range core with 8-level hardware stack and 35 instructions. 20 MHz maximum CPU speed with internal oscillator. 7 KB FLASH program memory and 256 bytes of RAM. 33 programmable I/O pins and 12 x 10-bit ADC channels. Multiple timers and enhanced PWM module support.
Power management features including POR, BOR, WDT, and PWRT. Operating temperature from -40°C to +85°C.
This microcontroller is ideal for embedded systems in industrial automation, consumer electronics, communications, and automotive electronics. It delivers robust performance with a compact footprint, making it a valuable component in demanding designs. Explore more Microchip Microcontrollers and components for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It operates over a voltage range from 2 V to 5.5 V.
This microcontroller features 7 kB of FLASH program memory.
The surface mount SOIC package measures 12.8 mm in length, 7.5 mm in width, and 2.35 mm in height.
It provides 33 programmable I/O pins.
The PIC16F690-I/SO includes three timers: two 8-bit timers and one 16-bit timer.
It operates within a temperature range of -40°C to 85°C, making it suitable for industrial applications.
This model features a 12-channel 10-bit ADC.
The maximum power dissipation is 800 mW.
It uses a RISC instruction set architecture with 35 instructions.
Yes, it includes two analogue comparators.
It includes features such as Power-On Reset, Power-Up Timer, Oscillator Start-Up Timer, Brown-Out Reset, and a Watchdog Timer.
