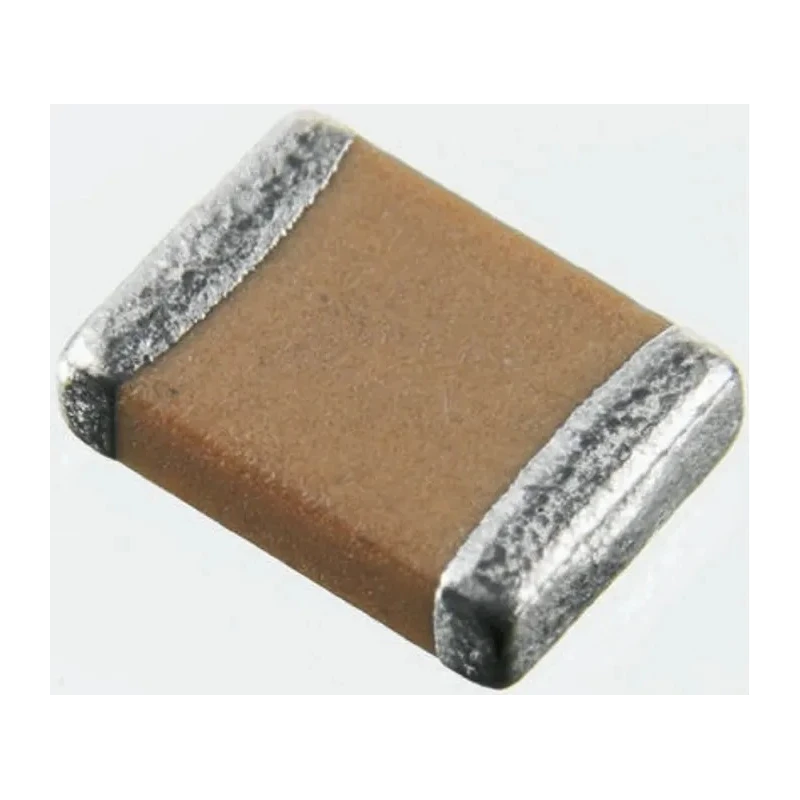

KYOCERA AVX 22 nF 1kV dc Multilayer Ceramic Capacitor, ±10% Tolerance, Surface Mount 1812 Case 1812AC223KAT1A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV dc |
| Brand | KYOCERA AVX |
| Height | 2.54mm |
| Length | 4.5mm |
| Model | 1812AC223KAT1A |
| Packaging | Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | Standard |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 22nF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 1812 |
| Dielectric | X7R |
| KYOCERA AVX 22nF MLCC, 1kV dc V, ±10% , SMDBrand | AVX |
Key Features
- Capacitance of 22nF provides stable performance in electronic circuits.
- X7R dielectric material supports temperature range from -55°C to 125°C.
- Compact 1812 package size with dimensions 4.5mm x 3.2mm x 2.54mm.
- Reel packaging enables efficient automated assembly processes.
- Surface mount termination facilitates easy PCB mounting.
- Standard series capacitor designed for reliable and consistent performance.
- Non-automotive grade component, ideal for general electronic use.
- RoHS compliant with no specific approvals or certifications.
Product Description
KYOCERA AVX 1812AC223KAT1A is a 22 nF Multilayer Ceramic Capacitor rated at 1kV dc with ±10% tolerance, designed for surface mount applications. It uses X7R dielectric, providing reliable operation over a temperature range of -55°C to 125°C, suitable for demanding environmental conditions.
This capacitor features a compact 1812 package (4.5mm length, 3.2mm width, and 2.54mm height) enabling high-density PCB designs with automated reel packaging for efficient assembly.
Typical applications include industrial electronics, power supplies, consumer devices, and manufacturing where stability and tolerance matter. Its surface mount termination type offers versatile PCB mounting.
Stable capacitance of 22 nF with ±10% tolerance ensures consistent performance. 1kV dc voltage rating supports high-voltage circuit applications. X7R dielectric material enables temperature resilience from -55°C up to 125°C.
Compact 1812 package dimensions favor space-saving designs. Reel packaging is optimized for automated assembly lines. Surface mount termination facilitates soldering and placement. Standard series with consistent quality for general use.
Not automotive grade, suitable for industrial and general electronics. RoHS compliant, supporting environmental regulations. Suited for industrial manufacturing, power and signal conditioning, and consumer electronics.
This KYOCERA AVX 1812AC223KAT1A capacitor is a professional-grade MLCC designed to meet high-performance technical requirements for electronics manufacturing and industrial applications. Browse more capacitors and electronic components on EnvMart for reliable parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 22 nF with a tolerance of ±10%.
It is rated for a maximum voltage of 1kV dc.
The capacitor has a length of 4.5mm, a width of 3.2mm, and a height of 2.54mm.
It uses X7R dielectric material, which supports a temperature range from -55°C to 125°C.
It is packaged on a reel, which facilitates efficient automated assembly processes.
This model features a surface mount termination type, allowing for easy PCB mounting.
The maximum operating temperature is 125°C.
The minimum operating temperature is -55°C.
No, this capacitor is not automotive grade and is intended for general electronic use.
It belongs to the standard series of capacitors, designed for reliable and consistent performance.
Typical applications include industrial electronics, power supplies, consumer devices, and manufacturing.
The country of origin for this capacitor is India.
