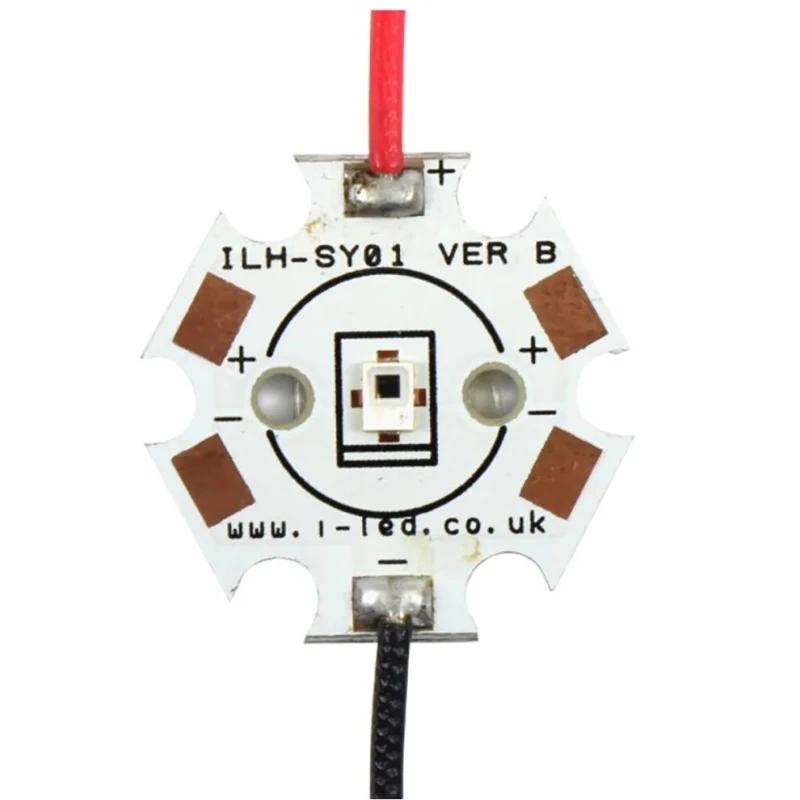

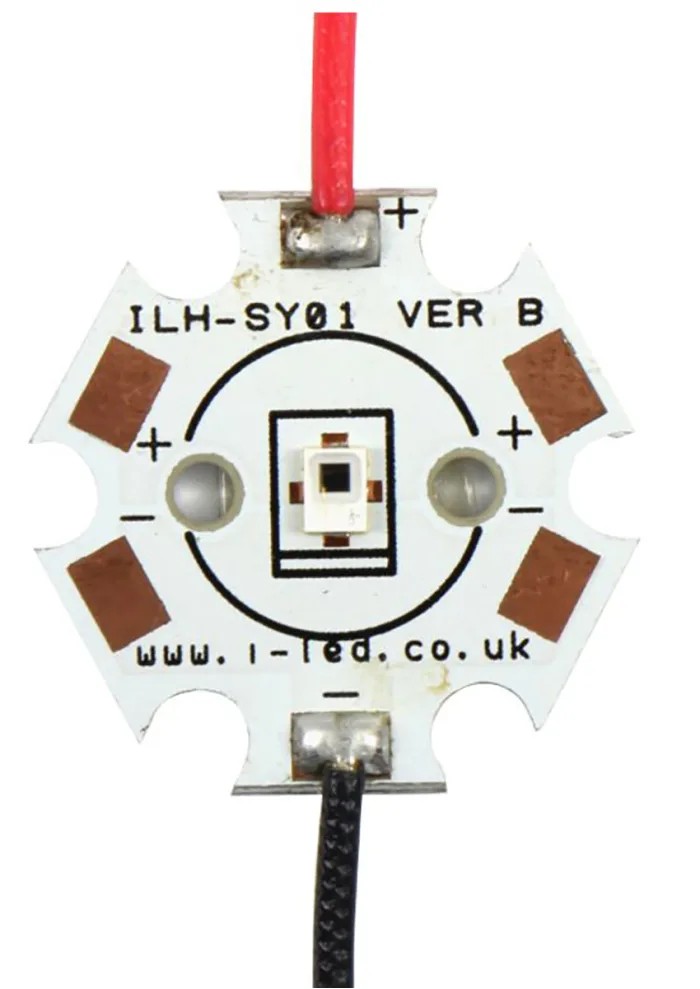

Intelligent LED Solutions SYNIOS P2720 940 nm IR LED Surface Package ILH-IS01-94SN-SC201-WIR200 ILH-IS01-94SN-SC201-WIR200.

Intelligent LED Solutions ILH-IS01-94SN-SC201-WIR200 is a new, high-quality SYNIOS P2720 infrared (IR) LED surface package with a peak wavelength of 940 nm and radiant intensity of 360 mW/sr. Designed for reliable and long-lasting performance, this IR LED is housed in a compact surface mount package measuring 20 mm by 20 mm by 2.2 mm, making it suitable for various electronic and optical applications.

Constructed from aluminium LED material with excellent thermal properties, it supports a maximum supply voltage of 3.6 V and includes 4 pins for secure electrical connections. Its wide radiation angle of 120° allows for comprehensive IR illumination coverage, advantageous for applications requiring broad sensing or surveillance area coverage.

The LED can be mounted easily using M3 screws, facilitating stable installation and integration into larger lighting or sensing systems. This package is part of the SYNIOS P2720 series and can be linked to produce longer chains for extended IR lighting solutions. It offers a lifetime of up to 50,000 hours at 70% original brightness, ensuring durable and consistent output over time.

Typical use cases include CCTV surveillance systems, safety systems, machine vision, and eye tracking devices, providing efficient IR illumination with dependable performance under industrial and commercial environments.

The product complies with multiple standards and approvals, including EN60598-1, IEC 61000-3-2, CE standards, IEC 62471:2006, ENEC certifications, EN 55015, IEC 61547, and IEC/EN 62384, confirming its suitability for demanding electronic applications. It is made in the United Kingdom, ensuring high manufacturing quality standards.

The LED features a peak wavelength of 940 nm suitable for infrared applications. It has a radiant intensity of 360 mW/sr ensuring strong IR output. The surface mount package includes 1 LED with 4 pins for easy PCB integration.

The radiation angle is 120°, providing broad illumination coverage. Constructed using aluminium LED material for durability and thermal management. Has a maximum supply voltage of 3.6 V for safe and efficient operation. Designed with mounting holes for M3 screws to facilitate straightforward installation.

The compact size measures 20 mm x 20 mm x 2.2 mm, ideal for compact assemblies. Typical applications include CCTV surveillance, machine vision systems, and eye tracking equipment. This product offers up to 50,000 hours lifetime to 70% brightness, assuring longevity.
