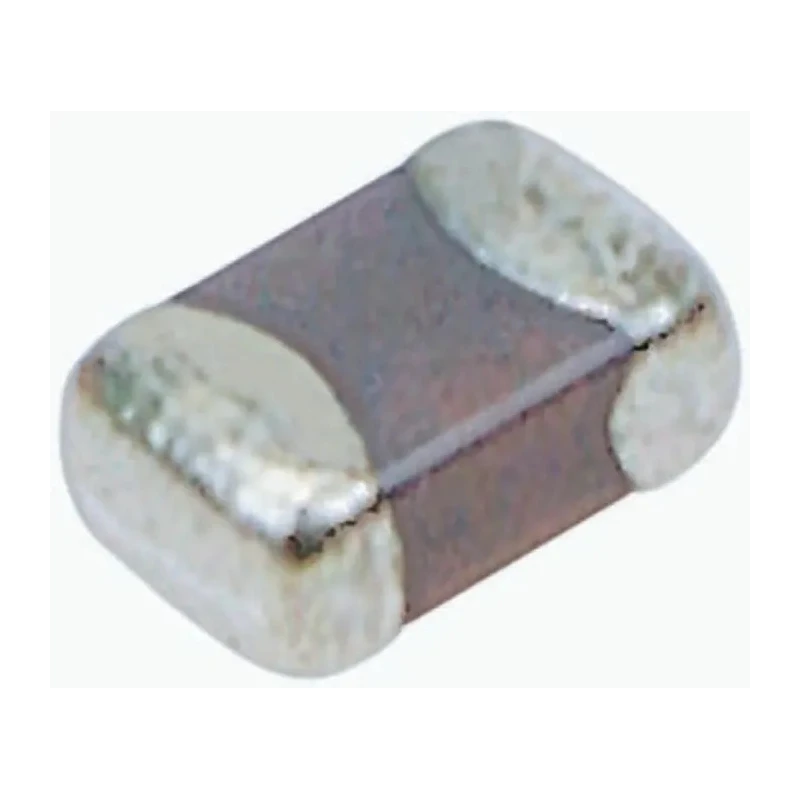

KYOCERA AVX 100 pF Multilayer Ceramic Capacitor, 50V dc, ±5 % Tolerance, Surface Mount, 0805 Package 08055A101JAT2A

KYOCERA AVX 08055A101JAT2A is a premium multilayer ceramic capacitor rated at 100 pF capacitance with a maximum DC voltage of 50V. It features a C0G dielectric material classified as EIA Class I, offering excellent temperature stability with capacitance variation within ±5 % tolerance. The capacitor is housed in a compact 0805 surface mount package, measuring 2.01 mm in length, 1.25 mm in width, and 0.94 mm in height, optimized for modern electronic assemblies.

Designed for industrial and commercial electronics, this capacitor supports a wide operating temperature range from -55°C to 125°C, making it suitable for environments with demanding thermal requirements. The termination type is surface mount with nickel barrier terminals plated with Tin, providing robust mechanical strength and excellent solderability for automated PCB assembly lines.

This component is ideal for applications requiring high precision and low loss, including use as snubbers in high-frequency power converters, resonators in switched-mode power supplies (SMPS), and high-voltage coupling or DC blocking circuits. The capacitor exhibits low equivalent series resistance (ESR) at high frequencies, which helps reduce noise and improves circuit reliability. X5R variants are also available for applications needing temperature-stable ceramics within EIA Class II materials.

The KYOCERA AVX 08055A101JAT2A is supplied in reels, facilitating efficient automated insertion into electronic manufacturing processes, thereby increasing production throughput and consistency. This product does not conform to automotive standards but meets standard industrial and consumer electronics requirements.

Constructed with C0G dielectric for temperature stability and low capacitance variation. Designed with a standard 0805 package size enabling efficient PCB integration. Capable of operating between -55°C and 125°C for reliable performance.

Nickel barrier terminations coated with plated Tin ensure superior solderability. Suitable for use in high-frequency power converters and resonators in switched-mode power supplies. Low ESR characteristics enable reduced noise in electronic circuits.

Supplied in reels for improved manufacturing efficiency and automated assembly.

This multilayer ceramic capacitor is well-suited for industrial, commercial, and laboratory electronic designs requiring reliable and precise capacitance performance. Explore more KYOCERA AVX electronic components and Multilayer Ceramic Capacitors on EnvMart for comprehensive solutions.
