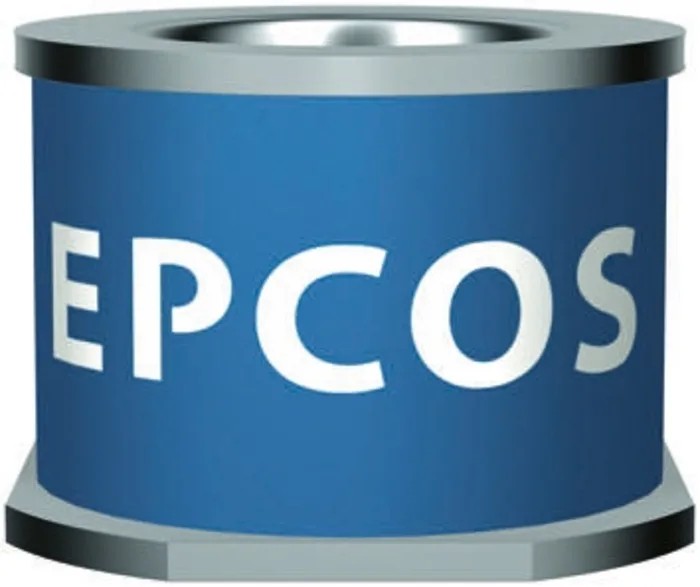

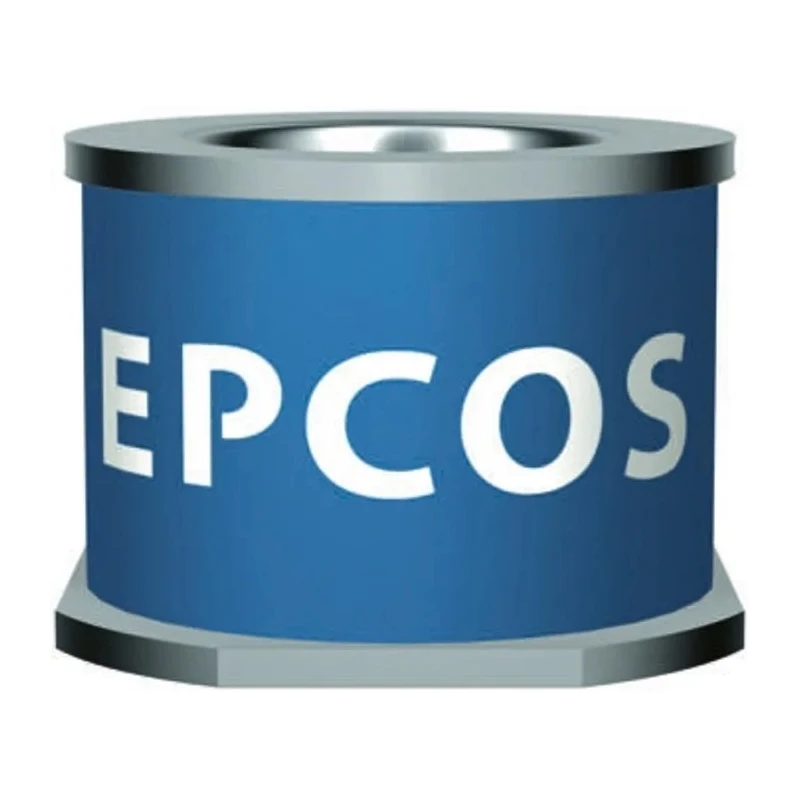

TDK EHV 230 V DC 20 kA Surface Mount 2 Electrode Arrester Gas Discharge Tube B88069X2240C103
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Length | 6.05mm |
| Model | B88069X2240C103 |
| Mount Type | Surface |
| Series | EHV |
| Maximum Operating Temperature | 90°C |
| Capacitance | 1.5pF |
| Minimum Operating Temperature | -40°C |
| Suppressor Type | 2 Electrode Arrester |
| Maximum Voltage | 230V dc |
| Maximum Surge Current | 20kA |
| DC Spark Over Voltage | 230V dc |
| Impulse Spark Over Voltage | 550V |
| TDK, EHV 230 V 20 kA, Through Hole 2 Electrode Arrester Gas Discharge TubeBrand | TDK |
Key Features
- Supports a maximum surge current of 20 kA for transient voltage protection.
- Operational DC voltage of 230 V with a spark over voltage matched to specifications.
- Impulse spark over voltage rating of 550 V protects sensitive electronics effectively.
- Compact length of 6.05 mm suitable for PCB surface mounting.
- Capacitance of 1.5 pF ensures minimal signal interference.
- Operates reliably within a temperature range of -40°C to 90°C.
- Conforms to international standards including DIN 57845, ITU-T Rec. K.12, IEC 60068-1, and DIN ISO 2859.
- Designed for robust surge protection in telecommunication exchange main distribution frames and subscriber-end equipment.
Product Description
TDK B88069X2240C103 Gas Discharge Tube is an advanced miniature gas-filled device offering surge protection through its surface mount design optimized for electronic circuits.
Featuring a 2 electrode arrester configuration, this product supports a maximum surge current of 20 kA and a DC operating voltage of 230 V, providing reliable defense against transient voltages and electrical surges.
Its compact 6.05 mm length and low capacitance of 1.5 pF make it suitable for integration into telecommunication equipment without compromising signal integrity. Designed to operate across a wide temperature range from -40°C to 90°C, this gas discharge tube ensures durability in varied environmental conditions.
The product meets several international standards including DIN 57845, VDE0845, ITU-T Recommendation K.12, IEC 60068-1, and DIN ISO 2859, ensuring quality and performance compliance.
Maximum surge current: 20 kA for high protection capability. 230 V DC spark over voltage rating. Impulse spark over voltage of 550 V for transient spikes. Surface mount type for easy PCB installation. Capacitance of 1.5 pF to maintain signal clarity.
Extensive temperature operating range from -40°C to 90°C. Conforms to relevant IEC, DIN, ITU-T, and VDE standards. Ideal for telecommunication exchange and subscriber-end surge protection. This gas discharge tube is applicable in industrial electronic, telecommunication, and power surge protection systems where high performance and reliability are critical.
Explore more electronic components, surge protection devices, and Gas Discharge Tubes on EnvMart to ensure robust protection solutions for your engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This gas discharge tube supports a maximum surge current of 20 kA, providing effective transient voltage protection.
The operational DC voltage for this model is 230 V.
The impulse spark over voltage rating is 550 V, which helps protect sensitive electronics from transient spikes.
The capacitance of this gas discharge tube is 1.5 pF, which ensures minimal signal interference.
It operates reliably within a temperature range of -40°C to 90°C.
The length of this model is 6.05 mm, making it suitable for surface mounting on PCBs.
This gas discharge tube features a surface mount design, allowing for easy integration into electronic circuits.
It conforms to several international standards including DIN 57845, ITU-T Rec. K.12, IEC 60068-1, and DIN ISO 2859.
This model is designed for robust surge protection in telecommunication exchange main distribution frames and subscriber-end equipment.
This unit is a 2 electrode arrester type, providing effective surge protection.
The country of origin for this gas discharge tube is India.
This gas discharge tube belongs to the EHV series, designed for enhanced voltage protection.
