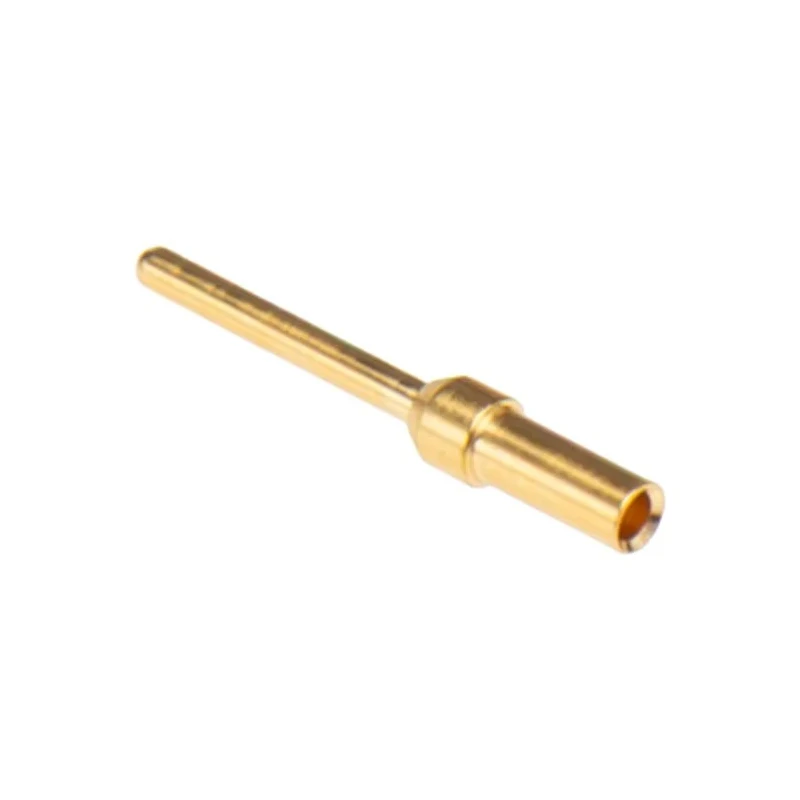

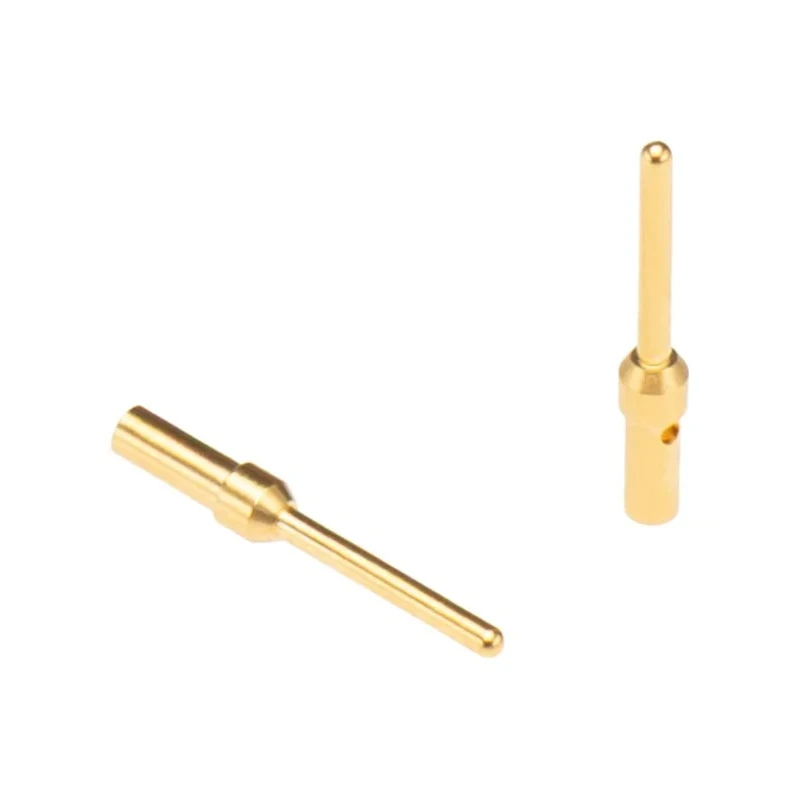

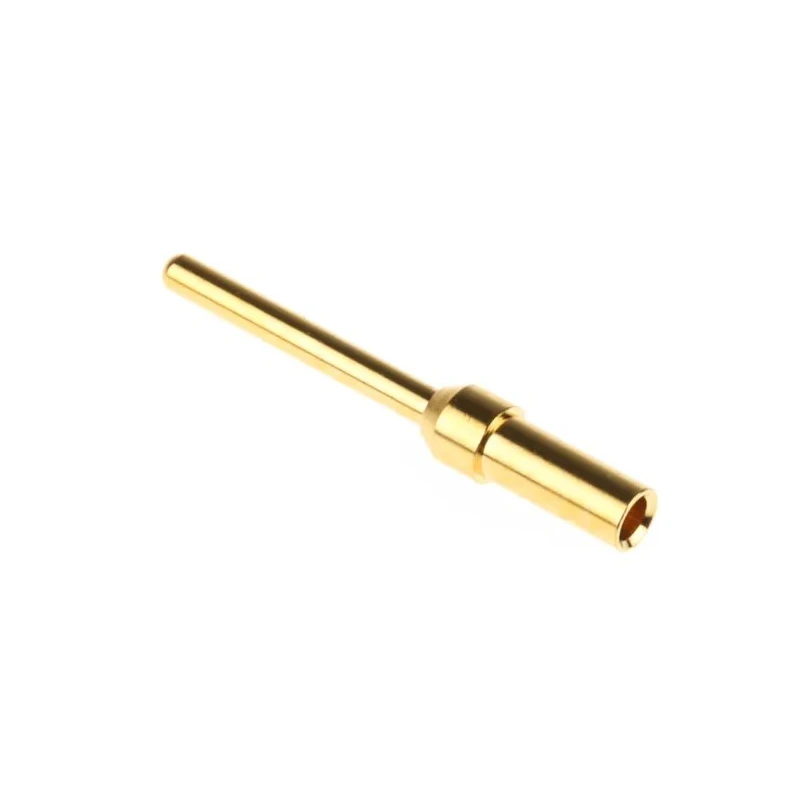

HARTING Male Crimp Circular Connector Contact 1.04 mm Contact Size, 20/24 AWG Wire Size, Gold over Nickel Plating 09670008576
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | HARTING |
| Length | 14.2mm |
| Gender | Male |
| Contact Material | Copper Alloy |
| Series | D-Sub Standard |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Contact Type | Signal |
| Minimum Operating Temperature | -40°C |
| Wire size | 20, 24AWG |
| For Use With | D-Sub Connector |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Nickel |
| Contact Size | 1.04 mm |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Contact size of 1.04 mm ensures precise signal connections.
- Wire size compatibility with 20 AWG and 24 AWG conductors.
- Gold over nickel plating provides excellent corrosion resistance and conductivity.
- Copper alloy material delivers stable electrical performance.
- Crimp termination type for secure and gas-tight connections.
- Maximum contact resistance of 10 milliohms to minimize signal loss.
- Operating temperature range from -40°C to 85°C for diverse environments.
- Suitable for D-Sub connector assemblies in industrial and automation applications.
Product Description
HARTING 09670008576 Male Crimp Circular Connector Contact features a 1.04 mm contact size and is engineered for high-quality signal transmission within D-Sub connector assemblies. This component is ideal for industrial communication and control systems requiring compact and reliable electrical interfaces. It is designed primarily for crimp termination with 20 to 24 AWG stranded wires, creating durable and gas-tight connections that withstand operational stresses.
The contact is made from copper alloy for consistent conductivity and mechanical robustness. The gold plating over nickel enhances corrosion resistance, reducing oxidation and maintaining low contact resistance of 10 milliohms, thereby ensuring minimal signal degradation during use. Its 14.2 mm length supports seamless panel and connector assembly integration.
With an operating temperature range of -40°C to 85°C, it is well-suited for demanding environments in automation control cabinets, test and measurement equipment, industrial communication racks, and retrofit applications for existing D-Sub connector looms. The contact supports precise and reliable signal harness assemblies and meets RoHS standards for environmental compliance.
Contact size of 1.04 mm for precise signal integrity. Gold over nickel plating improves corrosion resistance and conductivity. Copper alloy construction ensures stable electrical performance. Crimp termination compatible with 20 AWG and 24 AWG wire sizes.
Maximum contact resistance of 10 milliohms minimizes signal loss. Operating temperature range from -40°C to 85°C. Length of 14.2 mm for proper assembly fitment. Suitable for D-Sub circular connector assemblies. RoHS compliant for environmental safety.
This product is an essential component for industrial, electrical, and communication applications requiring dependable connector performance. Explore more in the Circular Connector Contacts category at EnvMart for comprehensive connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact size of this connector is 1.04 mm, ensuring precise signal connections.
This model is compatible with 20 AWG and 24 AWG stranded wires for crimp termination.
It features gold over nickel plating, which provides excellent corrosion resistance and conductivity.
The maximum contact resistance is 10 milliohms, which helps minimize signal loss.
The operating temperature range is from -40°C to 85°C, making it suitable for diverse environments.
The length of this connector contact is 14.2 mm, which supports proper assembly fitment.
It is made from copper alloy, ensuring stable electrical performance.
Yes, this product is RoHS compliant for environmental safety.
This model uses crimp termination for secure and gas-tight connections.
It is suitable for D-Sub connector assemblies in industrial and automation applications.
This contact is designed for use with D-Sub connectors, primarily in industrial communication and control systems.
The country of origin for this connector contact is Switzerland.
