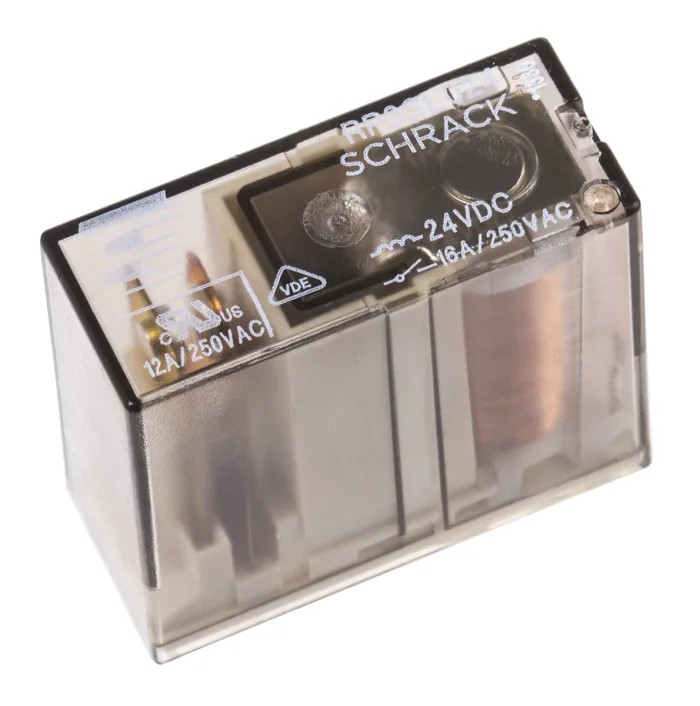

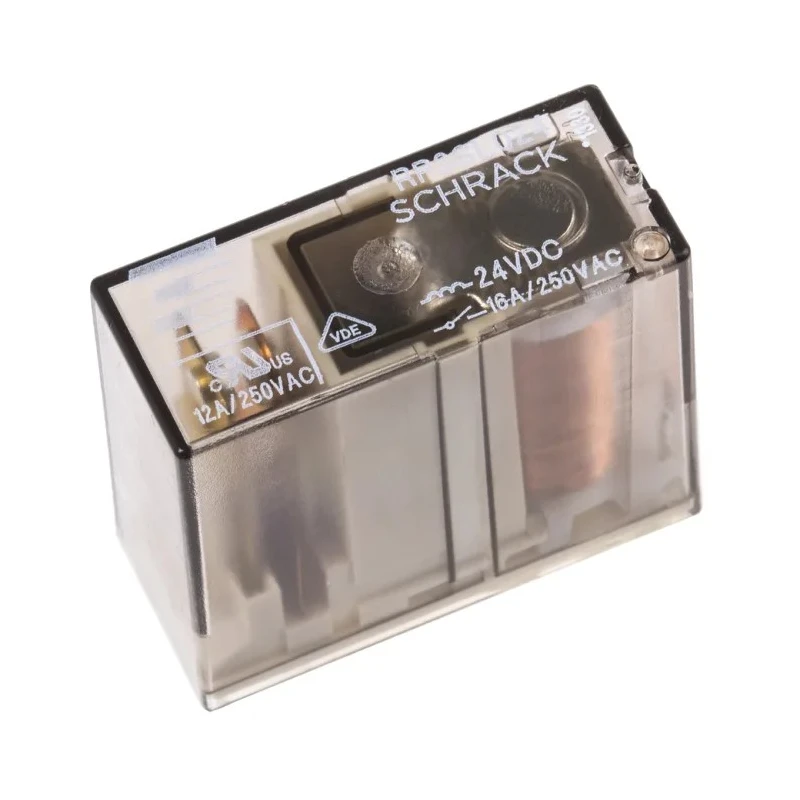

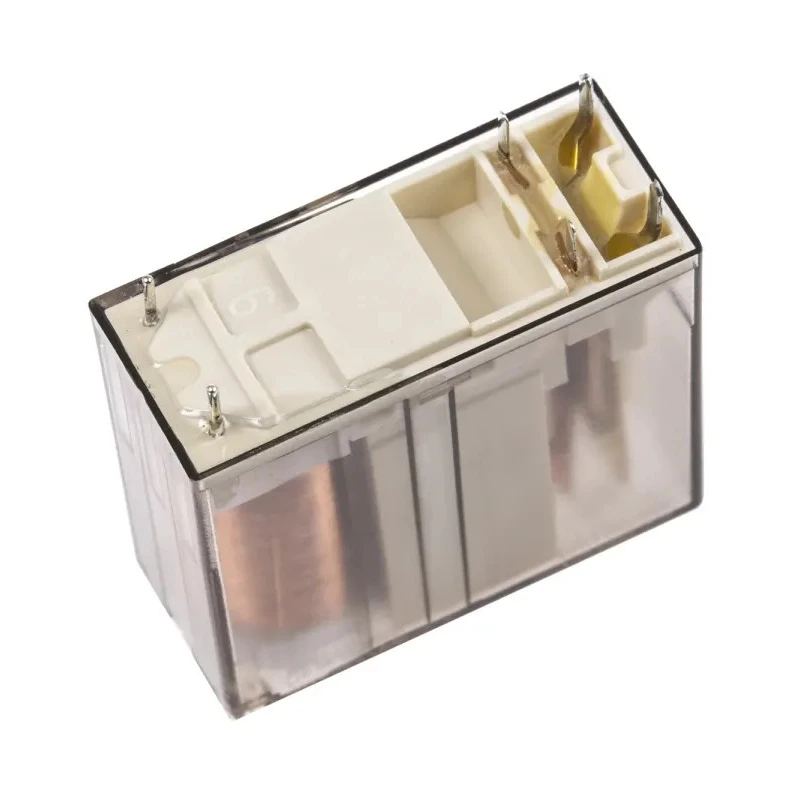

TE Connectivity PCB Non-Latching Relay 24V dc Coil 16A Switching Current SPST RP3SL024 1-1393230-1
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 25.5mm |
| Operating Temperature Range | -40 to +70°C |
| Length | 29mm |
| Model | RP3SL024 1-1393230-1 |
| Width | 12.6mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | MY4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 500 mW |
| Isolation Coil To Contact | 4000Vac |
| Creepage & clearance | 8 mm |
Key Features
- Non-latching relay designed for PCB mounting applications.
- Coil power rating of 500 mW enables efficient operation.
- Operating temperature range from -40°C to 70°C supports diverse environments.
- Silver alloy contact material ensures reliable electrical performance.
- Isolation between coil and contact rated at 4000 Vac for high-voltage applications.
- Switching AC voltage rated up to 250V ac with 4 kVA switching power.
- Creepage and clearance distance of 8 mm for safety compliance.
- Contact resistance of 50 mΩ minimizes power loss during switching.
Product Description
TE Connectivity RP3SL024 1-1393230-1 is a high-quality PCB non-latching relay engineered for precise control in electrical circuits and automation systems. It operates on a 24V dc coil with a coil power consumption of 500 mW, delivering a steady switching current capacity of 16A, suitable for power relay applications requiring SPST (Single Pole Single Throw) contact configuration.
This relay is engineered with silver alloy contacts that exhibit low contact resistance of 50 mΩ, ensuring efficient current flow and minimal energy loss. The relay's isolation between coil and contacts withstands up to 4000 Vac, adding robust safety in industrial, commercial, and automation environments.
With an operating temperature range from -40°C to +70°C, the RP3SL024 relay maintains reliable performance under varying thermal conditions. Its compact physical dimensions (Height: 25.5mm, Length: 29mm, Width: 12.6mm) allow for efficient PCB mounting in equipment with space constraints.
The relay supports switching AC voltages up to 250V ac and switching power of 4 kVA, making it suitable for lighting control, timers, motor control, and home automation use cases. The 8 mm creepage and clearance distances comply with safety standards, and the product is RoHS compliant for environmental safety.
Manufactured in the Czech Republic, this TE Connectivity relay belongs to the MY4 series, known for robust performance and durability. It is designed for solder terminal connections and fits DIN rail mounting sockets (stock no. 400-9130), facilitating easy integration into electrical control panels.
The RP3SL024 1-1393230-1 relay is a reliable component for industrial automation, HVAC control systems, manufacturing equipment, and laboratory automation due to its high switching ratings and compact design.
Non-latching PCB-mounted relay for industrial and automation applications. 24V dc coil voltage with 500 mW coil power consumption. Switching current of 16A and switching AC voltage of 250V ac. Durable silver alloy contact material with low resistance.
Wide operating temperature range from -40°C to +70°C. High isolation between coil and contacts (4000 Vac). Compact size ensures easy PCB integration. RoHS compliant and manufactured in the Czech Republic. Explore EnvMart for more Power Relays and control devices by TE Connectivity and other leading brands tailored for electrical and automation industries.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 16A, making it suitable for various power relay applications.
The relay operates on a 24V dc coil voltage, which is essential for its functionality in electrical circuits.
The dimensions of this relay are 25.5mm in height, 29mm in length, and 12.6mm in width, allowing for efficient PCB mounting.
It operates effectively within a temperature range of -40°C to +70°C, suitable for diverse environments.
The isolation between the coil and contacts is rated at 4000 Vac, providing robust safety for high-voltage applications.
This relay features a Single Pole Single Throw (SPST) contact configuration, which is common for basic switching applications.
The contact material is silver alloy, which ensures reliable electrical performance with low contact resistance.
It can switch AC voltages up to 250V ac, making it suitable for various applications including lighting control and motor control.
The contact resistance is 50 mΩ, which helps minimize power loss during switching operations.
The coil power consumption is 500 mW, which allows for efficient operation of the relay.
Yes, this relay is RoHS compliant, ensuring it meets environmental safety standards.
It uses solder terminals for connections, facilitating easy integration into various electrical systems.
