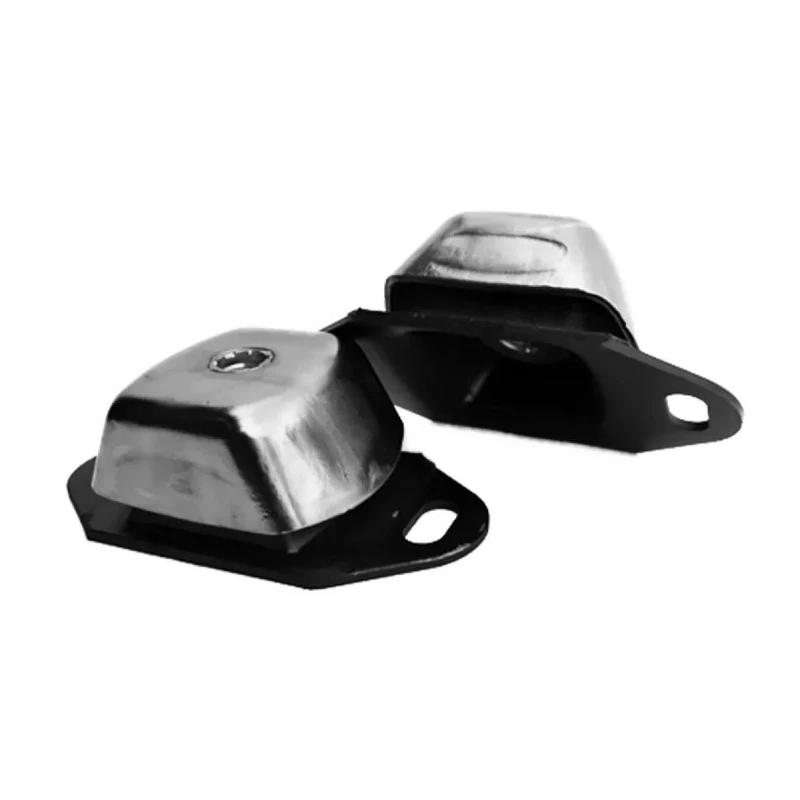

RS PRO M12 Marine Anti-Vibration Mount Rubber 50 kg Compression Load 120 mm OD 40 mm Height 189-3300
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Material | Rubber |
| Model | 189-3300 |
| Series | RS PRO |
| Outside diameter | 120mm |
| Thread Size | M12 |
| Overall height | 40mm |
| Standards/Approvals | RoHS |
| Anti Vibration Mount Type | Marine |
| Shore Hardness | 45 Shore A |
| Compression Load | 50kg |
| Compression Deflection | 5.4mm |
Key Features
- The mount is made of rubber material with 45 Shore A hardness for effective vibration damping.
- It features a metal top cover to protect the rubber from oil and diesel fuel contamination.
- Built-in bump and rebound control enhances durability and performance.
- The mount provides 50% lower vertical stiffness for effective vibration isolation.
- Longitudinal stiffness is 2.5 times the vertical allowing for engine thrust absorption.
- Suitable for static and mobile generator sets, pumps, compressors, and marine engines.
- Designed originally for marine engines taking propeller thrust.
- Compact dimensions with 120 mm outside diameter and 40 mm height.
Product Description
RS PRO 189-3300 is a marine type anti-vibration mount featuring an M12 thread size, 50 kg compression load capacity, 120 mm outside diameter, and 40 mm overall height. It is constructed from high-quality rubber material with a Shore hardness of 45 Shore A, making it effective for damping vibrations in demanding environments.
The mount’s robust metal top cover protects the rubber element against contamination from oil and diesel fuels, extending product life. It incorporates built-in bump and rebound control features that ensure stability and resilience under dynamic mechanical loads.
This mount exhibits 50% reduced vertical stiffness compared to traditional mounts, improving vibration isolation performance. Its longitudinal stiffness is 2.5 times the vertical stiffness, enabling it to absorb thrust forces typical of marine engines.
Originally designed for marine engine mounting applications that involve propeller thrust, this mount is now widely used for both static and mobile generator sets, pumps, and compressors, providing reliable vibration control in industrial and marine environments.
The mount is made of durable rubber with 45 Shore A hardness. Metal top cover protects rubber element from oil and fuel contamination. Built-in bump and rebound control feature enhances mount performance. Provides 50% lower vertical stiffness for improved isolation.
Longitudinal stiffness suitable for marine engine thrust loads. Applicable to generator sets, pumps, compressors, and marine engines. Compact size: 120 mm outside diameter and 40 mm height. Compression deflection of 5.4 mm ensures effective load absorption.
This product is ideal for use in industrial machinery, marine equipment, and HVAC systems where vibration control and noise reduction are critical. It complies with RoHS standards ensuring safe material use. RS PRO mounts are known for their reliability and durability in harsh operating conditions.
Explore the complete range of industrial anti-vibration mounts from RS PRO available on EnvMart for all your machinery isolation needs.
Explore more products in our Anti Vibration Mounts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The mount has a compression load capacity of 50 kg.
This model has an outside diameter of 120 mm and an overall height of 40 mm.
It is constructed from rubber material with a Shore hardness of 45 Shore A.
This mount provides 50% lower vertical stiffness compared to traditional mounts, enhancing vibration isolation performance.
The metal top cover protects the rubber element from contamination by oil and diesel fuels, extending the product's life.
It is suitable for static and mobile generator sets, pumps, compressors, and marine engines.
The compression deflection is 5.4 mm, which ensures effective load absorption.
It features an M12 thread size.
The longitudinal stiffness is 2.5 times the vertical stiffness, allowing it to absorb thrust forces typical of marine engines.
Yes, it complies with RoHS standards, ensuring safe material use.
The mount is manufactured in India.
This mount belongs to the RS PRO series.
