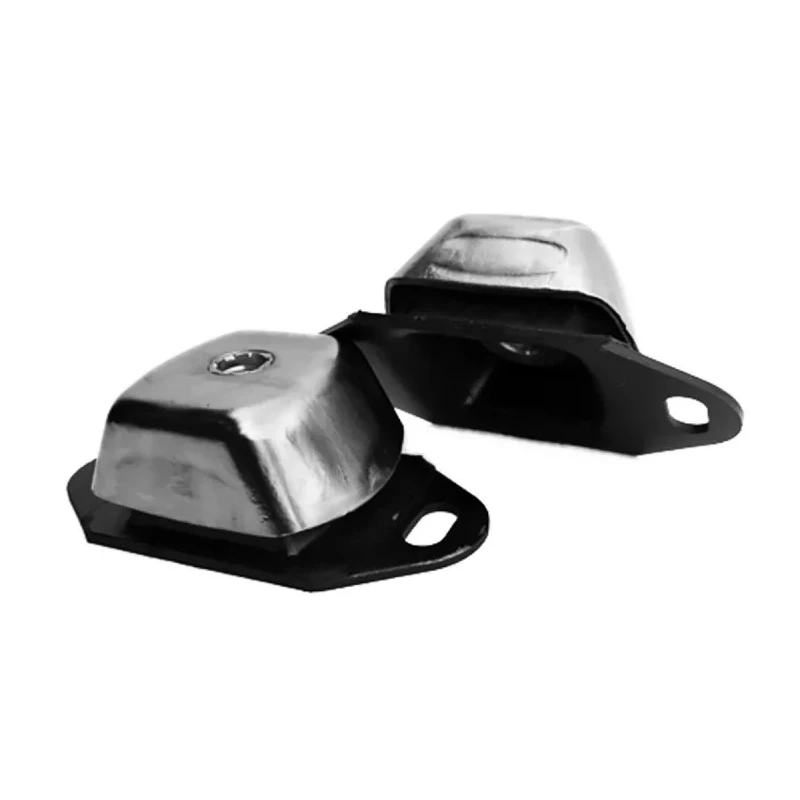

RS PRO M12 Marine Anti-Vibration Mount with 100 kg Compression Load, 120 mm OD, 40 mm Height 189-3299

RS PRO 189-3299 Marine Anti-Vibration Mount is engineered to provide reliable vibration isolation for marine engines and various industrial machinery. Featuring robust M12 threaded mounting, this anti-vibration mount can withstand compression loads up to 100 kg. It has an overall height of 40 mm and an outside diameter of 120 mm, crafted with durable rubber material to offer long-lasting service life.

The metal top cover protects the rubber element from contamination by oil and diesel fuel, ensuring enduring performance in harsh environments. The mount incorporates a built-in bump and rebound control feature that safeguards machinery against shock loads during operation.

This mount offers 50% lower vertical stiffness compared to similar mounts, greatly enhancing vibration reduction while ensuring longitudinal stiffness is 2.5 times the vertical stiffness. This design makes it especially suitable for marine engines that experience propeller thrust, as well as for static and mobile generator sets, pumps, and compressors.

With a Shore hardness of 70 Shore A and RoHS compliance, it meets environmental and safety standards expected in industrial applications. The compression deflection of 4.8 mm further optimizes vibration absorption making it effective across static and mobile equipment.

The RS PRO Marine Anti-Vibration Mount is widely used in industrial, marine, agricultural, and construction settings, offering dependable vibration damping to extend equipment lifespan and maintain operational stability.

Designed originally for marine engines to manage propeller thrust. Constructed with rubber material and a metal top cover for oil and fuel resistance. Features built-in bump and rebound control. Offers 50% lower vertical stiffness to reduce vibration effectively.

Longitudinal stiffness is 2.5 times vertical stiffness for marine engine thrust handling. Suitable for static and mobile generator sets, pumps, compressors, and marine engines. Complies with RoHS standards and has a Shore hardness of 70 Shore A.

Compression deflection of 4.8 mm ensures efficient vibration damping. Explore more products in the Anti Vibration Mounts category to find tailored solutions for your industrial machining, marine, or construction vibration isolation needs.
