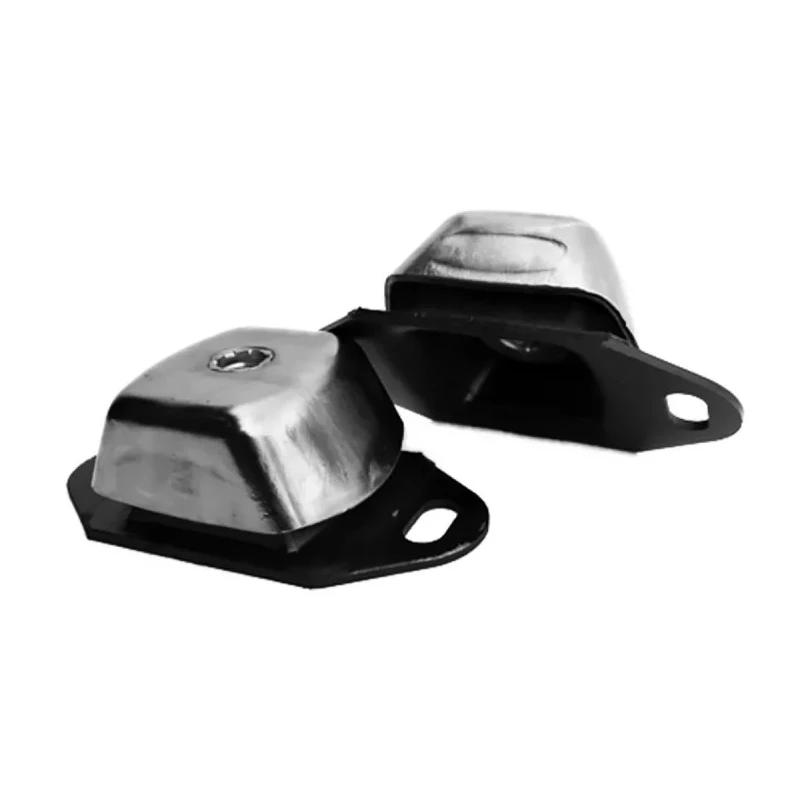

RS PRO M16 Marine Anti-Vibration Mount with 450kg Compression Load, 183mm Outside Diameter, 50mm Height 189-3262
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Material | Rubber |
| Model | 189-3262 |
| Series | RS PRO |
| Outside diameter | 183mm |
| Thread Size | M16 |
| Overall height | 50mm |
| Standards/Approvals | RoHS |
| Anti Vibration Mount Type | Marine |
| Shore Hardness | 70 Shore A |
| Compression Load | 450kg |
| Compression Deflection | 5.3mm |
Key Features
- Designed specifically for marine applications and engine mounting to absorb vibrations effectively.
- Features a metal top cover protecting the rubber from oil and diesel contamination.
- Offers a 70 Shore A hardness rubber element for resilient compression and durability.
- Equipped with built-in bump and rebound control for enhanced stability and performance.
- Provides 50% lower vertical stiffness for superior vibration damping.
- Longitudinal stiffness is 2.5 times the vertical stiffness, suitable for taking engine thrust loads.
- Ideal for static and mobile generator sets, pumps, compressors, and marine engine mounts.
- Constructed from robust rubber material ensuring long service life in harsh environments.
Product Description
RS PRO 189-3262 is an M16 thread sized marine anti-vibration mount designed for efficiently isolating vibrations in marine engines and other heavy machinery. It features a robust rubber element with 70 Shore A hardness and a metal top cover that protects against oil and diesel fuel contamination, making it suitable for challenging marine environments. The mount's overall height measures 50mm with an outside diameter of 183mm, supporting a compression load capacity of 450kg while maintaining a compression deflection of 5.3mm.
Originally engineered to handle marine engine thrust and propeller forces, this anti-vibration mount has extensive applications in both static and mobile machinery. Its built-in bump and rebound control enhance performance by controlling dynamic loads, providing improved vibration isolation and longevity of machinery. The design incorporates 50% lower vertical stiffness compared to standard mounts for better absorption of vibrations, while the longitudinal stiffness is 2.5 times higher, designed to resist engine thrust effectively.
This mount is widely used in industrial settings including generator sets, pumps, compressors, and marine engines, ensuring machinery stability and reduced noise and wear. The rubber material and marine-grade standards compliance (RoHS) highlight its durability and environmental safety. The RS PRO series maintains consistent quality standards for industrial vibration control solutions.
Designed for marine and industrial engine mounting applications. Metal top cover protects rubber from oil and diesel contamination. Built-in bump and rebound control feature included. 50% lower vertical stiffness for enhanced vibration absorption.
Longitudinal stiffness 2.5x vertical stiffness to handle engine thrust. Suitable for generator sets, compressors, and pumps. Rubber construction with 70 Shore A hardness ensures durability.
The RS PRO 189-3262 is an essential component for reducing vibration, extending machinery life, and improving operational performance in industrial and marine environments. Explore more anti-vibration mounts and industrial mounting solutions on EnvMart for your mechanical equipment needs.
Explore more products in our Anti Vibration Mounts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO M16 Marine Anti-Vibration Mount has a compression load capacity of 450kg.
This anti-vibration mount has an outside diameter of 183mm and an overall height of 50mm.
It is constructed from rubber, designed to withstand harsh marine environments.
The rubber element of this model has a Shore hardness rating of 70 Shore A.
This model has 50% lower vertical stiffness compared to standard mounts, which enhances vibration absorption.
The compression deflection of the RS PRO M16 Marine Anti-Vibration Mount is 5.3mm.
It is ideal for static and mobile generator sets, pumps, compressors, and marine engine mounts.
It is equipped with built-in bump and rebound control to improve stability and performance during operation.
The mount features an M16 thread size.
This model complies with RoHS standards, ensuring environmental safety.
The longitudinal stiffness is 2.5 times higher than the vertical stiffness, allowing it to effectively handle engine thrust loads.
The RS PRO M16 Marine Anti-Vibration Mount is manufactured in India.
