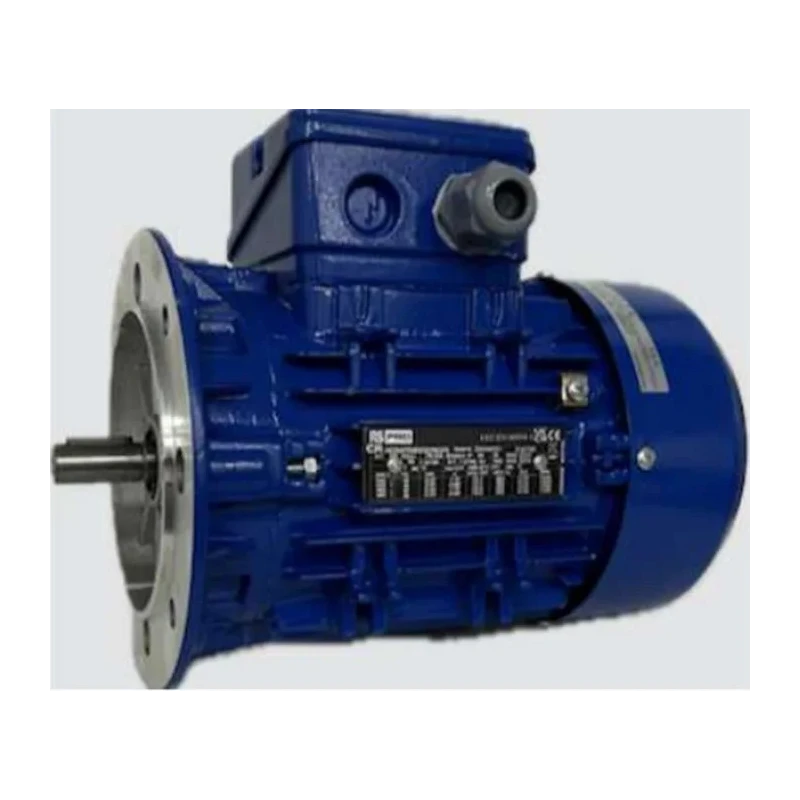

RS PRO 3 Phase Squirrel Cage Induction AC Motor 11 kW IE3 Efficiency 400V Flange Mount 4-Pole 1470rpm AAP160M4A 187-9895

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 3 Phase Squirrel Cage Induction AC Motor 11 kW IE3 Efficiency 400V Flange Mount 4-Pole 1470rpm AAP160M4A 187-9895

Name: RS PRO 3 Phase Squirrel Cage Induction AC Motor 11 kW IE3 Efficiency 400V Flange Mount 4-Pole 1470rpm AAP160M4A 187-9895
Brand: RS PRO
SKU: 158157



Category AC Motor Brand RS PRO Condition New

Specifications

Country of Origin	Turkey
Brand	RS PRO
Material	Aluminium
Length	561mm
Model	187-9895
Depth	561mm
Width	349.5mm
Mount Type	Flange
Current Rating	21.5A
Series	RS PRO
Power Rating	11kW
Sub Type	Squirrel Cage Motor
Output Speed	1470rpm
Shaft Diameter	42mm
Shaft Length	110mm
Efficiency Class	IE3
Number of Phases	3
Supply Voltage	400V
Bearing Type	Drive End
Number of Poles	4
Standards/Approvals	RoHS
Maximum Output Torque	71.6Nm

Key Features

This motor operates at 400V with a rated power of 11 kW.
Featuring IE3 efficiency class to ensure energy savings and high performance.
A 3 phase motor with four poles and rated speed of 1470 RPM.
Constructed from durable aluminium housing for lightweight and corrosion resistance.
Flange mounting type with shaft diameter of 42 mm and shaft length of 110 mm.
Equipped with bearing C3 shielding and two earthing terminals for safety.
Offers protection rating IP55 and meets RoHS standards.
Uses SKF, FAG, NSK, NTN bearings for quality and durability.

Product Description

RS PRO model 187-9895 is a high-quality 3 phase squirrel cage induction AC motor delivering 11 kW power at 400V supply voltage with an IE3 efficiency classification. It provides reliable performance with a 4-pole design running at 1470 rpm, ideal for varied industrial applications requiring robust and efficient electric motors.

This motor features an aluminium frame that offers both durability and resistance to corrosion while maintaining a lightweight profile for easier installation and maintenance. The flange mounting and shaft diameter of 42mm with length 110mm ensure easy compatibility and integration with a wide range of industrial machines.

Equipped with C3 shielded bearings from top manufacturers (SKF, FAG, NSK, NTN), and fitted with oil seals on both ends, this motor guarantees smooth operation and extended service life. It also includes two earthing terminals and conforms to RoHS standards, highlighting its safety and environmental compliance.

With an IP55 protection rating, it is suitable for industrial environments involving pumps, blowers, gearboxes, conveyor belts, and machine tools, ensuring excellent heat regulation and low maintenance. Built per IEC 60034 standards, it comes with reinforced bearing housing and inverter rated windings for improved performance and durability.

This motor operates at 400V with a rated power of 11 kW. Featuring IE3 efficiency class to ensure energy savings and high performance. A 3 phase motor with four poles and rated speed of 1470 RPM. Constructed from durable aluminium housing for lightweight and corrosion resistance.

Flange mounting type with shaft diameter of 42 mm and shaft length of 110 mm. Equipped with bearing C3 shielding and two earthing terminals for safety. Offers protection rating IP55 and meets RoHS standards. Uses SKF, FAG, NSK, NTN bearings for quality and durability.

Suitable for pumps, blowers, gearboxes, conveyor belts, and machine tools. Manufactured in Turkey with compliance to IEC 60034 standards.

RS PRO brand motors represent quality and reliability in electric motor solutions. Browse the RS PRO AC Motors category at EnvMart for more efficient and robust industrial motor options.
