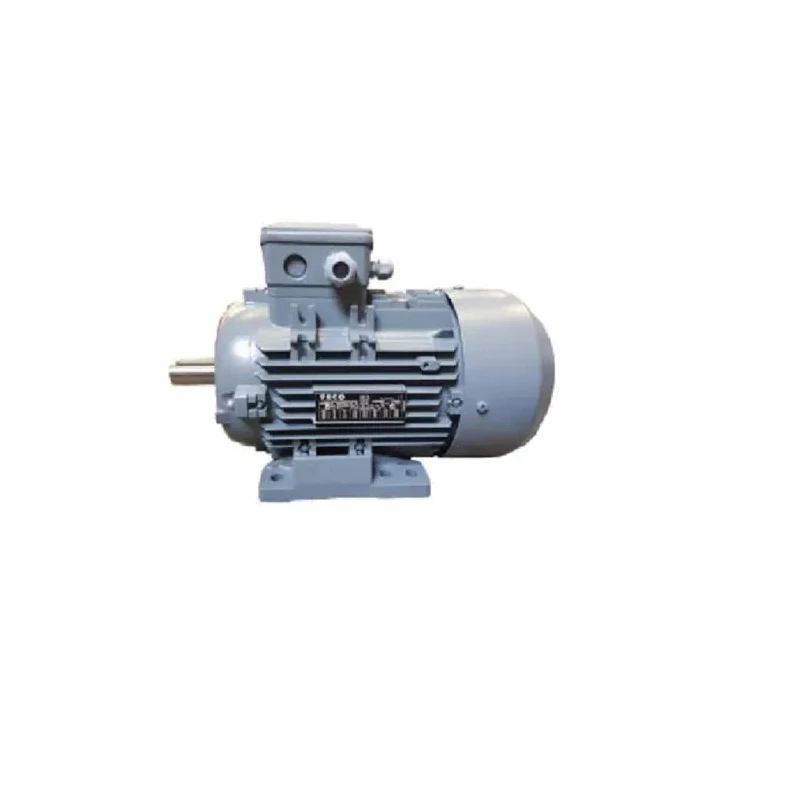

RS PRO 3 Phase Squirrel Cage Induction AC Motor 11 kW IE3 Efficiency 400V Foot Mounting 4 Pole 1470 RPM AAP160M4A 187-9894

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 3 Phase Squirrel Cage Induction AC Motor 11 kW IE3 Efficiency 400V Foot Mounting 4 Pole 1470 RPM AAP160M4A 187-9894

Name: RS PRO 3 Phase Squirrel Cage Induction AC Motor 11 kW IE3 Efficiency 400V Foot Mounting 4 Pole 1470 RPM AAP160M4A 187-9894
Brand: RS PRO
SKU: 158155



Category AC Motor Brand RS PRO Condition New

Specifications

Country of Origin	Turkey
Brand	RS PRO
Material	Aluminium
Length	553.5mm
Model	187-9894
Depth	398mm
Width	398mm
Mount Type	Foot
Current Rating	21.5A
Series	RS PRO
Power Rating	11kW
Sub Type	Squirrel Cage Motor
Output Speed	1470rpm
Shaft Diameter	42mm
Shaft Length	110mm
Efficiency Class	IE3
Number of Phases	3
Supply Voltage	400V
Bearing Type	Deep Groove
Number of Poles	4
Standards/Approvals	RoHS
Maximum Output Torque	71.6Nm

Key Features

The motor operates at an output speed of 1470 RPM with 4 poles.
Constructed with an aluminium housing for lightweight and corrosion resistance.
Equipped with deep groove bearings and oil seal fitted at both shaft ends.
Built to IEC 60034 standards ensuring quality and durability.
Features C3 bearing shielding, two earthing terminals, and inverter rated windings.
Suitable for industrial applications including pumps, blowers, conveyors, and gearboxes.
Foot mounting with shaft diameter of 42 mm and length of 110 mm for easy installation.
Designed for low maintenance and efficient heat regulation in demanding environments.

Product Description

RS PRO AAP160M4A 3 Phase Squirrel Cage Induction AC Motor delivers 11 kW of power with IE3 efficiency and operates on a 400V supply voltage. This 4-pole motor runs at 1470 RPM and features a foot mounting design, making installation straightforward for various industrial settings.

The motor's aluminium construction ensures a lightweight yet durable body with excellent resistance to corrosion. It incorporates deep groove bearings, C3 bearing shielding, and oil seal fitted at both shaft ends to maximize reliability and reduce maintenance needs.

Compliant with IEC 60034 standards, the motor is equipped with two earthing terminals and inverter rated windings (CT=2:1, VT=10:1) that cater to modern drive control applications. The shaft has a diameter of 42 mm and a length of 110 mm, suitable for mounting various accessories and ensuring compatibility with industrial equipment.

This robust motor is ideal for an array of industrial uses including pumps, blowers, fans, machine tools, conveyor belts, and gearboxes. Its low maintenance design and excellent heat regulation make it a cost-effective solution for continuous operation.

The motor frame ranges from sizes 63 to 160. It features SKF, FAG, NSK, or NTN bearings ensuring reliability under heavy loads. RAL7031 rustproof painting with a 40 micron minimum thickness enhances corrosion protection.

Oil seals fitted as standard at both ends protect internal components from contaminants. NDE shaft is drilled and tapped to facilitate easy mounting of accessories.

Manufactured in Turkey, this motor adheres to strict quality standards, providing a reliable and efficient performance suitable for industrial, manufacturing, HVAC, and water treatment applications.
