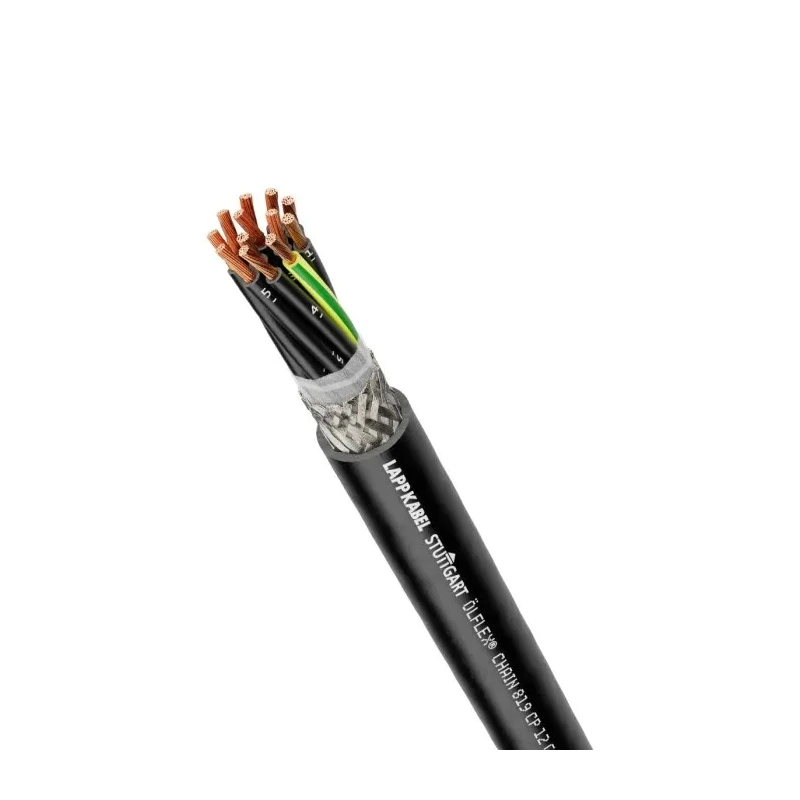

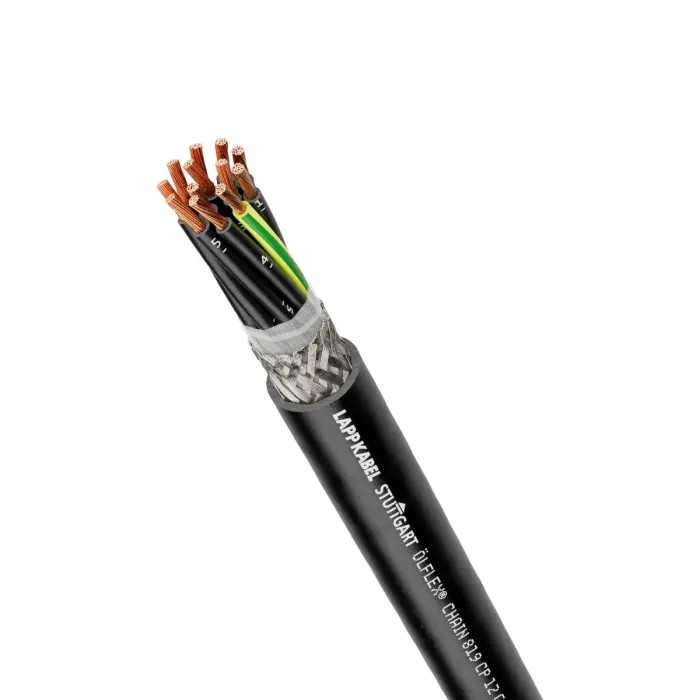

Lapp ÖLFLEX CHAIN 819 CP Screened Flexible Control Cable 12 Cores 16 AWG, 50 m, Black Polyurethane Sheath 1027935
Specifications
| Country of Origin | India |
|---|---|
| Brand | Lapp |
| Model | 1027935 |
| Cable Length | 50m |
| Series | ÖLFLEX CHAIN 819 CP |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 12 |
| Conductor Material | Bare Copper |
| Jacket Material | Polyurethane |
| Standards/Approvals | AWM Style 21576 (File No. E63634), AWM I A/B, II A/B (File No. E63634) |
| Jacket Colour | Black |
| American Wire Gauge | 16AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Core insulation | PVC |
Key Features
- The cable features a flexible, screened design suitable for power chain and moving machinery installations.
- Constructed with bare copper stranded conductors insulated with PVC for durability.
- Outer sheath is made from a robust, oil-resistant polyurethane special blend in black.
- High mechanical robustness and resistance to contact with mineral oils, acids, alkalis, and chemical media.
- Supports a maximum operating temperature of 80°C with compliance to AWM Style and UL standards.
- Ideal for EMC-sensitive environments and exposed wet or oily mechanical conditions.
- Compatible for use in control, measuring, and regulation circuits within industrial and production settings.
- Black cores are numbered in white according to DIN EN 50334 and VDE 0295, class 5.
Product Description
Lapp 1027935 ÖLFLEX CHAIN 819 CP screened flexible control cable is engineered with 12 cores of 16 AWG bare copper stranded conductors insulated with PVC. The cable length is 50 meters and it features a black polyurethane outer sheath designed for robust use in industrial environments.
This cable is specially constructed to deliver high flexibility and mechanical robustness required for power chain and moving machine parts. The oil-resistant polyurethane sheath offers excellent resistance to mineral oils, diluted acids, alkalis, and other chemical media commonly found in industrial operations.
The screened tinned copper braiding protects against electromagnetic interference, making it suitable for EMC-sensitive environments. The black cores are clearly numbered in white per DIN EN 50334 and VDE 0295, class 5 standards for easy identification.
Rated for a maximum operating temperature of 80°C, this cable conforms to AWM Style 21576 and UL/cUL certifications for safe and reliable operation in North America and internationally. The combination of PVC core insulation and the PU special blend sheath ensures durability in dry, damp, or wet conditions including oily areas within machinery and production lines.
Applications include wiring of machines, tools, control cabinets, electrical connections, and control and regulation circuits. Ideal for assembly lines, production lines, and automated movement in industrial and manufacturing facilities.
Flexible, screened design suitable for mechanical movement and power chains. Highly oil resistant and mechanically robust construction. UV resistant with low-adhesive surface properties. EMC compliant for use in sensitive electronic environments.
Durable polyurethane sheath with robust chemical resistance. Conforms to AWM Style and UL certifications. Suitable for indoor use and oily wet industrial settings. Black cores numbered in white for easy identification. Designed for control, measuring, and regulation circuit installations.
This Lapp ÖLFLEX CHAIN 819 CP Control Cable represents a premium industrial-grade solution for flexible control wiring requirements. Browse the Electronics & Electricals > Wires & Cables > Control Cable category for more specialized cables and industrial wiring products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this cable is 80°C.
This model features 12 cores.
It is constructed with bare copper stranded conductors insulated with PVC, and the outer sheath is made from a robust, oil-resistant polyurethane.
The cable length is 50 meters.
Yes, the screened design protects against electromagnetic interference, making it suitable for EMC-sensitive environments.
It complies with AWM Style 21576 and UL/cUL certifications.
The core insulation is made of PVC.
It is suitable for wiring machines, tools, control cabinets, and for control and regulation circuits in industrial settings.
The outer sheath is black in color.
The conductors are rated at 16 AWG.
Yes, it is designed for use in dry, damp, or wet conditions, including oily areas within machinery and production lines.
It is a flexible, screened control cable designed for power chain and moving machinery installations.
